China Famous Used Oil Recycling System with Vacuum Distillation Process

FOB Price:	16,700.00 - 167,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	60days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO.SGS
Voltage: 380V 50HZ
Usage: WASTE OIL
Model Number: WMR-B-30
Brand Name: WANMEI
Flow: 1~60TONS/DAY
Condition: New

Specifications

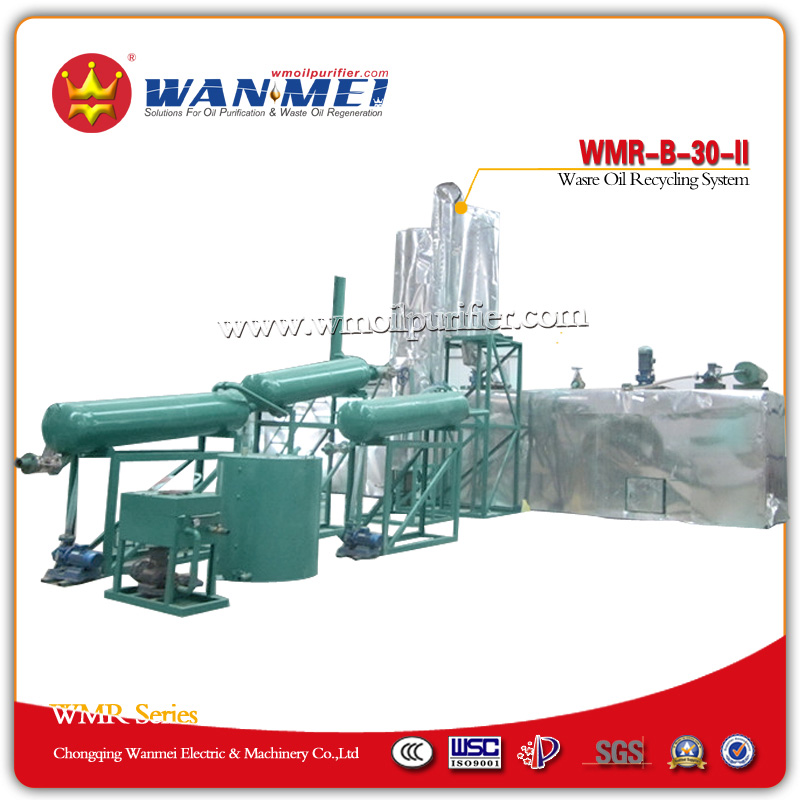

Used Oil Recycling System with Vacuum Distillation Process - WMR-B series

For used used oil recycling / waste oil recycling / waste oil regeneration / used oil regeneration / waste oil Reclamation and Oil Reclaim, oil treatment, oil purification, oil filter, oil filtering, oil conservation

Used Oil Recycling System with Vacuum Distillation Process - WMR-B series is able to change all kinds of waste and used lubricant oils into high-quality base oil as well as a small amount of gasoline and diesel under the function of vacuum distillation. After pre-treatment, the waste oil will be pumped into the distillation chamber. Then the oil is heated to the working temperature to get the base oil and the small amount of gasoline and diesel. After the waste oil finishing the complete reaction in the chamber, stop heating and remove the oil residues, Used Oil Recycling System with Vacuum Distillation Process - WMR-B series can be put in operation once more. The operation cost is very low and it only needs USD30 per ton to produce the high-quality base oil. Up to now, it's the most advanced technique in world wide.Used Oil Recycling System with Vacuum Distillation Process - WMR-B series specially suits the small-scale production and is also very environment friendly.

The Main Construction Of Equipment

1. Pre-treatment System: the waste oil will be pumped into distillation chamber after pre-treatment.

2. Distillation System: The waste oil will be heated till working temperature through the burning of fuel or gas. At the same time it has the stirring system and temperature protection system.

3. Condensation System: The gaseous hydrocarbon will be condensed into liquid base oil and gasoline.

4. Oil storage System: The base oil and gasoline from the condensation system will be stored here at first, and then it comes into oil storage tank.

5. Vacuum System: Satisfy the requirement of crafts.

6. Filtration System: It can rapidly eliminate the mechanical impurities from the base oil and gasoline and get the high –quality base oil and gasoline.

The Output of the Oil Recycling

Base oil: 85-87% (the index is equal to SN150-SN200)

Gasoline: 5%

Oil residue: 6-9%

The Characteristics and Advantages

1. Used Oil Recycling System with Vacuum Distillation Process - WMR-B series has a low cost of waste oil treatment. It only needs about USD25-30 per ton. The catalytic agent adopted is a kind of cheap and basic chemical material. It can be bought in world wide.

2. Simple operation: It only needs 1-2 workers to operate the equipment.

3. Environment friendly: This equipment is with whole closed structure. It won't release any gas which is harmful to human health or environment. The gelatin and asphalt-carbon oil will become oil sludge and can be used as asphalt or fuel.

4. High recycling efficiency: the recycling rates can be as Base oil 83-85%, gasoline 6-8%, oil residue 6-8%.

5. Used Oil Recycling System with Vacuum Distillation Process - WMR-B series is the most advanced technique in world wide. It specially suits the small-scale production.

Guarantee Performance Index

ITEM	UNIT	TECHNICAL PARAMETER
ITEM	UNIT	Medium Base Oil	Heavy Base Oil
Viscosity(40degrees Centigrade)	Mm2/S	16-32	28-72
Viscosity Index		Greater than or equal to 99	110
Appearance		Transparent	Transparent
Color Index	ASTMD1500	Less than or equal to 1	Less than or equal to 2
Kinematic Point	degrees Centigrade	-15	-10
Water Content	%w/m	Less than or equal to 0.05	Less than or equal to 0.05
Flash Point	degrees Centigrade	Greater than or equal to 180	Greater than or equal to 210
Dust Content	%w/w	0.005	0.005
Coke Residue	%w/w	Less than or equal to 0.13	Less than or equal to 0.13
Copper Corrosion		Qualified	Qualified
Acid Value	mgkoH/g	Less than or equal to 0.15	Less than or equal to 0.15

Models and Capacities

Model	WMR-B-5	WMR-B-10	WMR-B-20	WMR-B-30	WMR-B-50	WMR-B-60
Capacity	5 tons/day	10 tons/day	20 tons/day	30 tons/day	50 tons/day	60 tons/day
Note	1. We can expand the recycling capacity to maximum 100 tons per day
	2. Generally, we do not suggest our customers to regenerate waste tire oil for the low regeneration rate of that
	3. the used oil after the recycling process by acid washing process is forbidden to be regenerated again by WMR system because it will damage the system for corrosion

We warmly welcome customers to visit our factory. We have sample machine to demonstrate the performance of the waste oil recycling systems. Customers can also take their own waste oil sample to get recycled with our sample machine to witness and confirm the performance of our products.
