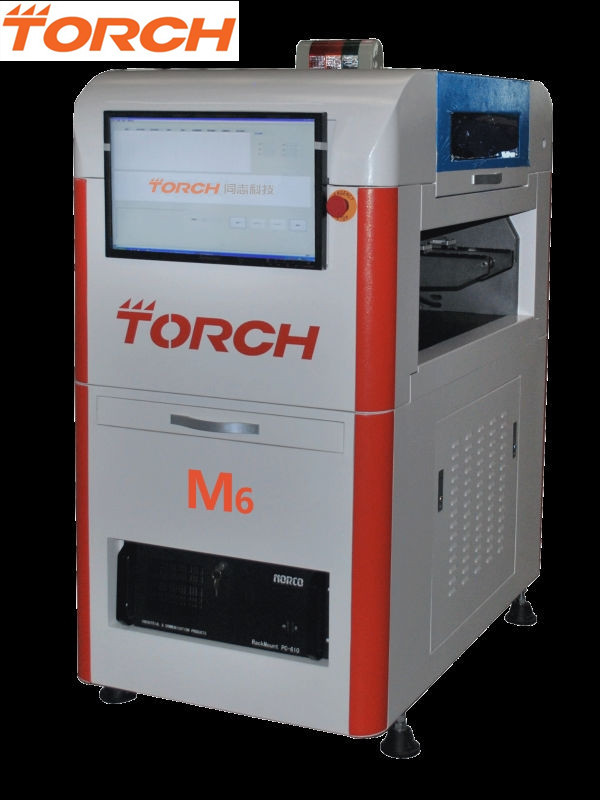

Small high speed mounter,smt pick and place machine:M6

Payment Terms:	L/C, T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	WOODEN CASE

Quick Details

Model Number: M6
Brand Name: Termway
Max mounting area: 600mm*350mm(option)
Z-axis maximum movement range: 20mm
Maximum speed (full visual): 6000-7500CPH
Maximum speed patch (non-visual): 9000-11000CPH
Alignment manner: Visual position
You can mount components: 0603-SOP24, above resistance-capacitance and various pieces of LED chip, while meeting the diode Transistor SOP SOT PLCC QFP, BGA and other chips mount

Specifications

M6 introduction:

1, What is M6? M6 is Mounter with 6 heads, mean six-head mounter.

2, M6 is a small high-speed placement machine

3, M6 can mount the min component 0603,the max IC of SOP24.

4, M6 can mount 60 kinds of components at most(just 8mm). M6 with option of tape electronic motor and rail shake motor.

universal PCB fixture can realize all kinds of special-shaped component mounting.

M6 unique design, can expend the PCB to 600*250-600*450mm the large-size PCB.no need to add more cost to purchase larger machine. M6 One machine can achieve such requirements

8, M6 with high speed 9000-11000CPH,first-class configuration,make sure high quality and reduces maintenance cost and. raise the mercantile rate of return.

Why do you choose M6:

1, actual mounting speed: 9000-11000CPH.Non-vision actual speed

2, full visual position mounting speed:6000-7500CPH.is all components full visual position mounting speed, not like other machine,just part component with visual.

3, M6 can mount large size PCB, don't need to add other machine. System to reduce your investment.

SMT industry this machine cost performance

5.Have granite integration platform.long time use do not lose the precision

6.Pay back period :6month

M6 Options

1,8mm, 12mm, 16mm, 24mm, 32mm automatic electric feeder
2, a variety of nozzle
3, industrial pump mute
4, UPS uninterrupted power supply
5. other standard camera lens and power supply

6.off line programming system or off line programming service

7. the shortest path optimization system

8.automatic correction system

T6S technical parameters

1	A number of heads	6
2	Max mounting area	350mm×200mm 350mm×350mm(option) 600mm×350mm(option)
3	Z-axismaximum movement range	20mm
4	Maximumspeed (full visual)	6000-7500CPH
5	Maximum speed patch (non-visual)	9000-11000CPH
6	XY axis resolution Accuracy	±0.01mm
7	Repeat placement accuracy	±0.05mm
8	Alignment manner	Visual position
9	You can mount components	0603-SOP24, above resistance-capacitance and various pieces of LED chip, while meeting the diode Transistor SOP SOT PLCC QFP, BGA and other chips mount
10	Programming method	Universal Automatic data / Import image study / keyboard input
11	Kinds ofcomponent size	Can put 60kinds of CF feeders
12	Number of feeders	1.MAX60 kinds of CF feeders; 2.MAX30 kinds of CF feeders 3.MAX18 kinds GFTA-08 feedesr;
13	operating system	WINDOWS XP, WIN7
14	Compressed air	80psi(0.5Mpa, Gas flow≥120L/Min
15	power	220V,50Hz, 1.5KW
16	weight	500kg
17	Overall size	1350(L)×930(W)×1300(H)

Best suitable products:

Power strip . with the power to absorb dome light. Led bulb.remote control board,and other small household appliances
