HWS-700TM Hydraulic Wall Sawing

Supply Ability:	1 Set(s) per Week
Shipping:	within 15 days
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	wooden box

Quick Details

Type: Pocket Saw
Material: Diamond
Brand Name: OUKAI
cutting spee: 0
line spee: 0
Model Number: HWS-700TM
Type: Hydraulic Cutting Tools

Specifications

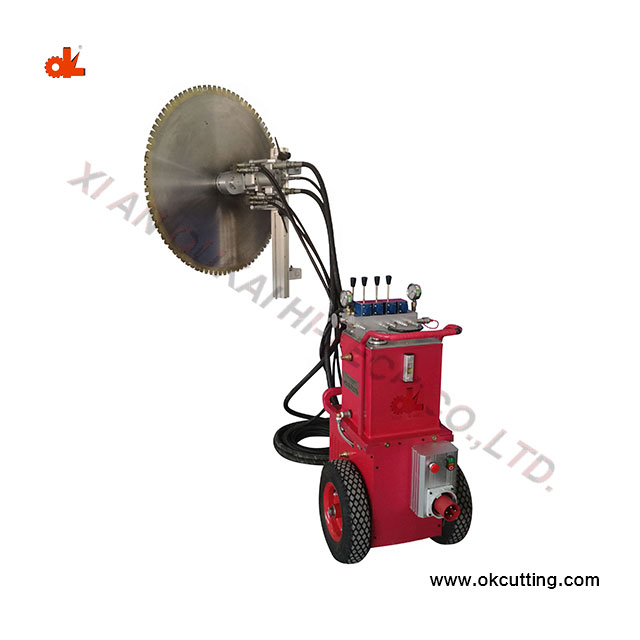

HWS-700TM hydraulic wall saw is very powerful and designed to make your work more efficient. Use is a very powerful wall saws for cutting reinforced concrete, brick and other building materials, up to 950 mm thickness. It can be used for all kinds of openings and sawing including stair, bevel and flush cutting.

Standard configuration

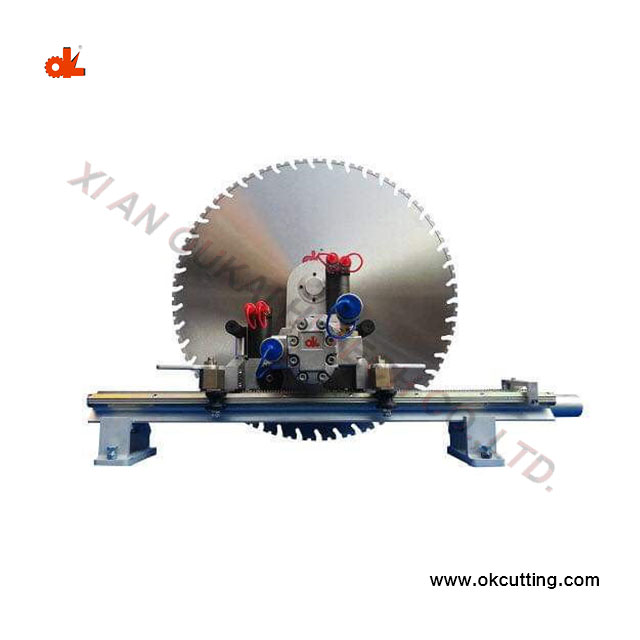

sawing head 700TM 1pcs

hydraulic power unit 1pcs

hydraulic hoses 7pcs

rail 2m 1pcs

rail 1m 1pcs

mounting brackets for rail 4pcs

topper for rails end 4pcs

blade guard 850mm 1pcs

Technical details

		HWS 700TM
Max cutting blade	mm	2000
Cutting depth	mm	950
bore	mm	60
motor		Water cooled motor

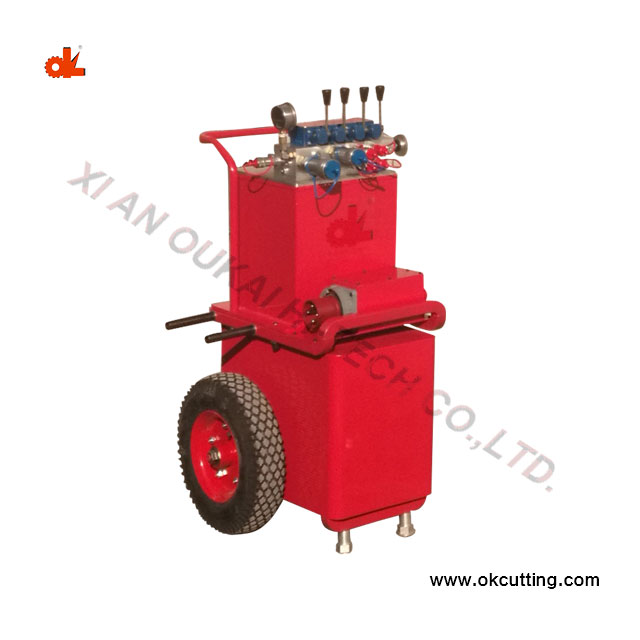

Hydraulic power unit		HWS-700TM
		30 kW, 200bar, 0-100 l/min,
		130kg 1100mm500mm52mm
Voltage:		380V-420V 50HZ-60HZ

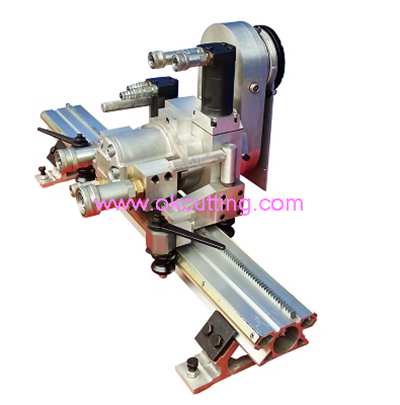

Sawing head		29kg 400mm420mm400mm
Speed of blade	rpm	450/1000/1400
