Sunflower Commerce Co., Ltd.
China Manufacturer with main products: Fiber Cable, LAN Cable, Communication Cable, Telecommunication Accessories, Coaxial Cable, Fiber Optic Accessories Patch Panel, Network... |
19th
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 305m per roll or customized |
Quick Details
- Type: Cat 5e
- Model Number: DTS-2002A
- Brand Name: Accept OEM
- Packing: Wooden Drum
- Length: 305m/roll
Specifications

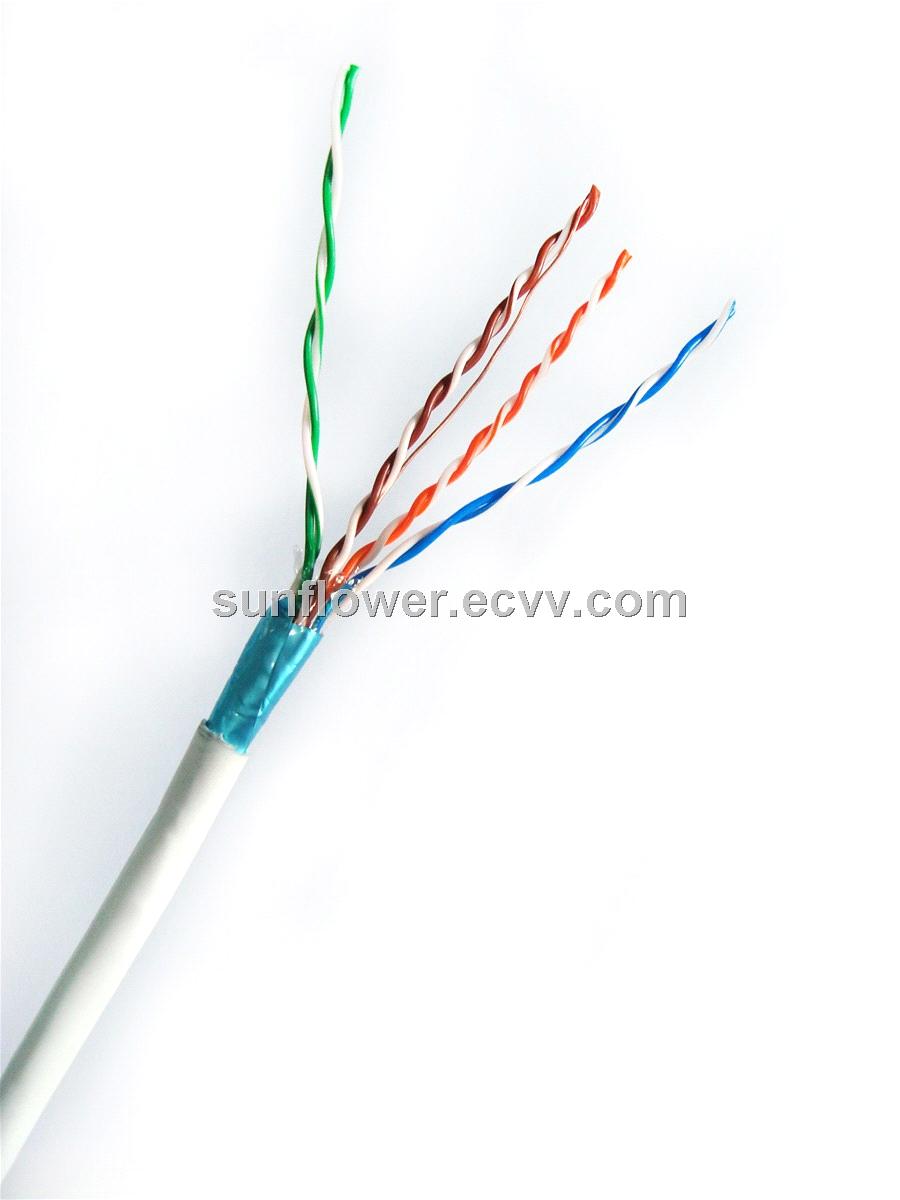

Cat5e FTP lan cable
Basic informations:
Name: Cat5e FTP LAN cable
Model : DTS-2002A
Material: CCA or Bare Copper
PE: Polyethylene
PVC: Polyvinyl-Chloride
Jacket Color : Yellow , Blue , Gray, Dark gray , black, white or customized
Size: 100m, 150m, 200m, 300m, 305m, 500m, 1000m or customized (Standard : 305m/roll)
PS: Cable code& designation:
HS-- LAN Cable
Y--PE insulation
V--PVC jacket
P--Shield
5--Transmission frequency up to 100 MHz
UTP--Without shield
FTP--Aluminum foil shield
SFTP--Aluminum foil/ copper braid shield
More details :
All cables meet or exceed the requirement proposed by TIA /EIA 568 B . 2 , ISO/IEC 11801 Category 5e .
Application : Gigabit Ethernet , 155 Mbps ATM .
*Construction: 24AWG 4*2*0.51mm Cu+1.02mmPE+Al/pet foiled+1.16mm steel messenger+PVC
* Color: different color is available
*PE: Polyethylene
*PVC: Polyvinyl-Chloride
twisted pairs are brightly colored and distinguished at a glance .
Performance characterized to 350 MHz .
Ultra smooth jacket makes this cable easy to pull in tight spaces .
UL-Certified .
Foil shield , drain wire , Use for permanent installations

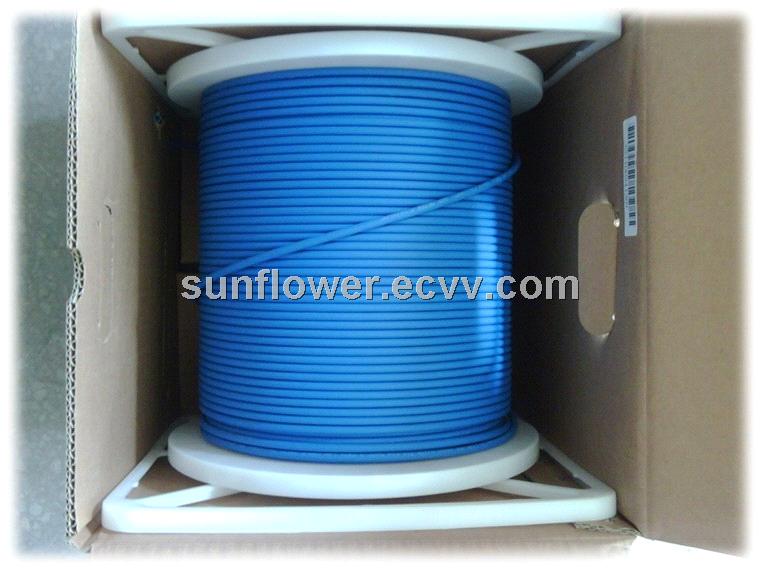

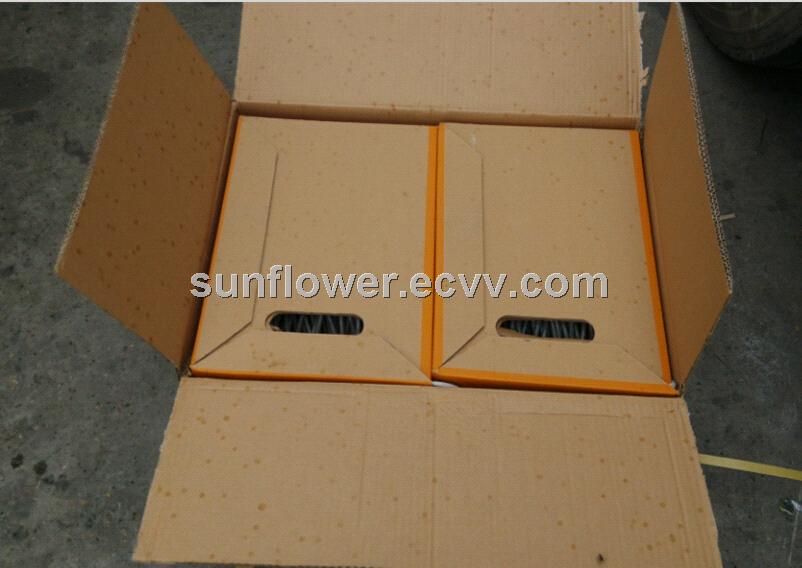

305 meters , packaged in full boxes
Component: 0.511 mm solid bare copper (24 AWG), PE insulation, twisted, 4 pairs. FR / PVC or LSOH jacket (solid)* Standard: YD / T10191019-2001 / tec 11801: ANSI / ETA / TIA - 568B02 - 2001
24 AWG solid bare copper, solid PE insulation, twisted pairs, PVC or LSZH jacket.

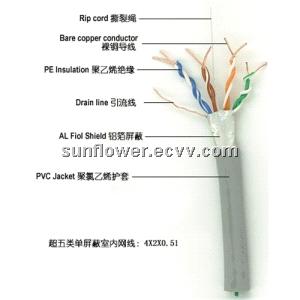

Cable Constructions:
|
Designation |
Pairs& AWG size(24AWG) |
Conductor (mm) |
Insulation (mm) |
Cable Diameter (mm) |
Cable Weight (kg/km) |
|
Cat5e UTP , PVC |
4x2x0.5 |
0.51 |
0.91 |
5.1 |
28 |
|
25x2x0.5 |
0.51 |
0.91 |
11.5 |
170 |
|
|
Cat5e UTP, LSZH |
4x2x0.5 |
0.51 |
0.91 |
5.1 |
30 |
|
25x2x0.5 |
0.51 |
0.91 |
11.5 |
174 |
|
|
Cat5e FTP, PVC |
4x2x0.5 |
0.53 |
1.03 |
6.2 |
40 |
|
Cat5e SFTP, PVC |
4x2x0.5 |
0.54 |
1.07 |
6.8 |
66 |
|
Cat5e FTP, LSZH |
4x2x0.5 |
0.53 |
1.03 |
6.2 |
42 |
|
Cat5e SFTP, LSZH |
4x2x0.5 |
0.54 |
1.07 |
6.8 |
68 |
Electrical Characteristics:
|
Conductor DC resistance (? /100m) |
DC resistance unbalanc (%) |
Mutual Capacitance (pF/100m) |
Capacitance unbalance (pF/100m) |
|
≤9.5 |
≤2.5 |
≤5600 |
≤330 |
|
MHz |
Impedance (Ohm) |
Attenuation (dB/100m) |
SRL (dB) |
NEXT (dB/100m) |
ELFEXT (dB/100m) |
Time Delay (ns/100m) |
Delay Skew (ns/100m) |
|
1 |
100±15 |
2.0 |
23 |
62 |
61 |
570 |
45 |
|
4 |
100±15 |
4.1 |
23 |
53 |
49 |
552 |
45 |
|
8 |
100±15 |
5.8 |
23 |
49 |
43 |
547 |
45 |
|
10 |
100±15 |
6.5 |
23 |
47 |
41 |
545 |
45 |
|
16 |
100±15 |
8.2 |
23 |
44 |
37 |
543 |
45 |
|
20 |
100±15 |
9.3 |
23 |
43 |
35 |
542 |
45 |
|
25 |
100±15 |
10.4 |
22 |
41 |
33 |
541 |
45 |
|
31.25 |
100±15 |
11.7 |
21 |
40 |
31 |
540 |
45 |
|
62.5 |
100±15 |
17.0 |
18 |
35 |
25 |
539 |
45 |
|
100 |
100±15 |
22.0 |
16 |
32 |
21 |
538 |
45 |
