Home >Products Catalog > Lan Cable > Cat5e SFTP LAN Cable

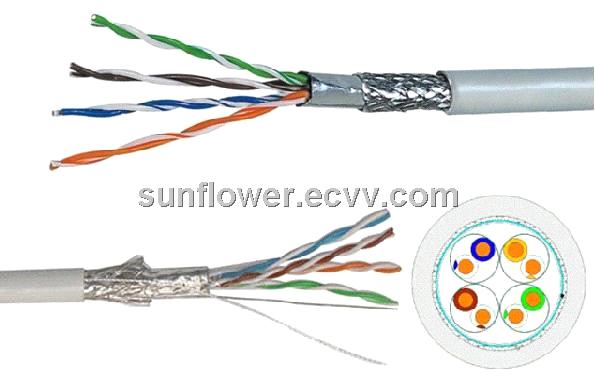

Cat5e SFTP LAN Cable

Shipping:	By Sea
Payment Terms:	T/T, D/P, Western Union, MoneyGram

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	305m per roll or customized

Quick Details

Type: Cat 5e
Model Number: DTS-2003A
Brand Name: Accept OEM
Packing: Wooden Drum
Length: 305m/roll

Specifications

Cat5e SFTP lan cable

Basic informations:

Name: Cat5e SFTP LAN cable

Model : DTS-2003A

Material: CCA or Bare Copper

PE: Polyethylene

PVC: Polyvinyl-Chloride

Jacket Color : Yellow , Blue , Gray, Dark gray , black, white or customized

Size: 100m, 150m, 200m, 300m, 305m, 500m, 1000m or customized (Standard : 305m/roll)

PS: Cable code& designation:

HS-- LAN Cable

Y--PE insulation

V--PVC jacket

Z--Retardant low smoke zero halogen polyolefine jacket(LSZH)

P--Shield

5--Transmission frequency up to 100 MHz

UTP--Without shield

FTP--Aluminum foil shield

SFTP--Aluminum foil/ copper braid shield

More Details:

Conductor: CU 0.51mm+-0.01mm (CCAG, CCA, CU+CCA, CU+CCS, CCA+CCS, 0.5mm, 0.48mm, 0.45mm, 0.44mm, 0.4mm, 0.38mm)

HDPE insulation: 0.90mm.

Shield: Crystal + Al. Foil.

FR/PVC Grey JACKET. 5.3-5.5mm

Length: 305m/box, 1000ft/roll.

Origin: China.

Cat5 series can be used for network cabling, ADSL net, etc. Normal network cable requirements.

IBMACS CCAG series can work at 200mtr. Length. 100mtr support 100mbps. / s. 90mtr pass FLUKE-4300 test. CCAG C series can support 1000mbps at 90mtr.

CU can work at 150mtr. Length, 10-100 mbps.

CU+CCS, CCA+CCS can work at 100-120mtr. 10-100 mbps.

Datasai network factory are professional in producing wiring products, such as cat6, cat5e, cat5 cables, utp, stp, ftp, sftp , outdoor water-proof cable, outdoor water-proof shielded cable, telecable, multipair cable, patch cords, coaxial cable etc., Expecting co-operate with various dealers, engineering's, trading companies etc.

We go in for a supplier for clients with steady-going quality and workable price. OEM orders are acceptable.

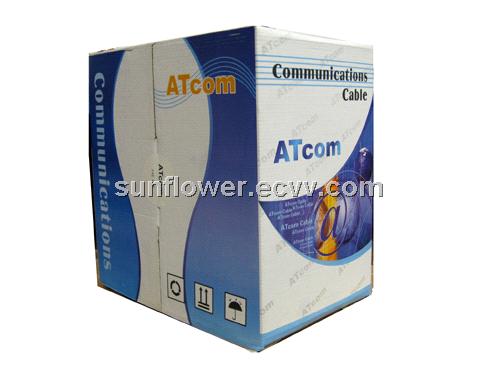

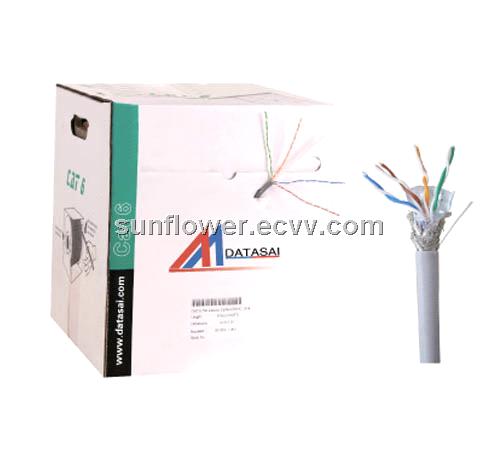

Color box size: 35*35*22

Outer carton size: 37*37*46

24 AWG solid bare copper, solid PE insulation, twisted pairs, PVC or LSZH jacket.

Cable Constructions:

Designation

Pairs& AWG size(24AWG)

Conductor

(mm)

Insulation

(mm)

Cable Diameter

(mm)

Cable Weight

(kg/km)

Cat5e UTP , PVC

4x2x0.5

0.51

0.91

5.1

28

25x2x0.5

0.51

0.91

11.5

170

Cat5e UTP, LSZH

4x2x0.5

0.51

0.91

5.1

30

25x2x0.5

0.51

0.91

11.5

174

Cat5e FTP, PVC

4x2x0.5

0.53

1.03

6.2

40

Cat5e SFTP, PVC

4x2x0.5

0.54

1.07

6.8

66

Cat5e FTP, LSZH

4x2x0.5

0.53

1.03

6.2

42

Cat5e SFTP, LSZH

4x2x0.5

0.54

1.07

6.8

68

Conductor DC resistance

(? /100m)

DC resistance unbalanc

(%)

Mutual Capacitance

(pF/100m)

Capacitance unbalance

(pF/100m)

≤9.5

≤2.5

≤5600

≤330

Electrical Characteristics:

MHz

Impedance

(Ohm)

Attenuation

(dB/100m)

SRL

(dB)

NEXT

(dB/100m)

ELFEXT

(dB/100m)

Time Delay

(ns/100m)

Delay Skew

(ns/100m)

1

100±15

2.0

23

62

61

570

45

4

100±15

4.1

23

53

49

552

45

8

100±15

5.8

23

49

43

547

45

10

100±15

6.5

23

47

41

545

45

16

100±15

8.2

23

44

37

543

45

20

100±15

9.3

23

43

35

542

45

25

100±15

10.4

22

41

33

541

45

31.25

100±15

11.7

21

40

31

540

45

62.5

100±15

17.0

18

35

25

539

45

100

100±15

22.0

16

32

21

538

45
