Sunflower Commerce Co., Ltd.
China Manufacturer with main products: Fiber Cable, LAN Cable, Communication Cable, Telecommunication Accessories, Coaxial Cable, Fiber Optic Accessories Patch Panel, Network... |
19th
Cat6 UTP LAN Cable
| Supply Ability: | 5,000 Roll/Rolls per Week |
|---|---|
| Shipping: | 3 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, EASY CASH,C.J,JOHN PAUL |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 305m/roll or customized |
Quick Details
- Type: Cat 6
- Model Number: DTS-2001B
- Brand Name: Accept OEM
- Packing: Wooden Drum
Specifications

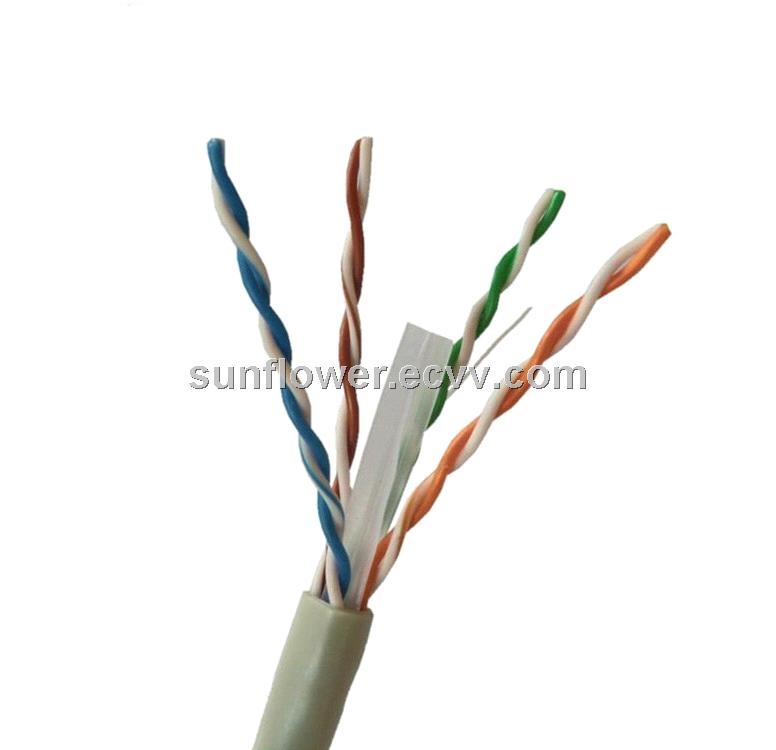

Cat6 UTP lan cable
Basic informations:
Name: Cat6 UTP LAN cable
Model : DTS-2001B
Material: CCA or Bare Copper
PE: Polyethylene
PVC: Polyvinyl-Chloride
Jacket Color : Yellow , Blue , Gray, Dark gray , black, white or customized
Size: 100m, 150m, 200m, 300m, 305m, 500m, 1000m or customized (Standard : 305m/roll)
PS: Cable code& designation:
HS-- LAN Cable
Y--PE insulation
V--PVC jacket
Z--Retardant low smoke zero halogen polyolefine jacket(LSZH)
P--Shield
6--Transmission frequency up to 250 MHz
UTP--Without shield
FTP--Aluminum foil shield
SFTP--Aluminum foil/ copper braid shield
More Details:
All cables meet or exceed the requirement proposed by TIA /EIA 568 B . 2 , ISO/IEC 11801 Category 6 .
Application : Broadband Video , Gigabit Ethernet , fast Ethernet.
*Construction: 23AWG 4*2*0.57mm Cu+1.02mm PE+cross separator+6.3mm PVC
* Color: different color is available
*PE: Polyethylene
*PVC: Polyvinyl-Chloride
twisted pairs are brightly colored and distinguished at a glance .
the cross frameworks are stripped to match corresponding color pairs .
Ultra smooth jacket makes this cable easy to pull in tight spaces .
UL-Certified
Performance characterized to 600 MHz .

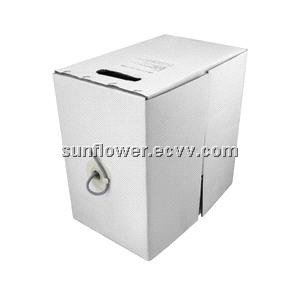

305 meters , packaged in full boxes.
23AWG solid bare copper, solid PE insulation, twisted pairs, PVC or LSZH jacket.

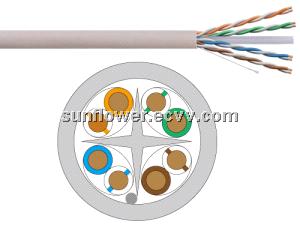

Cable Constructions:
|
Designation |
Pair& AWG size |
Conductor (mm) |
Insulation (mm) |
Cable Diameter (mm) |
Cable Weight (kg/km) |
|
Cat6 UTP PVC |
4x2x23AWG |
0.570 |
1.02 |
6.1 |
42 |
|
Cat6 UTP, LSZH |
4x2x23AWG |
0.570 |
1.02 |
6.1 |
44 |
|
Cat6 FTP, PVC |
4x2x23AWG |
0.585 |
1.15 |
7.2 |
46 |
|
Cat6 SFTP, PVC |
4x2x23AWG |
0.585 |
1.18 |
8.0 |
70 |
|
Cat6 FTP, LSZH |
4x2x23AWG |
0.585 |
1.15 |
7.2 |
48 |
|
Cat6 SFTP, LSZH |
4x2x23AWG |
0.585 |
1.18 |
8.0 |
73 |
Electrical Characteristics:
|
Conductor DC resistance (? /100m) |
DC resistance unbalance (%) |
Mutual Capacitance (pF/100m) |
Capacitance Unbalance (pF/100m) |
|
≤7.32 |
≤2.5 |
≤5600 |
≤330 |
|
MHz |
Impedance (Ohm) |
Attenuation (dB/100m) |
RL (dB) |
NEXT (dB/100m) |
PS-NEXT (dB/100m) |
ELFEXT (dB/100m) |
PS-ELFEXT (dB/100m) |
Delay (ns/100m) |
Skew (ns/100m) |
|
1 |
100±15 |
1.8 |
20 |
74 |
72 |
68 |
65 |
570 |
45 |
|
4 |
100±15 |
3.7 |
22 |
65 |
63 |
56 |
53 |
552 |
45 |
|
8 |
100±15 |
5.3 |
23 |
61 |
59 |
50 |
47 |
547 |
45 |
|
10 |
100±15 |
5.9 |
23 |
59 |
57 |
48 |
45 |
545 |
45 |
|
16 |
100±15 |
7.5 |
25 |
56 |
54 |
44 |
41 |
543 |
45 |
|
20 |
100±15 |
8.4 |
25 |
55 |
53 |
42 |
39 |
542 |
45 |
|
25 |
100±15 |
9.5 |
24 |
53 |
51 |
40 |
37 |
541 |
45 |
|
31.25 |
100±15 |
10.6 |
24 |
52 |
50 |
38 |
35 |
540 |
45 |
|
62.5 |
100±15 |
15.4 |
22 |
47 |
45 |
32 |
29 |
539 |
45 |
|
100 |
100±15 |
19.8 |
20 |
44 |
42 |
28 |
25 |
538 |
45 |
|
250 |
100±15 |
32.8 |
17 |
38 |
36 |
20 |
17 |
536 |
45 |
