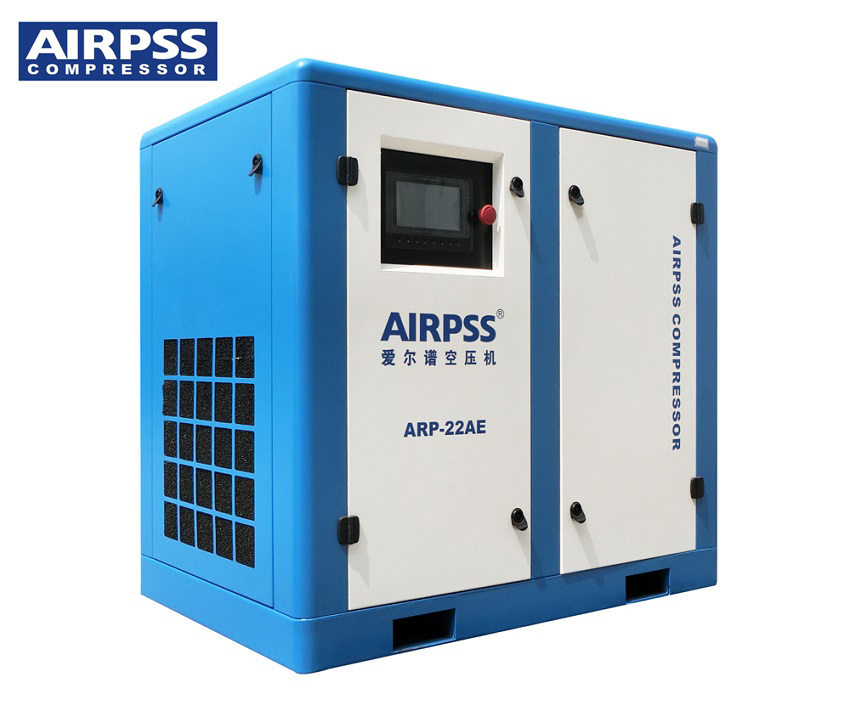

Airpss 7.5-250kw rotary screw air compressor Manufacturer

Specifications

1. ARP-7A Screw Compressor Technical Parameters



   	Item		Unit	Parameter
   1	Air flow/rated discharge pressure		(m3/min)/ MPa	1.2/0.7
   				1.1/0.8
   				0.95/1.0
   				0.8/1.2
   2	Environment temperature		℃	-5~+45
   3	Cooling method			Air cooling
   4	Discharge temperature		℃	≤environment temperature +15
   5	Oil volume		L	6
   6	Drive mode			Belt driven
   7	air flow control			ON-OFF automatic adjustment
   8	Oil content		ppm	≤3
   9	Noise		dB(A)	63±2
   10	Lubricating oil			AIRPSS customized
   11	Safety valve rated pressure		MPa	Rated working pressure x1.2
   12	Motor	Power	kW	7.5
   		Rotate speed	rpm	2905
   		Starting mode		star-delta
   		Voltage/frequency	V/Hz	380/50
   		Protection class/Insulation level		IP54,F
   13	Fan	Power	kW	0.12
   		Voltage/frequency	V/Hz	380/50
   		Rotate speed	rpm	1450
   		Cooling Air volume	m3/min	21
   14	Dimension		mm	890×630×920
   15	Weight		kg	240
   16	Outlet pipe diameter		in	G 3/4''






Note:

A represents air-cooling type, W represents water-cooling type;

Working environment temperature: - 5 °C ~ 45 °C;

The exhaust temperature is less than environment temperature about + 10 °C ~ 15 °C.

Drive mode: belt driven;

Start mode: direct start under 11KW, and Y-Δ start above 11KW;

Work power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;

F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853).

When our products improve, material may change without notice!

Accept customer's special request type, and less than 1.5 Map models orders.

1.Q:Are you a factory or trading company?
A: We are a factory,professional manufacturer for 12 years..

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shanghai, China.You can fly to Shanghai airport directly.

  All our clients, from China or Oversea, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.

4.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008  authentication.

Advantages of AIRPSS COMPRESSOR

1. Professional manufacturer for 12 years in air compressor industry.

2. Original Germany /ALUP air end, larger air delivery, lower noise.

3. AIRPSS Screw air compressor Pass ISO9001 Quality Certification and ISO14001 Certificate

4. One of 5 biggest variable speed screw compressor manufactures in China

5. Complete before-on-after sales service

6. Immediate reply or solution by email or call
7. Special oil gas separator with patents

8. High efficiency motor, up to 95%

Our service of the screw air compressor

Packing: All of our export machines always use standard wooden case packing.

Service:

1) Reply you inquiry in 24 working hours
2) Experienced staffs answer all your questions in fluent English
3) Customized design is available. OEM&ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor and big regular customers.

Overseas Agents Wanted!!!!!! For AIRPSS Screw Air Compressor
welcome agent,dealer and distributor make cooperation with AIRPSS company!
Introduction: We supply rotary screw air compressor.
Agent Requirements:
1) At least one year experience of air compressor industry.
2) Capability of establishing sales channels, distribution or logistics.
3) Committed to providing customer service that makes both internal and external customers feel welcome, important, and appreciated. Agents Required for the Following Countries: Thailand,Vietnam,Pakistan,Indian,Brazil,South Africa,Turkey,Australia,Russia and so on!
Introduction: Shanghai AIRPSS is specialized in the R&D and production of screw air compressor and air purification equipment through the introduction of Germany advanced technology. 2. Our compressors mainly include: dc series direct driven screw compressor, belt driven screw compressor, variable frequency screw compressor, PM vsd screw compressor and combined screw compressor with air tank.
Agent Requirements: sales AIRPSS brand screw compressor and make maintenance service!
Agents Required for the Following Countries: all the world
