Home >Products Catalog > Wood working machine > Wood Debarker for sale Peeler of trees Debarking machine Wood Peeler machine

Wood Debarker for sale Peeler of trees Debarking machine Wood Peeler machine

Supply Ability:	10 Set/Sets per Week
Shipping:	qingdao
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE ISO
Weight: 4t
Dimension(L*W*H): different
Power(W): 11*2kw
Voltage: 220V
Model Number: YHWB-6
Brand Name: Yinhao
Wood Length Range: 6-9m
Wood Diameter Range: 1310mm
Condition: New
Length: 6300mm
Height: 1550mm

Specifications

Peeler of trees/wood debarker/debarking machine

Specification

1.tree bark peeling machine 2.model complete 3.low price

Vertical wood/tree/log debarker/ Low price wood log debarker/wood debarking machine

Introduction:

The machine can peel wood,also known as wood peeling machine, belonging to one of wood working machinery products.

a.Using four-edge knife, easy to use and low cost.

b.Knife plate voltage controlled by the hydraulic control,advanced structure,reliable performance.

c.Feed part adopt stepless speed.It has good peeling effect on the cold wood,curved wood,eucalyptus,oak,elm and other tree species has a good hard.

d.Peeling the net high productivity, little injury for the wood .

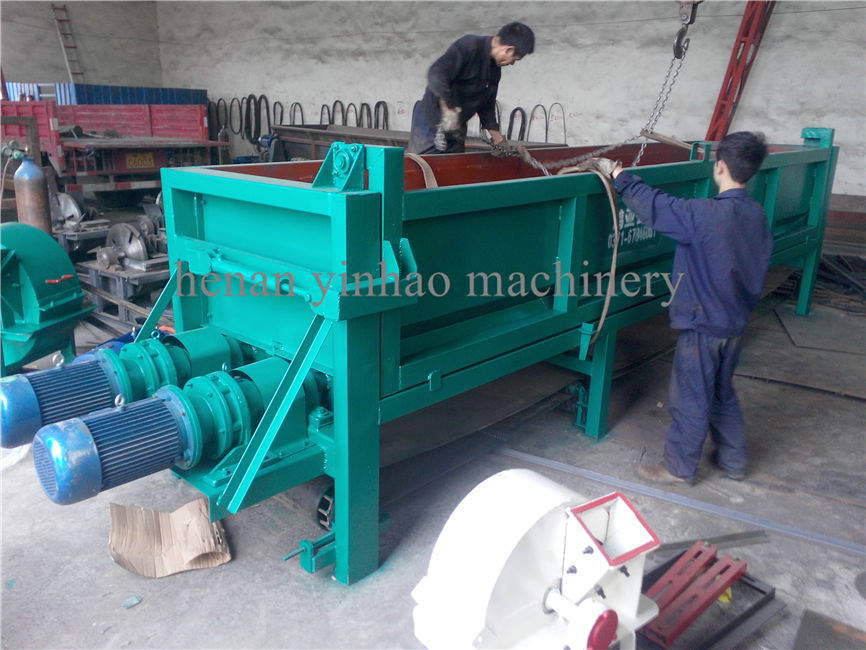

Roller type tree peeling machine

Products details:

This machine is the rotor teeth with stripping produced a unique force, so that wood in the hopper tank plate section of a recurring cycle of movement, but also around its own axis to do wood turning motion segment and irregular beating.To this paragraph with wooden teeth, wood and wood paragraph paragraph wood and keep the friction between the storage tank, impact, compression, fast bark are separated, to achieve effective peeling effect

The main technical parameters:

Single-roller:

Model	YHWB-6	YHWB-9	YHWB-12
Capacity(t/h)	5-10	10-15	15-25
Power(kw)	11*2	15*2	20*2
Length(mm)	6300	9000	12600
Width(mm)	1310	1500	1500
Height(mm)	1550	1700	1700
Weight(t)	4	5	8.5

DOUBLE-ROLLER:

Model	YHWB-6	YHWB-9	YHWB-12
Capacity(t/h)	7-15	15-25	25-30
Power(kw)	7.5*2	7.5*2	7.5*4
Length(mm)	6300	9000	12600
Width(mm)	1310	1500	1500
Height(mm)	1550	1700	1650
Weight(t)	4.5	6	9
