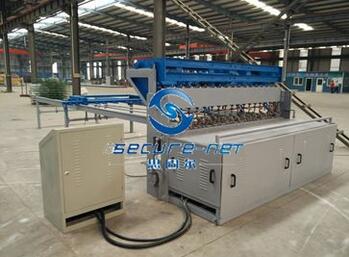

Construction Panel Mesh Fence Welding Machine
| FOB Price: | 35,000.00 - 85,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Month |
| Shipping: | 35days after received the deposit |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | platic bags and wooden boxes |
Quick Details
- Type: Welding Wire Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001:2008
- Weight: 7T
- Dimensions: 10x26x2
- Rated Capacity: 380V 50HZ
- Voltage: 380V 50HZ
- Usage: Wire Mesh panel for highway,railway,garden,airpot and prisons etc.
- Model Number: SK-2014-3000
- Brand Name: SECURE-NETT
- Condition: New
- Welding diameter: 2.5-5.0mm
- Welding aperture: 50-300MM
- Welding width: 2500MM
- Welding spot: 48
- Power supply: AC380 50HZ
- Rate power: 6x100KVA
- Welding speed: 45times/min
- Overall dimension: 9x3.2x1.8m
- Used: fence,building,airport fence, garden fence,highway fence
- HS code: 8515809090
Specifications
Glad to meet you here, we major in wire mesh machines for many years, also passed ISO9001:2008. --Hebei Secure-net Fence Facility Co., Ltd.

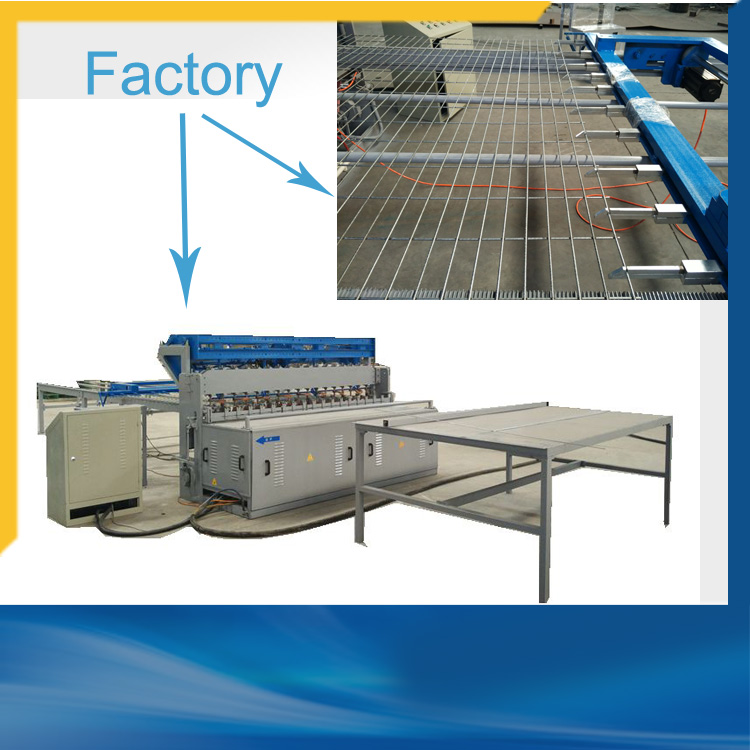

Fence wire mesh welding machine Hebei
This equipment adopts synchronous control technology, separate-phase welding and welding time is composed of digital programming of PLC system . There are two kinds of tablet PC input panel, One kind is touch panel , another is Keyboard . The operation is more intelligent and rationalization. The machine can press the panel tightly once , and weld by several times .
On the same panel, this machine can weld 30 kinds of different size of meshs between weft and weft. That is the biggest advantages of this machine.
The machine adopts new type of high efficient welding transformer , greatly expand the scope of welding diameters. (This fully automatic wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
1. Cross wire feeding way: drop from cross wire hopper automatically, position of drop wire is accurately.
2.. Mesh panel pulling way: adopt the serve motor, pull the panel back and forth , pneumatic lock the cross wire, ensure position is accurate.
--------------------------------------------------------
Parameter:
| Welding Wire Diameter | 2.5-5.0mm | Line & Cross Wire | Straight Cut Wire |
| Welding Aperture | 50x50-300x300mm | Power Supply | AC380V 50HZ |
| Welding Width | 2500mm | Rated Power | 6X100KVA |
| Welding Speed | 45 times/min | Machine Weight | 3.5T |
| Welding Spot | 48 | Maximum Size | 9x3.2x1.8m |
--------------------------------------------------------
Application Examples:
