Home >Products Catalog > 50W LED Post Top Retrofit

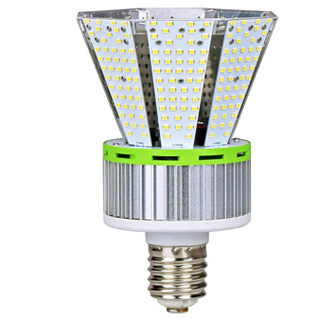

50W LED Post Top Retrofit

Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Mini Light Source OLS-120

Price:

Min. Order:1 Piece
T5 Fixture

Price:

Min. Order:500 Pieces
LED Glass Shelf Light for 8mm Glass

Price:1.52-1.55 USD/Piece

Min. Order:300 Pieces
MBJN explosion-proof sealing daub

Price:

Min. Order:100 Pieces

Product Details

Export Markets:	North America, South America

Quick Details

Model Number: YL-50W
Brand Name: ledreit

Specifications

Beam angle:360 degrees
Fin aluminum heat dissipation system(PATENT design)
Universal AC input / Full range(UP to 295VAC)
Protections: Short circuit / Over current/ Over temperature(Reduce the current)
Wide colour availability in degrees Kelvin(K),2700-6700K
It's major to replace the CFL with screwed lamp base directly

Applications

Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting

Technical Specifications

Rated Power	50W
Input Voltage	100-295VAC / 50-60Hz
Input Current	0.44A / 115VAC ; 0.22A / 230VAC ; 0.18A / 277VAC
Power Factor	PF>0.98 / 115VAC ; PF>0.93 / 230VAC ; PF>0.9 / 277VAC
Power Efficiency	>88%
Beam Angle	360°
Light Source/Count	400pcs 2835 SMD LED / Epistar Chip 10*30mil
Lamp Base	E40 / E39 / E27 / E26
LED Luminous Efficiency	>120lm/w
Luminous Flux	6200 lm±10%
Color Temperature Standard	WarmWhite: 2,700 3,500 K
	Natural White: 4,000 4,500 K
	Cool White: 5,500 6,700K
Color Rendering Index(CRI)	Ra>83
LED Emitter Life	50,000hours
Replacement	175W-225WMetal Halide/HPS
Working Environment	Indoor/Outdoor Lighting
Operating Temperature	-40~50℃
The Dimensions	Φ128183mm/Φ5.07.2inch
Packing	1pc/Box, 12pcs/Carton
*Packing Size (LWH)*	16 * 16 * 22 cm/ 50 * 46 * 34 cm

The relevant product parameters

Model NO.
Rated Power	20W	30W	40W	50W	60W
Beam Angle	360°
Light Source/Count	320pcs 2835 SMD LED / Epistar Chip 10*30mil			400pcs 2835 SMD LED / Epistar Chip 10*30mil
Lamp Base	E40 / E39 / E27 / E26
Luminous Flux	3000 lm±10%	3800 lm±10%	5100 lm±10%	6200 lm±10%	7200 lm±10%
Replacement	50W-75W Metal Halide/HPS	75W-105WMetal Halide/HPS	125W-150WMetal Halide/HPS	175W-225WMetal Halide/HPS	225W-250WMetal Halide/HPS
The Dimensions	Φ128183mm/Φ5.07.2inch
Packing	1pc/Box, 12pcs/Carton
*Packing Size (LWH)*	16 * 16 * 22 cm/ 50 * 46 * 34 cm
