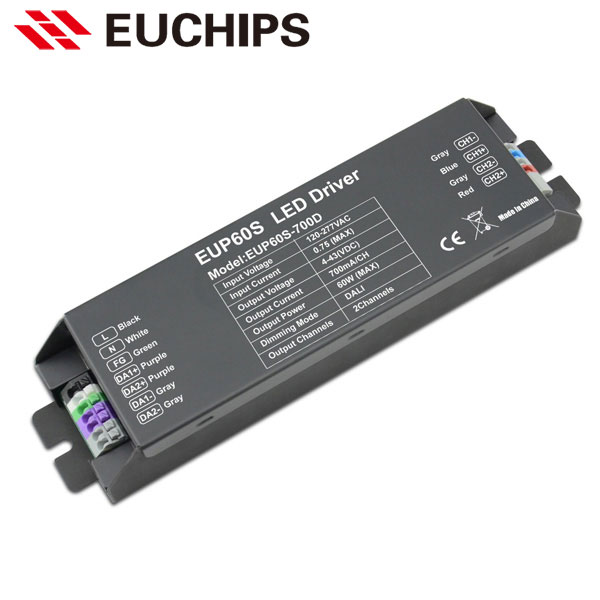

60W 700mA 2 channel constant current dali dimmable led driver EUP60S-700D
| FOB Price: | 1.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 1~7 days if the goods are in stock. |
| Payment Terms: | L/C, T/T, Other, PAYPAL |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Inner box outer standard packaging carton, or as customers' requirement. |
Quick Details
- Output Current: 700mA
- Output Frequency: 47~63HZ
- Output Power: 60W
- Output Voltage: 5~42VDC
- Input Voltage: 120~277VAC
- Model Number: EUP60S-700D
- Brand Name: EUCHIPS / OEM / ODM
- Output Channels: 2
- Power Factor: about 0.9
- Harmonic Distortion: less than 25%
- Line Regulation: about 3%
- Load Regulation: about 3%
- Turn-on Delay Time: 2s,Measured at 220Vac input
- No Load Power Dissipation: more than 3W
- Dimension: 203*55*4 (mm)
- Net Weight: 380g
- Color: black
Specifications
60W 700mA 2 channel constant current dali dimmable led driver EUP60S-700D
Feature
1. Input voltage range 120～277 Vac
2. High efficiency: up to 85%
3. Active PFC: high power factor 0.99 typical
4. Dimming range from 0-100%, LED start at 1% possible
5. lower THD 20% typical
6. Over temperature protection
7. Dimming control: DALI
8. Dimming curve : 10%~100% choice of linear or logarithmic
9. Output channel: 1ch or 2ch
Technical Parameter
Product Name: 60W 700mA 2 channel constant current dali dimmable led driver
Item: EUP60S-700D
Output Current: 700mA
Input Voltage: 120～277VAC
Output Channels: 2
Output Voltage: 5~42VDC
Max Output Power: 60W
Dimming: DALI dimming
