HATAC Machinery Co., Ltd.
China Manufacturer with main products: Slitting Machine, Paper Cutter, Printing Machine, Sheeting Machine, Paper Core Machine, Paper Bag Machine |

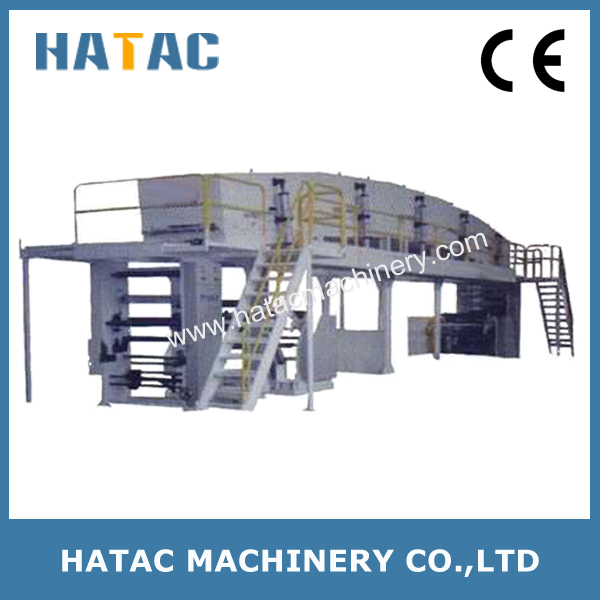

VMPET Film Coating Machine
| FOB Price: | 1,000.00 - 1,000,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 60 days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | plastic film and wooden case |
Quick Details
- Type: Coating Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 5000kg
- Dimension(L*W*H): 5000*3500*2300mm
- Model Number: TGF-1000
- Brand Name: HATAC
- Packaging Material: Plastic,Wood
- Packaging Type: Film
- Power: 80kw
- Voltage: 380V 3-Phase,50Hz
- Driven Type: Electric
- Automatic Grade: Automatic
- Application: Machinery & Hardware
- Condition: New
- Application: Kraft Paper,Cellophane Paper
- Control System: PLC & Touch Panel
- Loading Way: Automatic
- Glue: Water-based/Solvent-based
Specifications
Brief Instruction:
- Suitable for water and solvent based coating.
- It is high speed coating processing,with high automation,high efficiency and high precision.
- Transmission controlled by programmed control system and touch panel HMI.
Working Parameter:
|
Material |
Film like PET,BOPP,Paper,etc |
|
Adhesive |
Water and Solvent Based |
|
Max. Web Width |
1000mm |
|
Max. Coating Width |
850mm |
|
Max. Machine Speed |
120m/min |
|
Voltage |
380V,3-Phase,50Hz |
Specification:
1. Adopts Automatic Lifting-up System which is controlled by 1.5kw gear motor.
2. Adopts Automatic Tension Control System,controlled by 11kw inverter motor.While, Omron encoder is used as automatic feedback signal.
3. Adopts EPC tracking system to track material edge,which is from Taiwan.
4. Motor and air expanding shaft adopt low noise coupling.
5. Anilox Coater/Meyer rod coater
6. Temperature of each section is independently controlled and temperature sensor measure dry oven temperature to spread to temperature controller.
7. Circulating air pipeline is with galvanized steel plate.
8. Adopts 11kw AC inverter motor for cooling roller transmission,as main machine speed.And Yaskawa inverter for speed regulation.
9. Exhaust pipe is to the exit of machine.
Our Service:
1. Achivement:
1) Recommend proper device for our customers.
2) Provide the best solution for our customers' project.
3) Follow up after-sale service.
2. Packing machine of paper and plastic is our areas of expertise.
1) Sturdy construction and mechanics,long-life span.
2) Accessories are included.
3) Machines which have supplied as our customers'request are with high quality for many years.
3. Machinery transportation and shipment
1) We are cooperated with experienced companies at all majoy Ports in China.
2) We are flexible in shipping arrangements and accommodate a wide range of shipping company and packing request.
4. After-sale Service
1) Operation is starts,if there is any defect and area in need of service,we will give you troubleshoot within 24 hours.If they are still not solved,to dispatch technician will be as your request,round trip tickets,food,hotel and salary will be paid by our customers.
2) If assembly is broken(not by human being factor) within one yar guarantee time,new assembly will be expressed for free.After one year,you can buy parts from us or at your local market,we will assist you to get proper ones.
About Us:
HATAC Machinery Co.,Ltd was established in 2010 and specializes in packaging machinery of paper and plastic,such as automatic slitting machine,A4 paper cutting and packing machine,sheeting machine,paper core making machine,paper core cutting machine,printing machine,envelope making machine,etc.
Our sales and technical support is available to help you in recommending proper machine and best solutions as your request.Your satisfaction is our ultimate goal.
