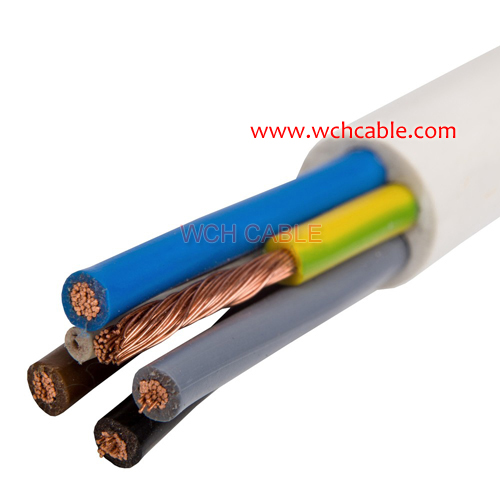

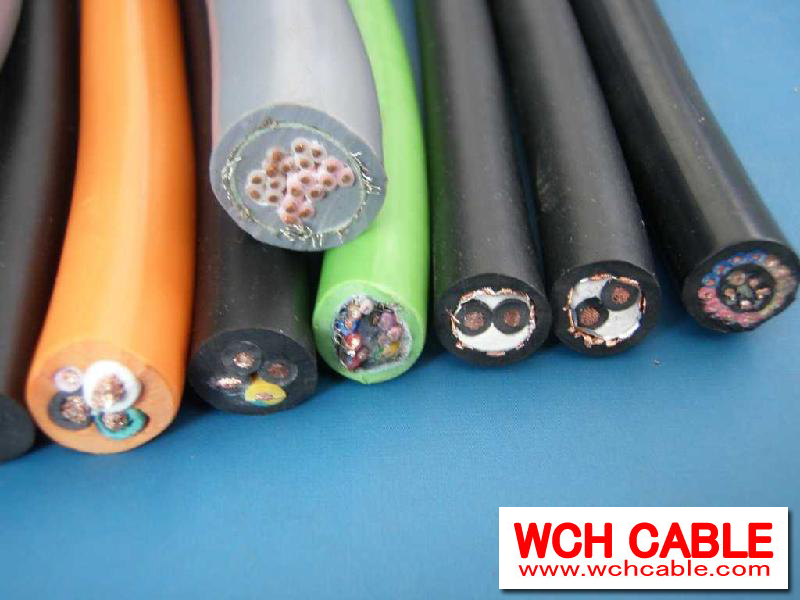

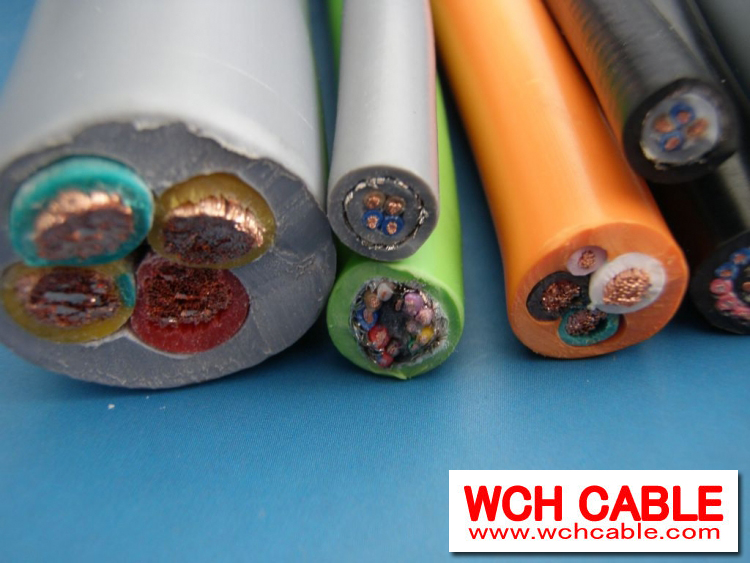

30V/80C Low Voltage TPU Cable UL20236, UL20279, UL20554, UL20937, UL20963, UL21032, UL21126, UL21253
| FOB Price: | 0.05 - 0.95 USD/Meter |
|---|---|
| Supply Ability: | 300,000 Meter/Meters per Month |
| Shipping: | Production takes approximately 10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 305 meters per reel / spool |
Quick Details
- Insulation Material: PVC
- Jacket: Polyurethane PU / PUR / TPU
- Conductor Material: Copper
- Shielding: Foil
- Model Number: WCH-20236
- Brand Name: WCH Cable
- Rated: 80C 30V
Specifications
Product Description:
1. Tinned stranded or bare annealed copper conductor.
2. Insulation material: PP, PVC, SR-PVC, HDPE, FR-PE
3. Rated temperature: 80C.
4. Rated voltage: 30V.
5. Uniform insulation wall thickness for easy stripping and cutting.
6. UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.
7. Jacket material: Thermoplastic Polyurethane PUR / TPU
8. Standard executed: Appliance Wiring Material UL 758
9. 100% RoHS compliant.
Application:
For internal wiring of computer, audio & video equipment.
Internal wiring or external interconnection of appliances or electronic equipment.
Similar UL style number (80C 30V rated):
UL#
Temperature
Voltage
Sheath Material Type
Brand
20236
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
20279
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
20554
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
20937
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
20963
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21032
60/80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21126
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21253
75
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21292
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21317
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21686
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
21687
80
30
Thermoplastic Polyurethane PU / PUR / TPU
WCH Cable
|
UL Style |
Cores |
Conductor |
Insulation |
Nom.Dia |
Screened Coverage |
Jacket Thickness |
Overall Diameter |
Conductor |
|
|
AWG |
mm |
mm |
mm |
% |
mm |
mm |
Ω/KM |
||
|
UL20236 |
2C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65% |
0.76 |
3.70 |
381.00 |
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65% |
0.76 |
4.00 |
239.00 |
||
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65% |
0.76 |
4.20 |
150.00 |
||
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65% |
0.76 |
4.40 |
94.20 |
||
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65% |
0.76 |
4.70 |
59.40 |
||
|
20 |
21/0.178 |
0.23 |
1.50 |
>=65% |
0.76 |
5.20 |
36.70 |
||
|
18 |
34/0.178 |
0.23 |
1.80 |
>=65% |
0.76 |
5.80 |
23.20 |
||
|
16 |
26/0.25 |
0.23 |
2.00 |
>=65% |
0.76 |
6.20 |
14.60 |
||
|
3C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65% |
0.76 |
3.80 |
381.00 |
|
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65% |
0.76 |
4.00 |
239.00 |
||
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65% |
0.76 |
4.20 |
150.00 |
||
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65% |
0.76 |
4.50 |
94.20 |
||
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65% |
0.76 |
4.90 |
59.40 |
||
|
20 |
21/0.178 |
0.23 |
1.50 |
>=65% |
0.76 |
5.40 |
36.70 |
||
|
18 |
34/0.178 |
0.23 |
1.80 |
>=65% |
0.76 |
6.00 |
23.20 |
||
|
4C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65% |
0.76 |
4.00 |
381.00 |
|
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65% |
0.76 |
4.30 |
239.00 |
||
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65% |
0.76 |
4.50 |
150.00 |
||
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65% |
0.76 |
4.80 |
94.20 |
||
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65% |
0.76 |
5.30 |
59.40 |
||
|
20 |
21/0.178 |
0.23 |
1.50 |
>=65% |
0.76 |
5.60 |
36.70 |
||
|
5C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65% |
0.76 |
4.30 |
381.00 |
|
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65% |
0.76 |
4.50 |
239.00 |
||
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65% |
0.76 |
4.80 |
150.00 |
||
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65% |
0.76 |
5.00 |
94.20 |
||
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65% |
0.76 |
5.60 |
59.40 |
||
|
6C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65% |
0.76 |
4.50 |
381.00 |
|
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65% |
0.76 |
4.80 |
239.00 |
||
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65% |
0.76 |
5.20 |
150.00 |
||
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65% |
0.76 |
5.40 |
94.20 |
||
