30V Water-proof TPU Cable UL20445, UL20512, UL20563, UL20567, UL20640, UL20733
| FOB Price: | 0.10 - 1.32 USD/Meter |
|---|---|
| Supply Ability: | 300,000 Meter/Meters per Month |
| Shipping: | Production lead time takes around 10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |

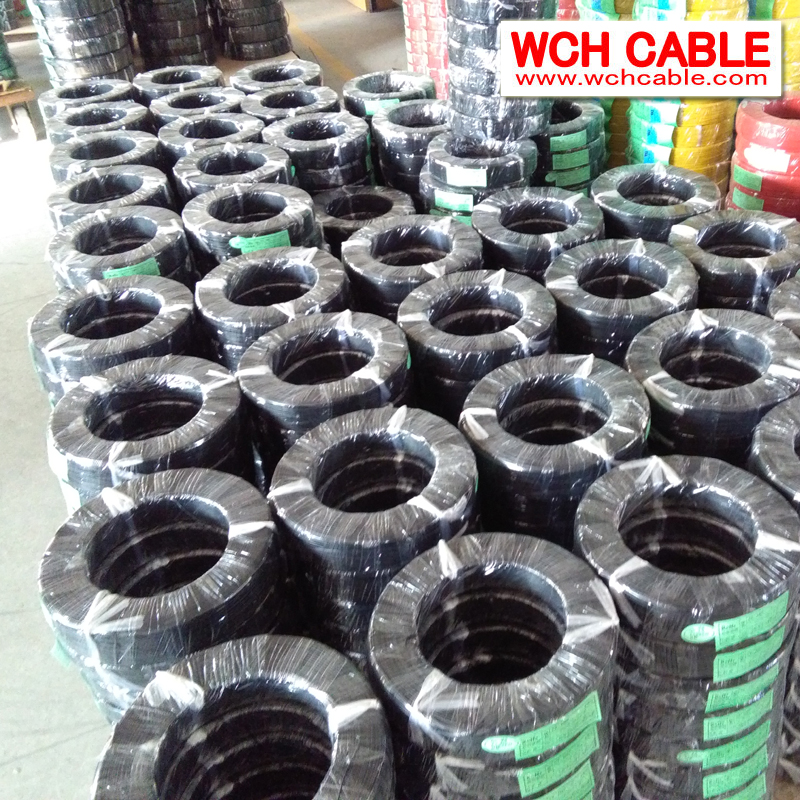

| Packaging Details: | 305 meters per reel / spool |
Quick Details
- Insulation Material: ETFE
- Jacket: Thermoplastic Polyurethane TPU / PUR
- Conductor Material: Copper
- Shielding: Non-Shielded
- Model Number: WCH-20445
- Brand Name: WCH Cable
- Rated Voltage: 30V
- Rated Temperature: 80C
Specifications
Structure Details:
1. Tinned, annealed, stranded or solid pure copper conductor.
2. Insulation material: PE, HDPE, PVC, SR-PVC, PP, TPE, TPEE (optional)
3. Rated temperature: 60C.
4. Rated voltage: 30V (Low Voltage).
5. Uniform insulation wall thickness for easy stripping and cutting.
6. UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.
7. Screen: tinned or bare copper spiral shielded or braided.
8. Bundle of cores is to be isolated by cotton paper, aluminum foil or mylar.
9. Jacket material: Eco-friendly Thermoplastic Polyurethane PU, PUR, TPU.
10. Standard executed: UL758, UL1581, CSA22.2
11. 100% RoHS compliant.
Application:
For Internal wiring or external interconnection of electronic equipment.
Outstanding Feature:
Extremely Flexible Polyurethane TPU Jacket. Good performance of Water Proof.
| UL# | Temperature | Voltage | Sheath Material Type | Brand |
| 20445 | 60 | 30 | Thermoplastic Polyurethane PUR / TPU | WCH Cable |
| 20512 | 60 | 30 | Thermoplastic Polyurethane PUR / TPU | WCH Cable |
| 20563 | 60 | 30 | Thermoplastic Polyurethane PUR / TPU | WCH Cable |
| 20567 | 60 | 30 | Thermoplastic Polyurethane PUR / TPU | WCH Cable |
| 20640 | 60 | 30 | Thermoplastic Polyurethane PUR / TPU | WCH Cable |
| 20733 | 60 | 30 | Thermoplastic Polyurethane PUR / TPU | WCH Cable |
|
UL Style |
Cores NO. |
Conductor |
Insulation Thickness |
Nom.Dia |
Jacket Thickness |
Overall Diameter |
Conductor Resistance |
|
|
AWG |
No/mm |
mm |
mm |
mm |
mm |
Ω/KM |
||
|
UL20445 |
2C |
30 |
7/0.100 |
0.25 |
0.80 |
0.80 |
3.40 |
381.00 |
|
28 |
7/0.127 |
0.25 |
0.90 |
0.80 |
3.60 |
239.00 |
||
|
26 |
7/0.160 |
0.25 |
1.00 |
0.80 |
3.90 |
150.00 |
||
|
24 |
1/0.160 |
0.25 |
1.10 |
0.80 |
4.20 |
94.20 |
||
|
22 |
17/0.160 |
0.25 |
1.30 |
0.80 |
4.60 |
59.40 |
||
|
20 |
21/0.178 |
0.25 |
1.50 |
0.80 |
5.00 |
36.70 |
||
|
18 |
34/0.178 |
0.25 |
1.80 |
0.80 |
5.60 |
23.20 |
||
|
3C |
30 |
7/0.100 |
0.25 |
0.80 |
0.80 |
3.70 |
381.00 |
|
|
28 |
7/0.127 |
0.25 |
0.90 |
0.80 |
4.00 |
239.00 |
||
|
26 |
7/0.160 |
0.25 |
1.00 |
0.80 |
4.20 |
150.00 |
||
|
24 |
1/0.160 |
0.25 |
1.10 |
0.80 |
4.50 |
94.20 |
||
|
22 |
17/0.160 |
0.25 |
1.30 |
0.80 |
4.80 |
59.40 |
||
|
20 |
21/0.178 |
0.25 |
1.50 |
0.80 |
5.30 |
36.70 |
||
|
18 |
34/0.178 |
0.25 |
1.80 |
0.80 |
6.00 |
23.20 |
||
|
4C |
30 |
7/0.100 |
0.25 |
0.80 |
1.00 |
4.30 |
381.00 |
|
|
28 |
7/0.127 |
0.25 |
0.90 |
1.00 |
4.60 |
239.00 |
||
|
26 |
7/0.160 |
0.25 |
1.00 |
1.00 |
4.80 |
150.00 |
||
|
24 |
1/0.160 |
0.25 |
1.10 |
1.00 |
5.10 |
94.20 |
||
|
22 |
17/0.160 |
0.25 |
1.30 |
1.00 |
5.50 |
59.40 |
||
|
20 |
21/0.178 |
0.25 |
1.50 |
1.00 |
6.10 |
36.70 |
||
|
18 |
34/0.178 |
0.25 |
1.80 |
1.00 |
6.80 |
23.20 |
||
|
5C |
30 |
7/0.100 |
0.25 |
0.80 |
1.00 |
4.60 |
381.00 |
|
|
28 |
7/0.127 |
0.25 |
0.90 |
1.00 |
4.90 |
239.00 |
||
|
26 |
7/0.160 |
0.25 |
1.00 |
1.00 |
5.20 |
150.00 |
||
|
24 |
1/0.160 |
0.25 |
1.10 |
1.00 |
5.40 |
94.20 |
||
|
22 |
17/0.160 |
0.25 |
1.30 |
1.00 |
6.00 |
59.40 |
||
|
20 |
21/0.178 |
0.25 |
1.50 |
1.00 |
6.70 |
36.70 |
||
|
18 |
34/0.178 |
0.25 |
1.80 |
1.00 |
5.40 |
23.20 |
||
|
6C |
30 |
7/0.100 |
0.25 |
0.80 |
1.00 |
4.90 |
381.00 |
|
|
28 |
7/0.127 |
0.25 |
0.90 |
1.00 |
5.30 |
239.00 |
||
|
26 |
7/0.160 |
0.25 |
1.00 |
1.00 |
5.60 |
150.00 |
||
|
24 |
1/0.160 |
0.25 |
1.10 |
1.00 |
6.00 |
94.20 |
||
|
22 |
17/0.160 |
0.25 |
1.30 |
1.00 |
6.40 |
59.40 |
||
|
20 |
21/0.178 |
0.25 |
1.50 |
1.00 |
7.00 |
36.70 |
||
|
18 |
34/0.178 |
0.25 |
1.80 |
1.00 |
7.90 |
23.20 |
||
