Kaifeng Rainbow Machinery Co., Ltd.
China Manufacturer with main products: Wood Machinery, Food Machinery, Chalk Machinery, Farm Machinery, Fruit Process Machinery, Vegetable Process Machinery, Package Machinery,... |

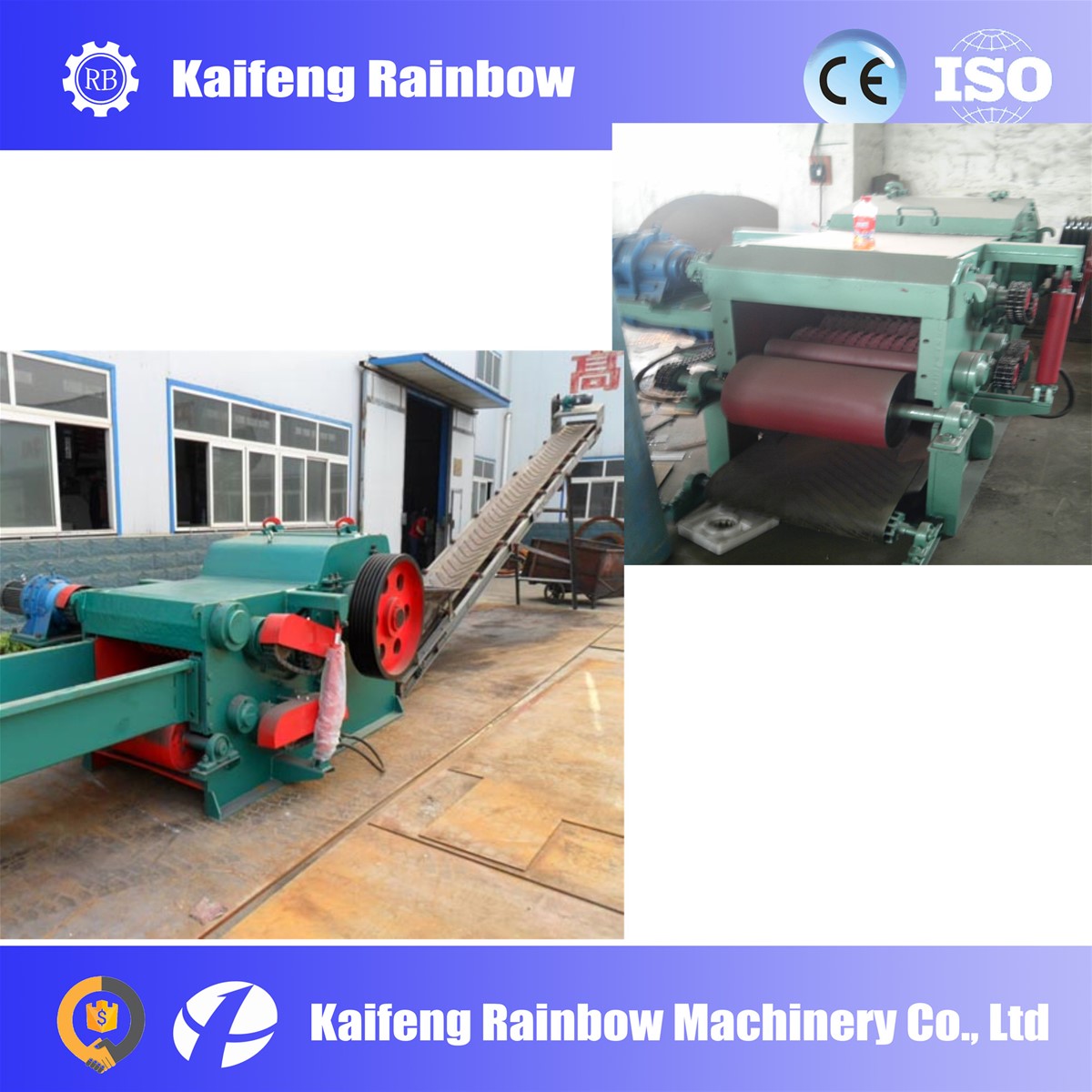

high efficient drum wood chipper for raw wood
| FOB Price: | 7,000.00 - 28,000.00 USD/Piece |
|---|---|
| Supply Ability: | 40 Piece/Pieces per Week |
| Shipping: | one week after payment T/T |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | WOODEN BOX |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO
- Weight: 2990kg
- Dimension(L*W*H): 1470*1550*970(mm)
- Model Number: RB-215
- Brand Name: RB
- Inlet Diameter: 160mm
- Cutter Diameter: 30mm
- Length of Cutter: custom made
- Number of Cutter: 2
- Spindle Speed: 592(r/min)
- Aperture Size: No
- Mill Granularity: No
- Condition: New
- max wood diameter: 160mm
- main motor power: 45kw
- pump motor power: 1.5*1
- conveyor motor power: 3kw
- capacity: 4t
Specifications
Drum wood chipper/drum wood chipping machine/professional drum wood chipper machine/higher capacity wood chipper drum type/paper pulp industry use drum wood chipper/particle board drum wood chipper/widely used drum wood chipper/high efficiency drum chipping machine/environmental protection drum chipper/professional drum rotary wood chipper/large capacity drum type wood chipper/50% energy saving drum wood chipper
1. The serial drum chippers of our company are a kind of special equipment that produces technological wood chips.
Widely used in the production of medium-density fiberboard., ordinary shaving board and in the papermaking industry etc., it is used as the main machine of material-preparing process of wood chips, could be used as independent wood chip production equipment as well.
2. The raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling remainder (branch etc.), wood processing remainder (lath, slab, log core, abolish single-board.).
3. The serial drum chippers are of compact structure, ease of operation, high capacity, wide raw materials adaptability,
high quality, safe and reliable, easy to maintain, it is the relatively advanced slicer at present both at home and abroad.
4. The serial drum chippers could meet the production capacity between 3 and 130 cubic meters of wood chips per hour.
Users could select the suitable type of machine according to requirements.
|
Model No. |
RB-215 |
RB-216 |
RB-218 |
RB-2113 |
|
Feeder port size(mm) |
160*400 |
230*500 |
300*680 |
450*700 |
|
Blade quantity |
2 |
2 |
2 |
2 |
|
Rotary |
592 |
590 |
650 |
500 |
|
Max wood diameter(mm) |
160 |
230 |
300 |
450 |
|
Chip size(mm) |
30 |
30 |
30 |
38 |
|
Capacity(t) |
3-4 |
7-8 |
12-15 |
15-30 |
|
Main motor power(kw) |
45 |
55 |
110 |
200-250 |
|
Feeder motor power(kw) |
2.2-3 |
3-4 |
4-5 |
7.5*2 |
|
Pump motor power(kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
|
Weight(kg) |
2990 |
4070 |
7000 |
11840 |
|
Size (mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
3670*2517*2050 |
|
Conveyor motor power(kw) |
3 |
3 |
3 |
3 |
