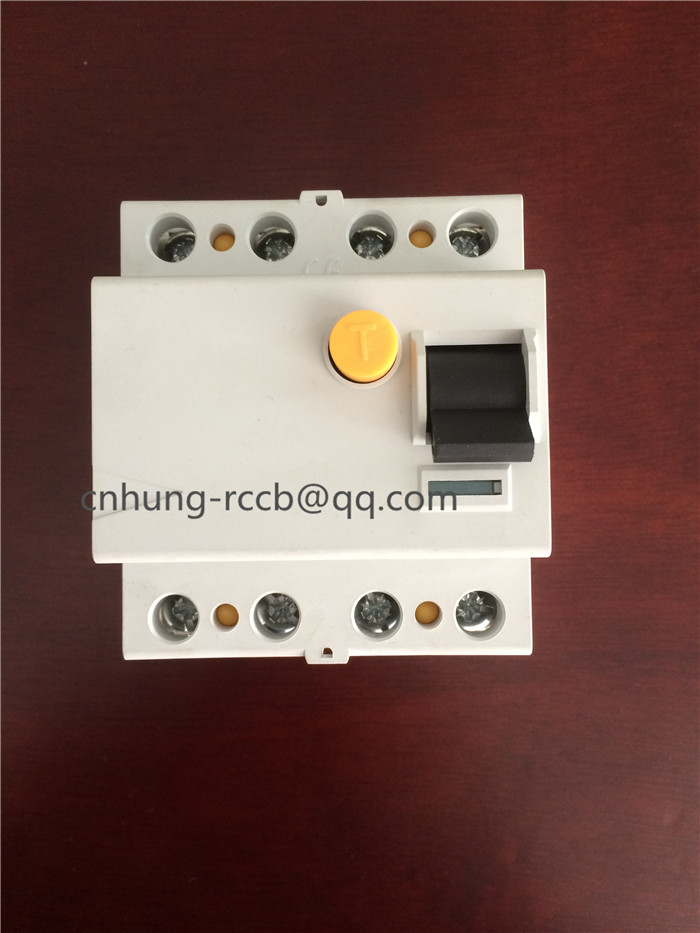

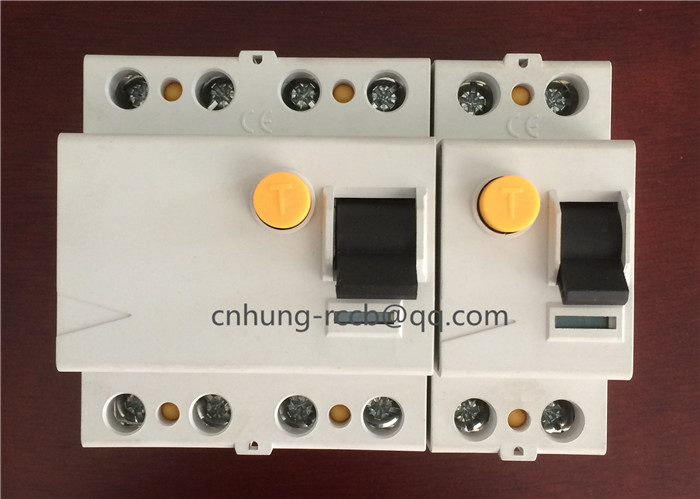

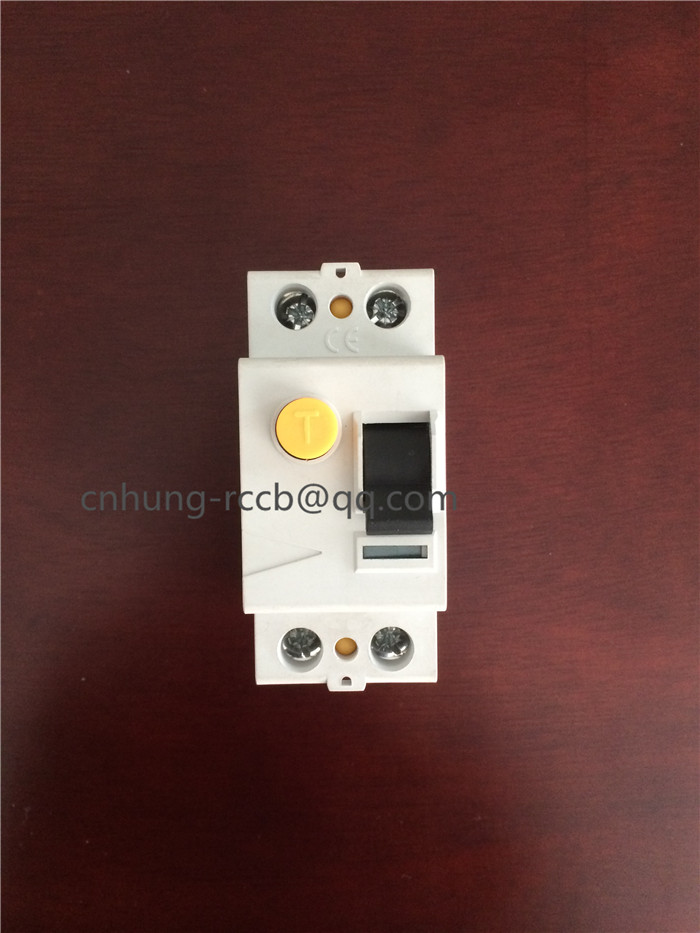

CNHUNG RCCB F7 RCCB/ELCB Megantic Residual Circuit Breaker

Supply Ability:	500,000 Piece(s) per Month
Shipping:	FOB China in one month
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Packed in export Carton

Quick Details

Poles Number: 2P/4P
Type: Residual Current
Brand Name: CNHUNG
Rated voltage: 230 / 400V
Certificate: CCC,CE
Model Number: F7
Type: Electric/Megnatic

Specifications

Main Specification

Poles:2P/4P

Rated Current(A):25, 40,63,100

Rated Voltage(V):AC230 / 400V

Frequency:50 / 60Hz

Rated residual Action current(mA):30, 100, 300

Number of poles	2P, 4P
Rated Current(in)	25,40, 63,100A
Rated residual operating current( In)	30, 100, 300mA
Rated residual non-operation Current( Ino)	0.5In
Rated Voltage(Un)	AC 2P: 230 / 240V 4P: 400 / 415V
Residual operating current scope	0.5In~In
Residual current off-time	00.3s
Type	A, AC
Ultimate short-circuit breaking capacity (Inc)	3000A
Endurance	4000
Terminal protection	IP20

Application
F7 Series Residual Current circuit breaker (without over-current protection) is suitable for the Line of AC 50/60Hz,voltage 240V(2pole)/415V(4pole),rated current up to 63A.When there is Human electricity shock or if the leakage current of The line exceeds the prescribed value, RCCB will cut off the power rapidly to protect human safety and Prevent the accident due to the current leakage.
It can be used as infrequent changeover of the Line in normal situation. RCCB is applicable to industrial area, commercial area, tall building and civil House.
It complies with standard IEC/EN61008.1 and GB16916.1
about US

1. We Forever Champion Group specialize in the R&D, manufacture and sale of low voltage electric applicants, such as RCCB,MCB, MCCB and Accessories and so on.

2.We have seven years of manufacture and exporting experience.

3.We Have had a good reputation in Iran, Pakistan, India, Bangladesh, south American Market and so on.

4. Our brand is CNHUNG.We can also provide OEM and ODM service.

5. Already get the certificate of ISO9001,CE.
