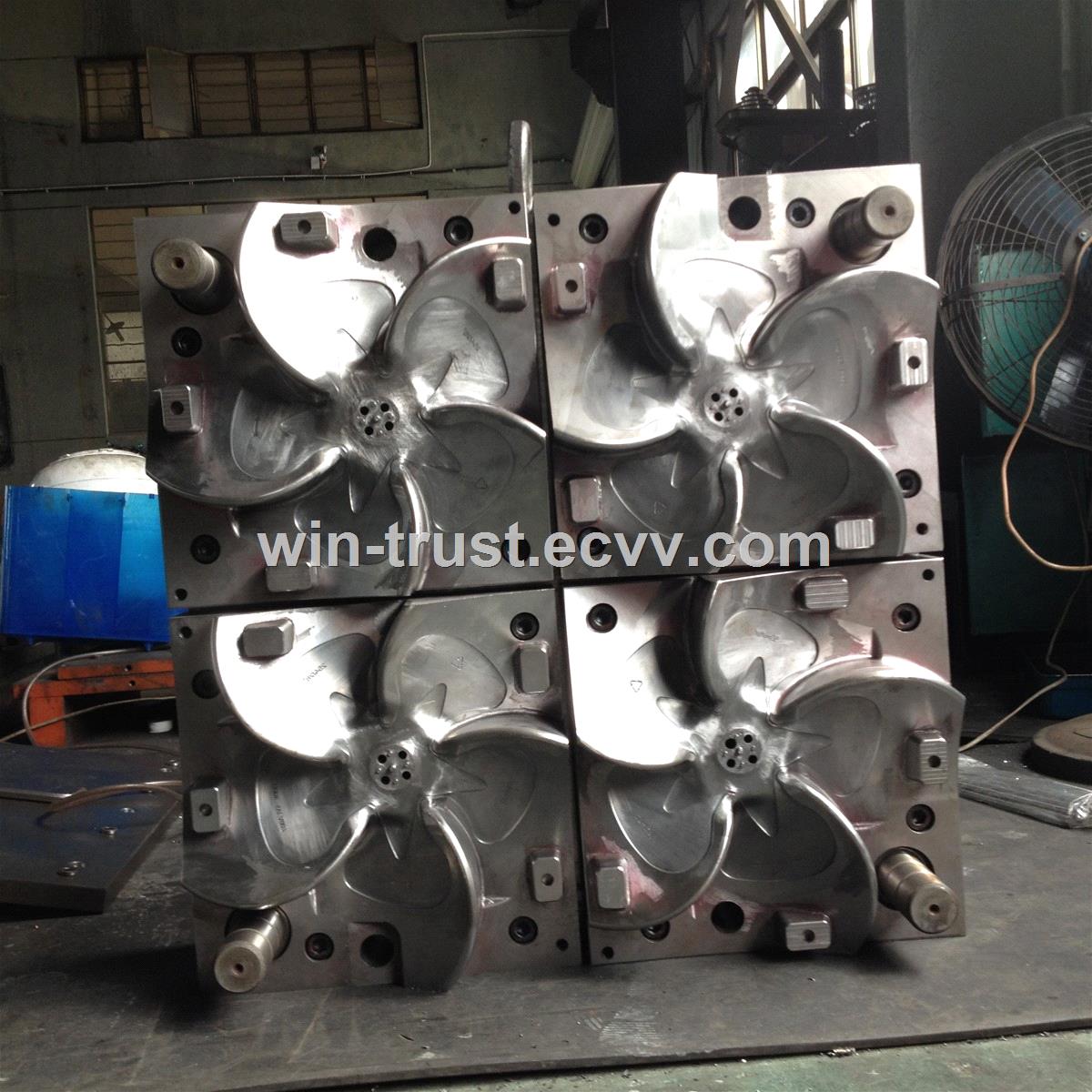

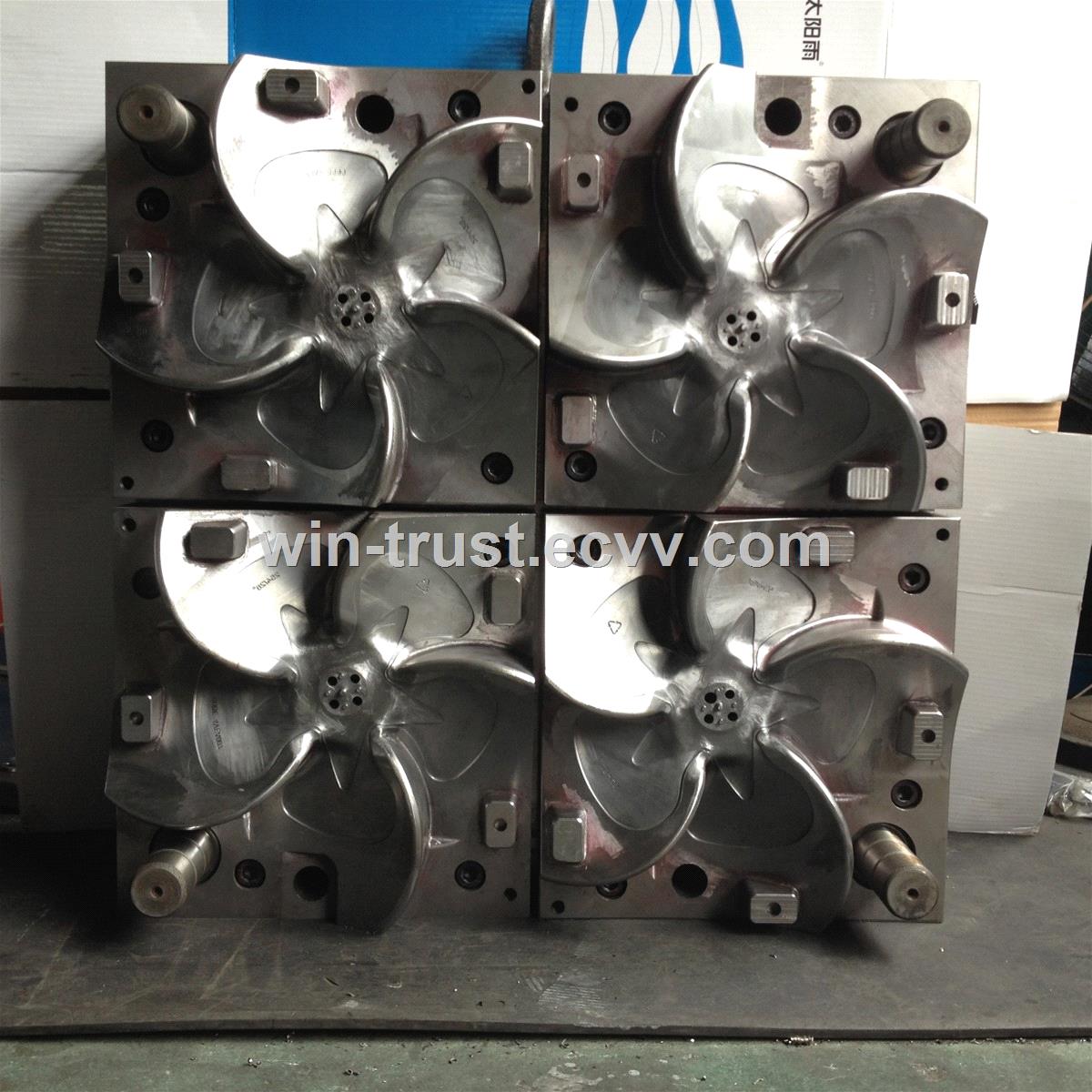

Fan Blade Plastic Injection Mould

Specifications

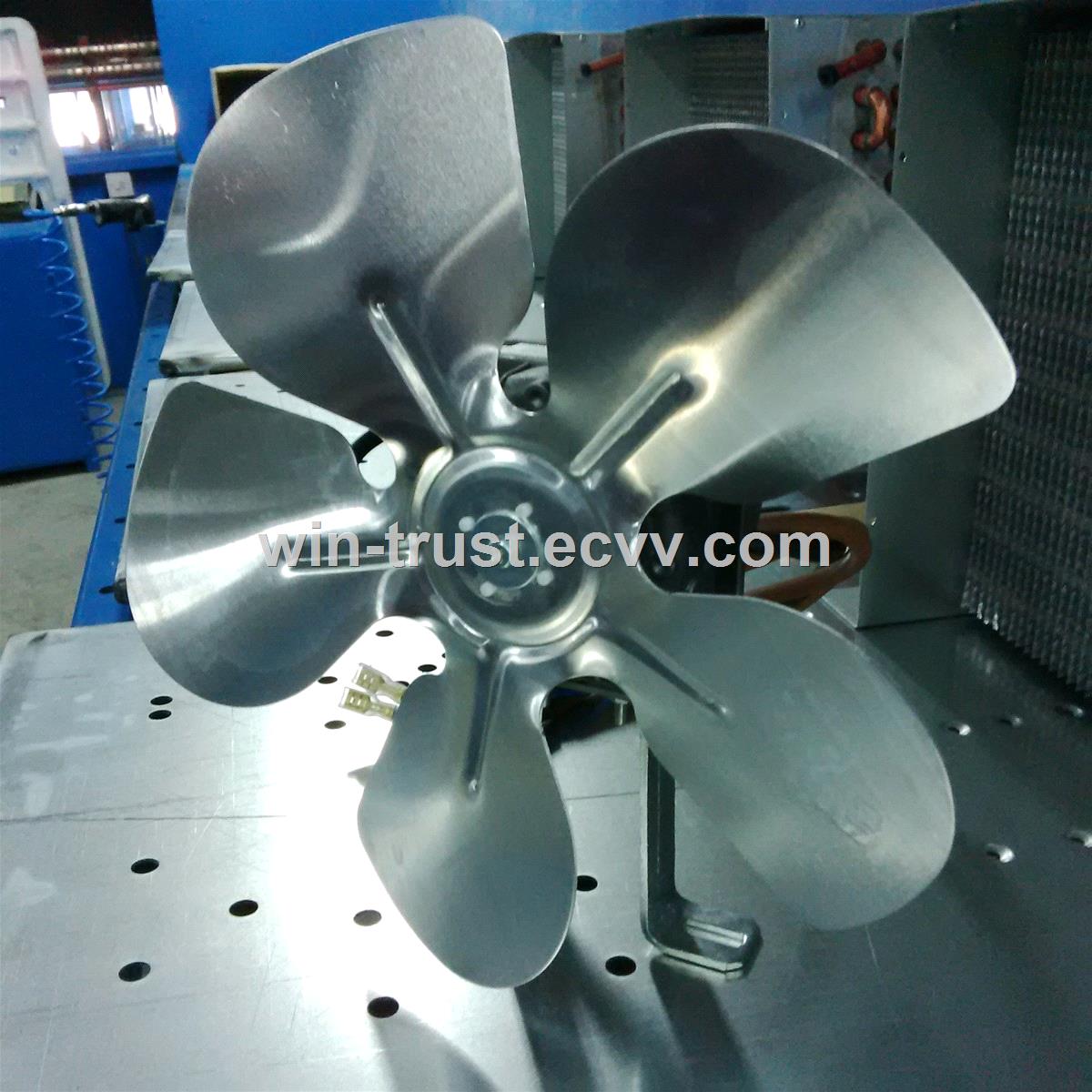

Fan Blade Plastic mold
for home appliance, kitchen /bathroom, industrial fans

(Especially for Washing machine, Fans, precision whole set mould Turn-key service provider)

1. Cavity: Single/multi-(1,4... )
2. Runner: Hot/cold
3. Design: PROE, UG, CAD
4. Mold life: 500, 000shots

Parts Material:
Plastic injection molding grade, such as PE, PVC ABS, PC, PP, POM, PA6( PA66, GF filled), PMMA, PET(PBT)

Cav. & Cor. Material:

P20, H13, S136, NAK80, 718, 2738, 2316, SKD61 etc;

Mold Base:

LKM, DME, HASCO or Customize according to customers' requirements;

Cavity quantity:

1*1, 1+1, 1*2, 1+1+1, etc.

Shot Runner:

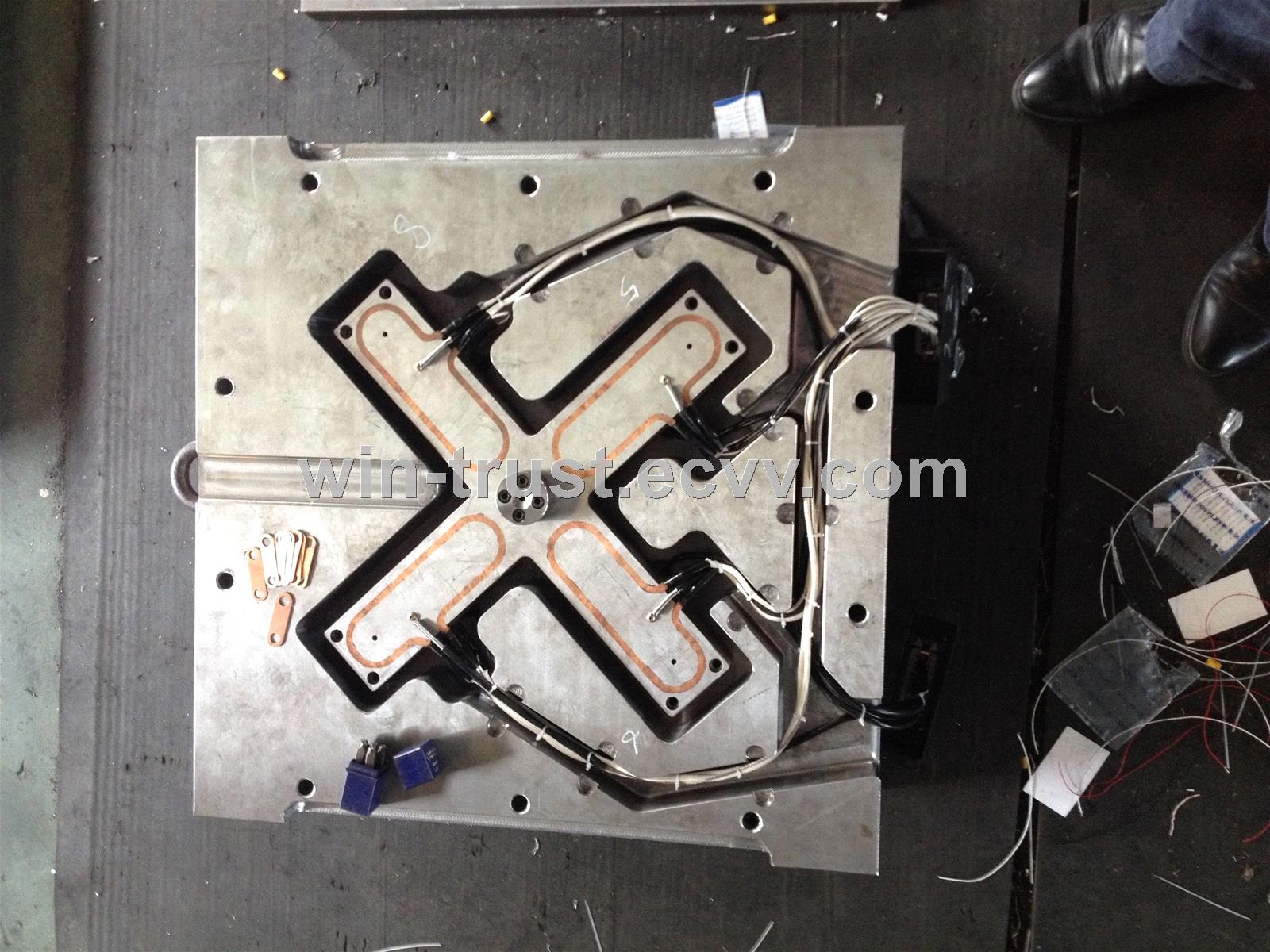

Cold or Hot Runner_ HASCO/DME/YUDO etc.

Mold lifetime:

100K to 1500k shots or according to customers quantity condition to decide it with saving cost for our customers.

Soft wares:

CAD/CAM/CAE, UG, PRO/E, Powmill, Solid works etc.

Package:

Wooden case packing or OEM packing

Plastic Mold (Moulds) production process

1. OEM Service

OEM & ODM service, we can provide design service if needed

2. Quotation

Including the price of moulds, moulds sizes, material for cores & cavities, weight of moulds, freights for moulds & parts (if needed), part cost, moulds lifetime, delivery, etc.

3. Purchasing Order

As per the customers' designs of parts, and suppliers accept the orders

4. Confirmation

Provide moulds drawings to customers for confirmation, after that, order moulds base & material, start production

5. Component

High speed chip makes the reflection more quickly

6. Sample shoot

Provide the moulds test samples for confirmation, after that, mass production

7. Delivery

Deliver goods by air or by sea, as per the requirements of customers

8. Package

Wooden case for moulds, cartons for parts

Hotlights:

1. Rich experience
2. Strict quality inspections
3. Professional staff
4. Design service
5. Especially for western Europe.

6. Customized designs are accepted.

7. OEM orders are welcomed.

Payment:

50%T/T down payment before mould design, balance50% will be paid before documents releasing.

Service Items:

1. WIN-TRUST will send to buyer the mould tooling schedule and processing report each 10days.

2. WIN-TRUST will send the tryout samples for buyer checking and work out improvements requirement.

3. WIN-TRUST will send to buyer the mould testing report and parts measuring report.

4. WIN-TRUST will send mould pictures during mould tooling and processing.
