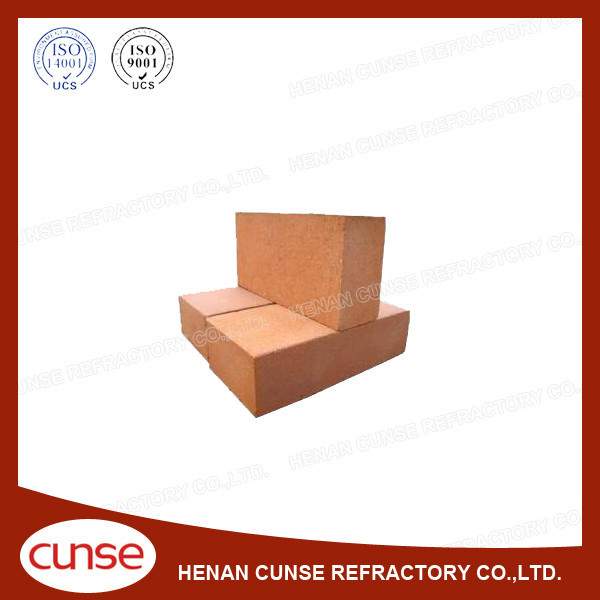

Hot Blast Stove Used Silica Insulating Refractory Brick

FOB Price:	100.00 - 300.00 USD/Ton
Supply Ability:	180,000 Ton/Tons per Year
Shipping:	15-60 Days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink fi

Quick Details

Brand Name: CUNSE
Model Number: GGR-1.0
SiC Content (%): 0
CrO Content (%): 0
Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
CaO Content (%): 0
MgO Content (%): 0
Al2O3 Content (%): 0
SiO2 Content (%): min.91%
Material: Alumina Block
Shape: Brick

Specifications

Silica Insulating Brick

CUNSE has world-class silica insulating bricks with low bulk density, low thermal conductivity, high apparent porosity. It is made of crystal silica as raw material by adding into compound flammable substance.

Features:

It not only resists high temperature, but also preserves heat. As the main energy-saving materials of blast furnace, our silica insulating brick can reduce 40%-90% thermal storage and heat radiation loss.

Application:

It is widely available for heat-insulating layer of various of high temperature furnace equipments not in contact with molten slag under high temperature condition(≤1500℃), especially for discontinuous working thermal equipment.

Technical Data:

Item	Silica Insulating Brick
Item	GGR-1.0	GGR-1.10	GGR-1.15		GGR-1.20
SiO₂ %	≥91
Bulk Density g/cm³	1.0	1.10	1.15	1.20
Cold Crushing Strength MPa	≥2	≥3	≥5	≥5
Refractoriness Under Load (0.2MPa) ℃	1400	1420	1500	1520
Permanent Linear Change *(1550℃2h)** %	--	--	0.5	0.5
Permanent Linear Change *(1450℃2h)** %	0.5	0.5	--	--
Coefficient of Thermal Conductivity, Average Temperature 350+10℃ ℃ w/(m·k)	0.55	0.60	0.65	0.70
