Full Automatic PP/PS Doubel Layer Extruder

FOB Price:	62,000.00 - 70,000.00 USD/Set
Supply Ability:	8 Set/Sets per Month
Shipping:	60 Days. Based on Fob Ningbo or Shanghai Port of China.
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Exporying Wooden Packing.(First antirust oil,second film packing,final wooden case packing)

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Weight: About 6.6 T
Dimension(L*W*H): L11500*W2800*H2000mm
Power(W): 185kw
Voltage: AC 380V,50Hz, Three-phase , Four-wire
Model Number: TJS-670
Brand Name: LITAI
Type: plastic sheet exruder
Condition: New
Suitable Sheet: PP,PS
Max. Sheet Width: 670mm
Sheet Thickness Range: 0.3-2.0mm
Screw Rod Dia.(main machine): 110 mm
Screw rod Dia(auxiliary machine): 80mm
Screw L/D ratio(main machine): 30:1
Screw L/D Ratio(auxiliary machine): 35:!
Max. Output: 180kg/hr
Main Motor Power: 45kw
Auxiliary Motor Power: 30kw

Specifications

1. Plastic Extruder Application Area:

Single Layer Sheet Plastic Extruder (TJS-670) extrudes PP and PS granule to two colors PP and PS sheet which are used for producing different kind of cups, food containers, packing boxes, plastic folder, packing bag, and other plastic products.

2. Function:

The machine is composed of extruding, calendering and traction rolling. The main parts including screw rods, cylinder, die are made of high quality specially-treated alloys. It' s characterized by abrasion resistant, resistant to corrosion, high-temperature resistant, etc. The extruding channel is even in resistance force and has no retention, which have the sheets of thickness is in balance.

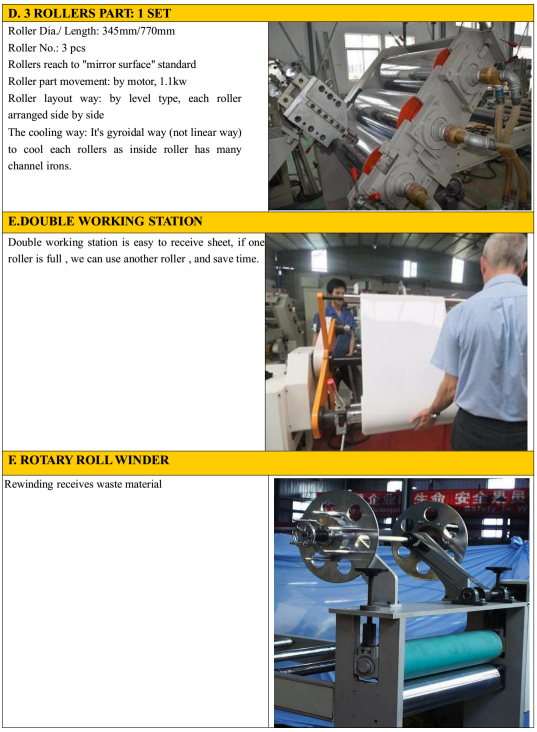

3. Some Parts Of Machine:

a. Good quality T-die

b. Hydraulic type net changer

c. Reftover material rewind device

d. Double working station for rewinder

e. Good Quality with screw

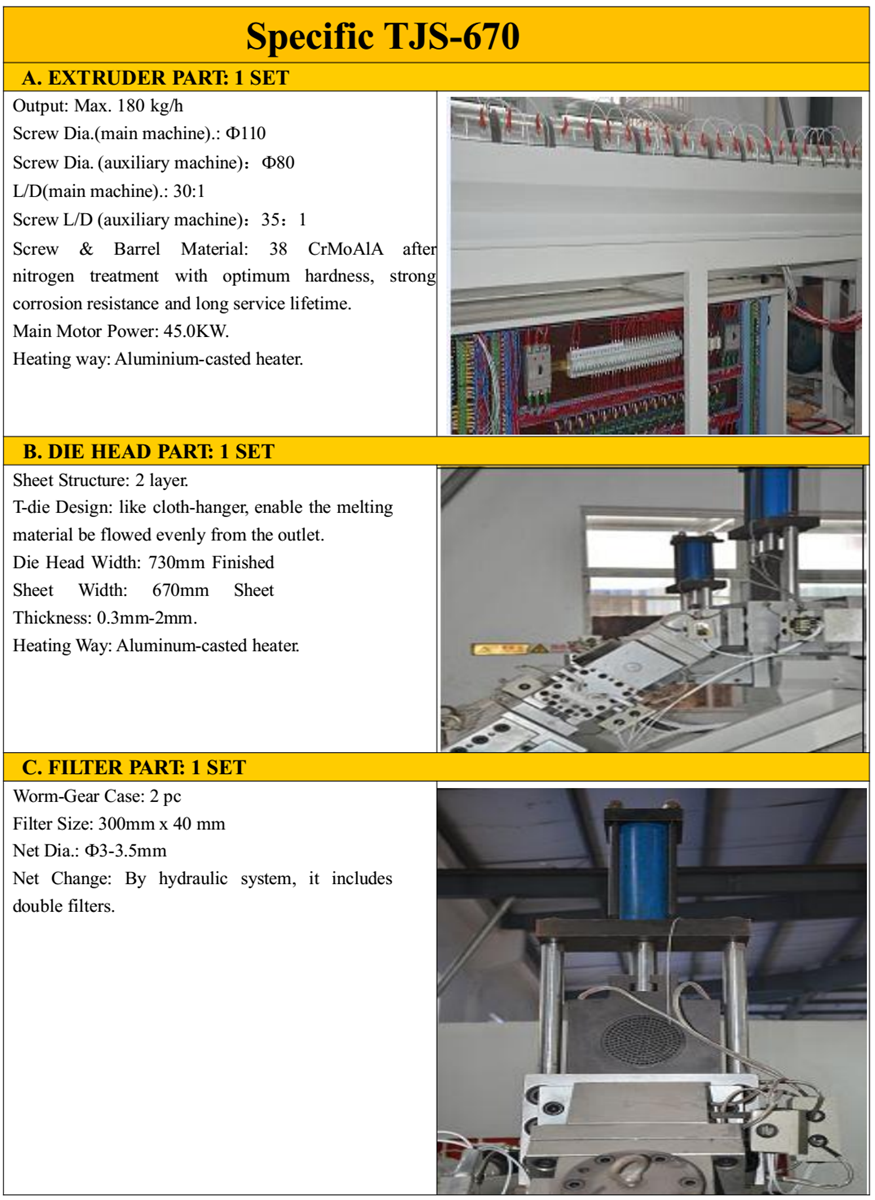

4. Main Technical Parameter:

TECHNICAL PARAMETER
Model	TJS-670
Suitable Sheet	PP, PS
Max. Sheet Width	670mm
Sheet Thickness Range	0.3-2.0mm
Screw rod Dia(main machine).	110 mm
Screw rod Dia(auxiliary machine)	80mm
Screw L/D Ratio(main machine)	30:1
Screw L/D Ratio(auxiliary machine)	35:1
Main Motor Power	45kw
Auxiliary Motor Power	30kw
Max. Output	180kg/hr
Rated Power	185kw
Power Supply	AC 380V, 50Hz, Three-phase , Four-wire
Dimension	L11500xW2800xH2000mm
Weight	About 6.6T
