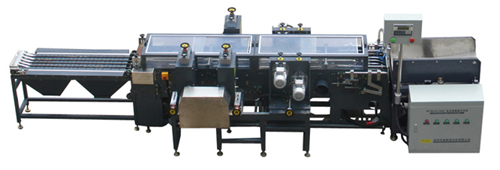

AUTOMATIC PLATE CUTTING MACHINE

Specifications

FUNTION

Applied to the plate: with false pole ear plate total width of 380mm, and remove the false pole ear plate horizontal maximum size 330 (mm), the plate longitudinal largest size 160 (mm), thickness: 1.0-5.0mmspecific to provide the buyer with the drawings in consultation.
System Features Remarks

1. The device uses the main roll forming roll slitting, high precision slitting, no waste generated.
2. Sucker material cutter adjustable spacing compatible slitting nine contiguous part of the plate.
3. Brush photoelectric machine to ensure the safety of equipment performance.
4, The chain support rails for the stainless steel, corrosion-resistant,

5. It has a sub-board automatic counting a set number of sub-board stacking conveyors, put two-piece, very ears slitting scrap automatic transmission collection features.
6. PLC control, high reliability and ease of maintenance.

7. High speed about 60-100 panels per minute.

8. Dust can collect, no waste
Ⅱ, the device basically composed
1, The device configuration               Control cabinet, the material on the nose, vertical roll cut body, transverse roll cut airframe, power plant, brushing nose roller cutting head, the receiving device, the waste collection system.
2, The number of device configuration

(1) Control cabinet: 1.

(2) Feed material head: 1.

(3) The longitudinal roll cut body: 1.

(4) Side brushing head: 3

(5) Lug Brushing head: 2.

(6) Roller cutting head: 1.

(7) Plate rewinding device: 1.
3, Device configuration content
(1) Control cabinet: PLC, text display, solid state relays.

(2) On the material head:  Rack, vacuum, power connection device, the sending device, sucker.
(3) Vertical roll cut body: channel steel, steel plate, stainless steel rails, brushing nose, cut off the head, roller cutting head.
(4) The lateral roll cut body: channel steel, steel plate, stainless steel rails, roller cutting head.

(5) Power plant: steeples gear motor, carbon steel chain, guide device.

(6) Brushing nose: Import roll cutting machine for brushing round brush photoelectric machine.
(7) Roller cutting head: the precision alloy blades, high-precision transmission mechanism.
(8) The plate receipts device: counting sensors, conveyor belt and motor speed.
(9) The waste collection system: the sealing channel, the blade means or belt conveyor means or hopper means, pumping dust inlet.

(10) Operating procedures: Artificial feeding →Brush Top And Bottom Side Plate → Brush both side plate → Brush plate lug →Slitting lug → Automatic pack output (count)
Ⅲ, Equipment Specifications index requirements
1. Equipment Specifications Model: PCRM-020102
2. Fit plate model: Length 160-380mm;Width from 106-220mm;Thickness: 1.0-5.0 mm, specifically to provide the buyer with the drawings in consultation.
3. Production Speed: ≥ 8 0 tablets / M
4.The rejection rate:≤1.0%, the premise of the buyer to provide the plates of the deformation is not greater than0.5mm.

5. Cutter specifications: Φ 150.3XΦ50.83X5.0 (mm ) . ).
6. The main chain Specifications: Pitch 25.4X17.
7. External pumping dust interface size: Φ148 mm.

8. The main motor specifications: gear motor power 2.2KW deceleration 1/30.
9. Power supply and power: AC415V ± 10%, 50Hz, 8kw
10. Negative pressure parameters: maximum flow rate of250m3/ h vacuum (≤ 100KPa)

12 .Weight: ≤3.0 T

13. Equipment Dimensions (L x W x H mm): 6100 x1300 x1400mm

14. Device color: gray and black.

15. Working hours: 24 hours continuous work properly.
Ⅳ, Drawings, manuals, inspection reports, color photographs
1, Operating manual                                                       1 part
2, The product certification                                              1 part
3, The equipment system structure and parts thumbnail          1 part          See operating manual
4, Electrical control schematics, circuit diagrams, pneumatic diagrams
1 part               See operating manual
5,The professional component inspection report
1 part               Chaosisi quality control, quality report
6, Supporting styling equipment, parts factory qualified certificate and manual
  1 part               See operating manual
7,The operation of the equipment system control software
 1 set            Has been poured into the plate roller cutting machine
V.Affirms

Due to the product technological improvements lead to changes in the shape or institutions, resulting in the discrepancy with the information provided hope the buyer not to raise objections.
