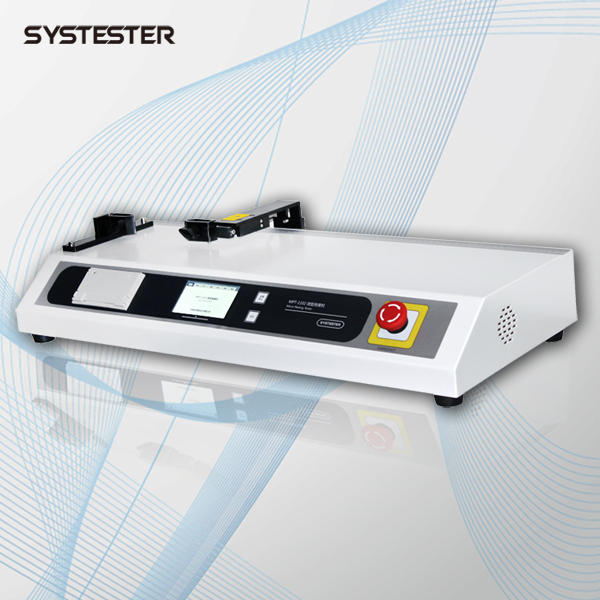

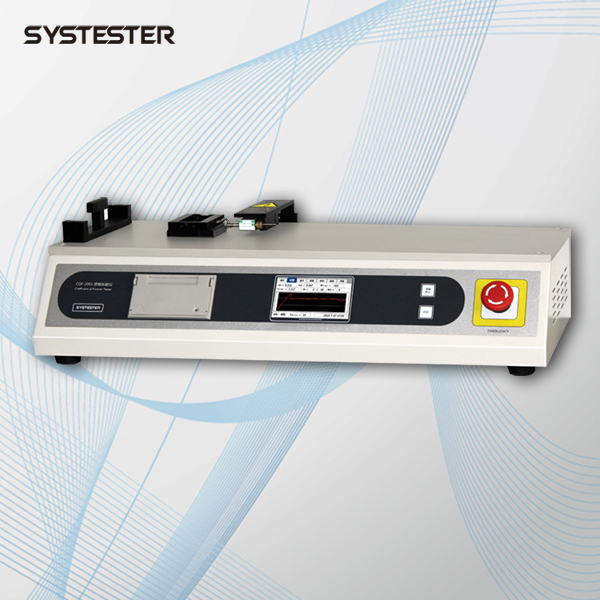

Coefficient of Static & Dynamic Firction Tester of Photographic Films/Hairs/Pipes/Catheter
| Supply Ability: | 10,000 Piece/Pieces per Year |
|---|---|
| Shipping: | FOB:Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Quick Details
- Usage: Abrasion Tester
- Power: Electronic
- Model Number: COF-2002
- Brand Name: SYSTESTER
- Load cell range: 5N,10N,30N,50N,100N customization
- Accuracy: 0.5
- Test distance: 400mm
- Test speed: 0~300mm/min
- Sled mass: 200g,500g customization
- Using: measuring the coefficient of friction of films/package
Specifications
Applied for cAtheter, paper, paperboard, wood, break pad, tyre, windshield Wiper,conveyor belt etc. Other relevant materials with high accuracy(better Than 0.5 of FS)
Main Feature:
1, COF-2002 designed based on ASTM, ISO and GB etc. Multiple standard.
2, Test Speed can be preset freely through touch screen.
3, Micro-printer built in and easy to record result.
4, Sled of Specific weight can be customized.
5, Emergency Button protect user from harm.
6, One Touch to start a new test.
Technical indexes:
Load cell range |
|
0.5 | |
400mm | |
Sled mass |
200g,500g customization |
Test speed |
0~300mm/min |
Sample thickness |
30mm optional |
Power supply |
AC220V 60Hz |
Power consumption |
21W |
Dimension |
mm(H) |
Net weight |
22kg |
