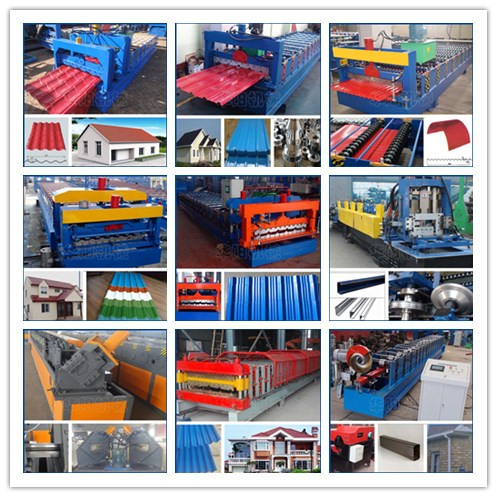

roof wall panel cold roll forming machinfe

FOB Price:	8,900.00 - 19,800.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	tianjin
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	huayang

Quick Details

After-sales Service Provided: Overseas service center available
Warranty: ce certification
Certification: ce 2000

Specifications

Components of production line:
a. Manual uncoiler, loading weight 5t (electric/hydraulic uncoiler for your choice)
b. Feeding platform
c. Roll forming machine
d. Computer control cabinet
e. Hydraulic station
f. Encoder
g. Run-out tables

Configurations
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System
PLC Delta Inverter
Main Frame
250mmH-Beam
Main Power
4 kw
Pump Power
4 kw
Power Supply
380V, 3-Phase,50Hz
Forming Speed
10-12m/min
Roll Station
11 stands
Roller Diameter
70mm
Hydraulic Pressure
10-12MPa
Forming Size
780mm
Feeding Thickness
0.3-0.8mm
Feeding Width
1000mm
Backboard Thickness
14mm
Chain Size
20mm
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
5000×1300×1500mm
Total Weight
4T
