Hangzhou Delan Technology Co., Ltd.
China Manufacturer with main products: WiFi Module, Bluetooth Module, RF Module, APP, Cloud Platform |
Home
>Products Catalog > Low Power High Speed wifi module 802.11b/g/n wifi wireless module antena wifi

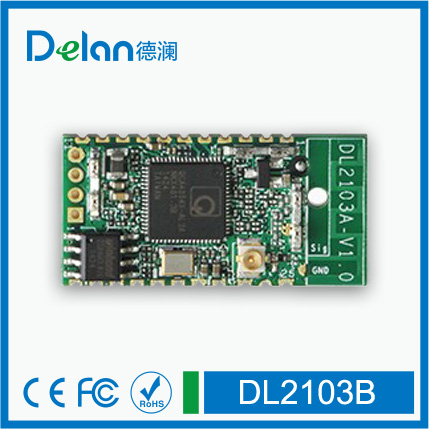

Low Power High Speed wifi module 802.11b/g/n wifi wireless module antena wifi
| FOB Price: | 5.00 - 7.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | Ningbo |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 1.Carton box 2.Customized design |
Quick Details
- Model Number: DL2103A
- Wireless Standard: IEEE802.11b/g/n 2.4G
- Frequency: 2.412GHz - 2.484GHz
- Antenna Type: PCB pin or I-PEX1 connector
- Operating Voltage: 2.9V ~ 3.6V
- Ports: 1 UART and 4 GPIO
- Dimensions: 15mm * 30mm * 3.5mm
- Type: qualcomm4004 wifi module
Specifications
· Smart Gateway
· IOT Products
· Consumer Electronics
· Smart Home Appliances
· Industry Control
· Remote Device Monitoring
Wireless Parameters
Wireless Standard
802.11 b/g/n
Frequency Range
2.412GHz - 2.484GHz
Transmit Power
802.11b: +15+/-2dBm(@11Mbps)
802.11g: +14+/-2dBm(@54Mbps)
802.11n: +13+/-2dBm(@HT20, MCS7)
Receiver Sensitivity
802.11b:-93dBm(@11Mbps, CCK)
802.11g:-85dBm(@54Mbps, OFDM)
802.11n:-82dBm(@HT20, MCS7)
Antenna Option
Built-in: PCB pin
External: I-PEX Connector
Hardware Parameters
Data Interface
UART, GPIO
Operating Voltage
2.9V ~ 3.6V
Operating Current
Consistently sending:peak ~200mA
Normal mode:average ~50mA, peak ~200mA
Low power mode:average ~10mA, peak ~200mA
Operating Temp
-20 °C ~ 70°C
Storage Temp
-45 °C ~ 125 °C
Dimensions and Size
15mm × 30mm × 3.5mm
Software Parameters
Network Type
AP / STA
Security Mechanisms
WEP / WPA-PSK / WPA2-PSK
Encryption
WEP64 / WEP128 / TKIP / AES
Update Firmware
Local wireless, remote
Customization
SDK supplied
Network Protocol
IPv4,TCP / UDP
company information
DL2103A is designed as a WIFI module based on Atheros 4004.It has ultra-small size and supports SMD.The module works as an IOT node and has been widely used in IOT appliances.
Applications
Datasheet
Advantage
(1) We are electron device manufacturer in China, welcome to visit our factory.
(2) We support both OEM and ODM.
(3) We can help you make your logo custom.
(4) We never stop to develop new smart products to satisfy your requirements.
(5) We have a professional team, which can supply you on technical activities. Also can help you to make some modification.
1. We accept T/T, L/C, Western Union, Paypal.
2. The bank fees are the responsibility of buyer.
3. Prices we quoted are correct at this time but may be subject to change after 1 week. Because of the currency fluctuations and the ordered quantity.
