Ruian Litai Machinery Co., Ltd.
China Manufacturer with main products: Four/Three-Station Thermoforming Machine, Plastic Cup Thermoforming Machine, Plastic Cup Production Line, Plastic Lid Thermoforming Machine,... |
14th

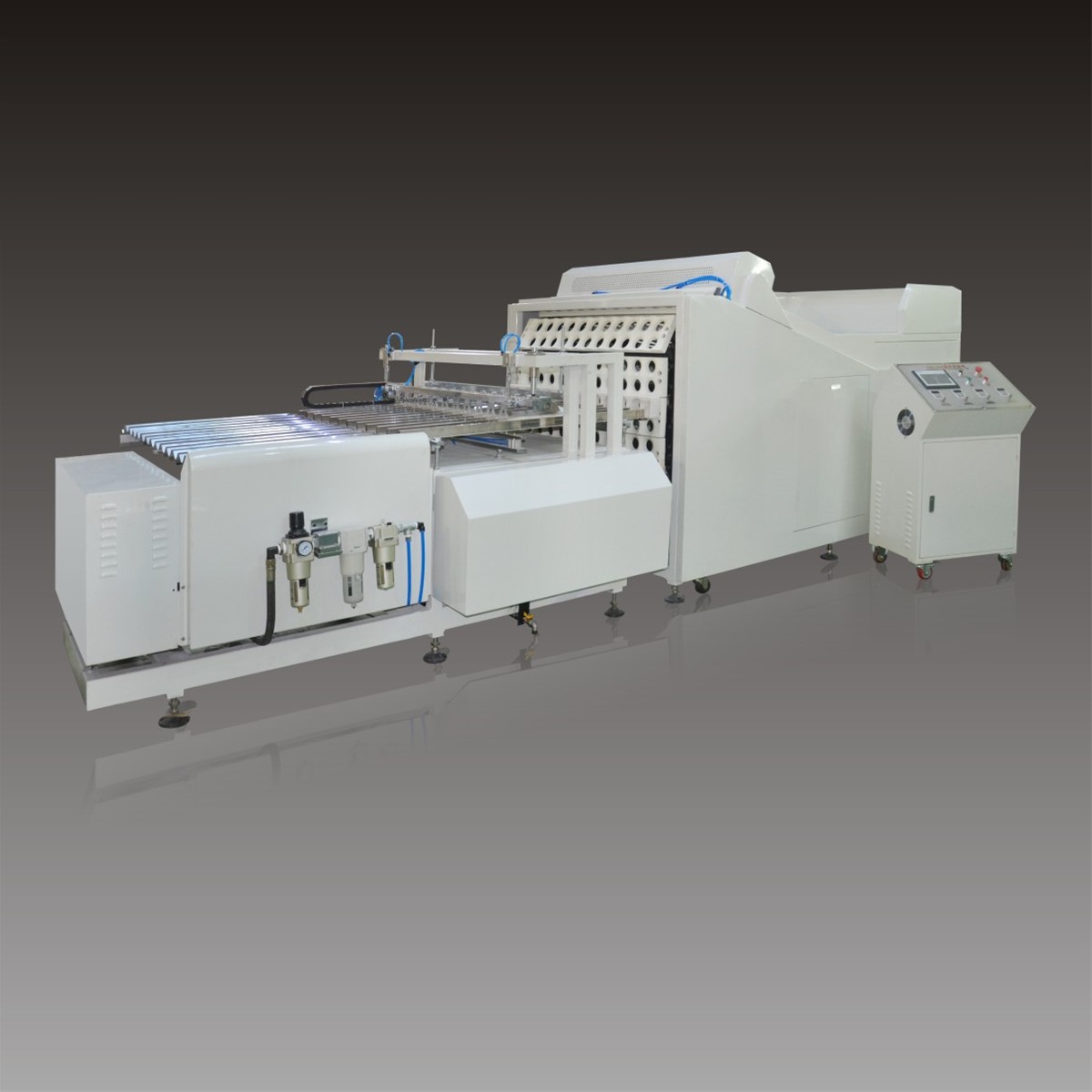

Hole Plate Cup Stacker Machine
| FOB Price: | 13,000.00 - 24,000.00 USD/Set |
|---|---|
| Supply Ability: | 12 Set/Sets per Month |
| Shipping: | 60 Days. FOB Ningbo or Shanghai Port Of China. |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Oil,Film and Wooden Case.(Standard Exporting Packing) |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Model Number: TDB-500
- Brand Name: LITAI
- Production Speed: 500 pcs/min
- Max. Speed: 55 times/min
- Air Consumption: 0.8m3/min
Specifications
Application Area:
Full Automatic Hole Plate Stacker is suitable for stacking different sizes of plastic cups and adopts microcomputer system, operating easily, working stably and high production efficiency. Besides, this equipment solves the problem that it is hard to stack cups which diameter is bigger than height.
Main Technical Parameter:
|
TECHNICAL PARAMETER |
||
|
Model |
TDB-500 |
TDB-1000 |
|
Max. Speed |
55 times/min |
55 times/min |
|
Capacity |
500pcs/min |
1000pcs/min |
|
Air Consumption |
0.8m3/min |
0.8m3/min |
|
Rated Power |
5.5KW |
5.5KW |
|
Power Supply |
AC 380V/50Hz, Three phrases, Four wires |
AC 380V/50Hz, Three phrases, Four wires |
|
Dimension |
L3850×W1680×H1500mm |
L6350×W2250×H1750mm |
|
Weight |
About 2.0T |
About 2.5T |
