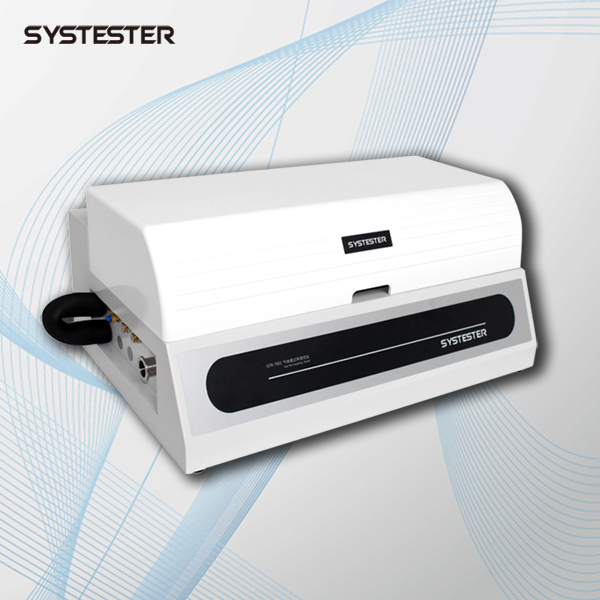

Plastic Films Testing Equipment for Water Vapor Permeability Tester
| Supply Ability: | 10,000 Piece/Pieces per Year |
|---|---|
| Shipping: | Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | WOODEN CASE |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Model Number: WVTR-9001
- Brand Name: SYSTESTER
- Films test range: 0.001-52 g/m2 24h (Standard)
- Package test range: 0.0001~0.5 g/pkg d
- Specimen amonut: 3 specimens, independent
- Temp range: 5~95 degrees celsius
- Temp resolution: 0.1 degrees celsius
- Humisity range: 0%RH,35%RH-90%RH,100%RH, standard condition 90%RH
- Humidity resolution: 1%RH
- Control: computer control
- Using: testing films/package water vapor permeability property
Specifications
Plastic films testing equipment for water vapor permeability tester application:
WVTR-9001 is Based on the electrolytic sensor method and available for the water vapor Permeability test of flexible films, sheeting and packages. It can test 3 Specimens in one operation with independent results.
Plastic films testing equipment for water vapor permeability tester features:
1: Electrolytic Sensor method
2: Own Technology
3: Film and Package test

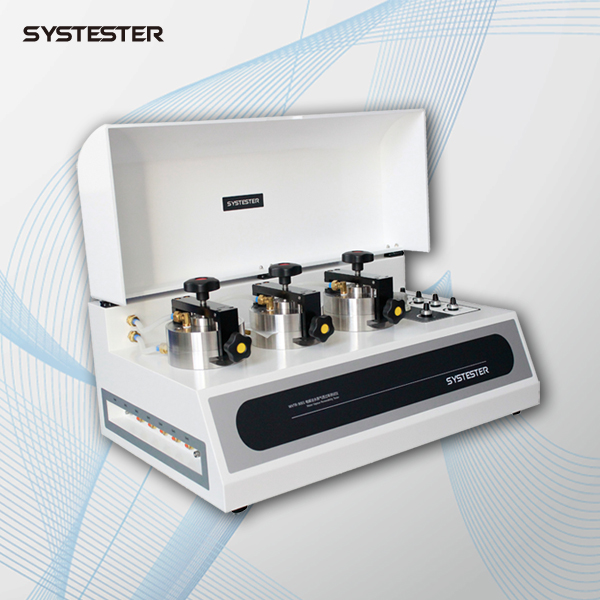

4: 3 specimens Test simultaneously and independently
5:One-button Test, test automatically in whole process
6: Multiple test Modes optional
7: Data curves Display
8: Computer Control
9: Digital flow Adjustment
10: 3 Chambers Temperature sensor
11: Environment Temperature and humidity sensor inside
12: Chambers Water bath technology
13: Unit based on embedded system,24bit - AD
14: Pressure, Ppm water sensor and temperature overload Protection
15: Traceable Reference film calibration
16: Supports DSM System (DSM, lab data management system)
Plastic films testing equipment for water vapor permeability tester technical indexes:
Test range:
Film: 0.001-52 g/m224h (Standard)
0.01-1100 g/m224h (Optional)
Resolution: 0.0001 g/m224h
Package:
0.0001~0.5 g/pkgd
Resolution: 0.00001 g/pkgd
Specimen amount: 3 specimens, independent
Temperature Range: 5C 95C
Temperature Accuracy: ±0.1C
Humidity range: 0%RH,35%RH-90%RH,100%RH, standard condition 90%RH
Humidity Accuracy: ±1%RH
Test area: 50 Cm2
Specimen size:
Film: size: 150 mm X 94mm
Thickness: less 5mm
Package:
Max size: D120mm X 400mm
Carrier Gas: 99.999% Nitrogen
Carrier Flow: 0~200 ml/min
Gas Interface: 1/8 inch
Power Supply: AC 220V 50Hz
Dimension: 730 mm X 590 mm X 350mm
Net weight: 70kg
Plastic films testing equipment for water vapor permeability tester sTandards:
ISO 15106-3, GB/T 21529, DIN 53122-2, YBB 00092003
