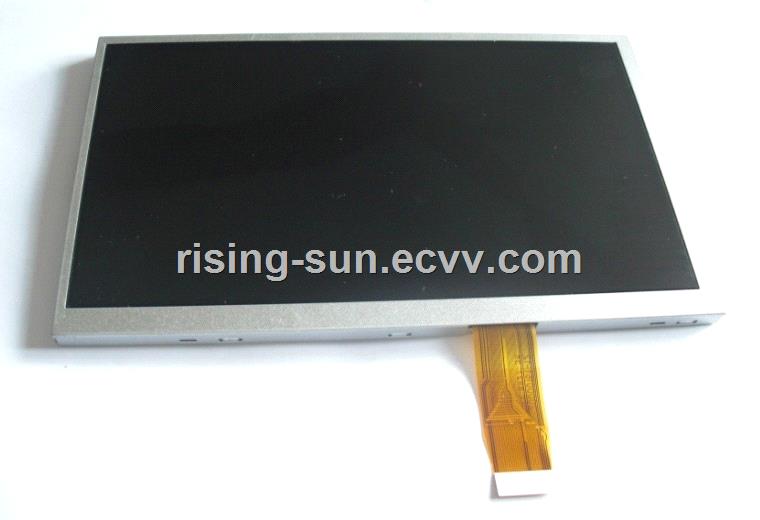

Innolux 7" LCD Screen Display Panel AT070TN07 VD

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

, INNOLUX, 7" TFT-LCD, 480 x 234 WQVGA

MODEL AT070TN07 V.D

Pixel Pitch 0.107*0.370 mm

Panel Composition lcd

Technology a-Si TFT-LCD

Display mode TN, NW, Transmissive

Color Saturation -1%

Response 15/20 (Tr/Td) ms

The Best View 6 o'clock

White Field Chroma X:0.310; Y:0.330

White Field Dynamic 1.33 (9 points)

The kind of Singnal Analog

Interface Analog

Singnal Interface Definition BLE-2PINS-AC

Drive-screen voltage (3.3/5.0)/5.0/15.0/-10.0V (VCC/AVDD/AVDD/VGL)

Input Current (NA/3)/17/0.2/0.8mA (ICC/IDD/IGH/IGL)

Brand of Singnal Interface JST

(Pitch of Singnal Interface 3.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 2 pins

Operation Temperature -30 °C ~ 85 °C

Storage Temperature -30°C ~ 85°C

Active Area 154.08*86.58 mm

Display Area 156.5*89.00

Outline 164.90* 100.00*5.70 mm
