Home >Products Catalog > Amplifier > Single Channel 240W Class-D Power Amplifier

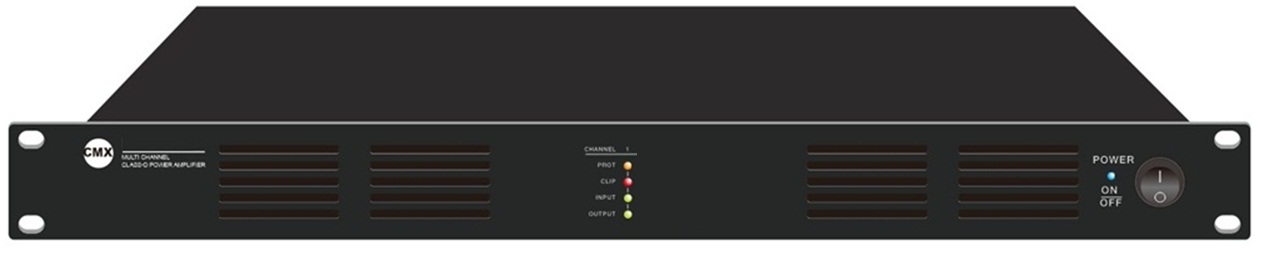

Single Channel 240W Class-D Power Amplifier

FOB Price:	165.23 - 168.52 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	Guangzhou Port
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Professional Amplifier

Price:

Min. Order:100 Pieces
DMX 4/8 Way Signal Amplifier

Price:

Min. Order:2 Pieces
Thinuna DA- Modular constant voltage digital am...

Price:140.00-560.00 USD/Piece

Min. Order:50 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	10pcs/carton

Quick Details

Model Number: DA-240
Brand Name: CMX
Model: DA-240
Description: Single Channel 240W Class-D Power Amplifier
Rated Power Output: 240W
Speaker Output: 8ohm & 100V
Frequency Response: L/H Cut OFF 20Hz-20KHz (+1/-2dB); L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input: 0.775V, 0dBu, balanced phoenix connector
Input Impedance: 10Kohm
THD: <0.1% (1KHz/-3dBv, 100W)
S/N Ratio: >80dB
Crosstalk: >60dB, 1KHz, Max output

Specifications

DA-240

Single Channel 240W Class-D Power Amplifier

Features:

Switching power technology digital power amplifier

Class-D PA power amplifier of minimum power consumption

1RU height for less rack space and less heat generation

Single channel power amplifier into 19" rack mount unit

Rated power output at 240W

Speaker outputs 8Ω/100V

Balanced line input by phoenix connector

Each input with separate gain control.

Each channel with high-cut filter.

Built-in auto standby feature to save power consumption

Separate indicators for protection, clip, input and output

Complete short circuit, overload, high temp, clip and DC protection

Wide AC input switchable between 115V and 230V

24V DC input is included.

Description:

The DA range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.

The DA-240 is of rated power output at 240W, so it could be used as digital public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.

There are one balanced inputs by phoenix connector with gain control. Speaker outputs both by 100V & 4-16ohms. The built-in high-pass filters could be enabled or disabled through the dip switch pre-setting.

Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection.

Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation. 24V input is included.

Specification:

Model	DA-240
Description	Single Channel 240W Class-D Power Amplifier
Rated Power Output	240W
Speaker Output	8Ω & 100V
Frequency Response	L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input	0.775V, 0dBu, balanced phoenix connector
Input Impedance	10KΩ
THD	<0.1% (1KHz/-3dBv, 100W)
S/N Ratio	>80dB
Crosstalk	>60dB, 1KHz, Max output
Power Consumption	300W
Power Supply	AC input switchable between 115V & 230V, 50-60Hz 24V DC input included.
Dimension	482(W)x420(D)x44(H) mm
Weight	4.5kg
