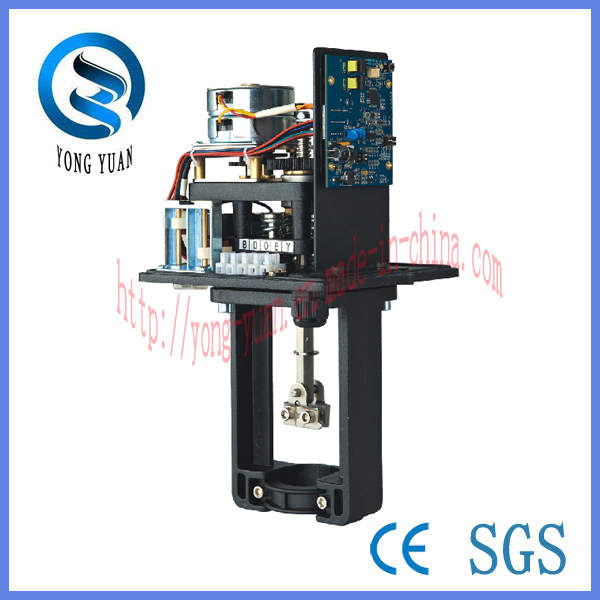

HVAC Linear Motorized Valve Electric Actuator (VA-7200)
| Supply Ability: | 10,000 Piece/Pieces per Year |
|---|---|
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Model Number: VA-7200
Specifications
Product description
VA-7200 series actuators are one kind of the electric machine and matched with VA-3100 series valves. There has two types one is the ON/OFF valve and another is analogue valve. It also can be matched with the other valves by dfferent linkers.
Product features
Support material: die cast aluminum, Outer Cover material: PC engineering plastics;
Low power consumption, low noise, high output torque;
Forward and inverted direction action to match the different valve body;
Flexible combination with valve body to meet the needs of different pressure difference;
Magnetic hysteresis clutch motor, with a hysteresis clutch protection function, can produce a stable torque in the case of a standstill so that the valve can rest at any position;
The spring clip and the side clip connection valve body can choose, easy to assemble and disassemble;
The manual adjustment function, convenient installation and maintenance;
It can replace the fixed bracket according to demand, to fit a variety of body.
Technical parameters
|
|
VA-7200-2500 | VA-7200-4000 |
| Driving Force(N) | 2500N | 4000N |
| Job type | Analog quantity | |
| Working Voltage | 24VAC±15% | |
| Power Consumption | 12VA | |
| Weight(kg) | 3.75 | |
| Input \ feedback signal | 0~10V or 2~10V | |
| Input / output signal | 0~20mA or 4~20mA | |
| Voltage input impedance | >100k | |
| Current input impedance | <0.05k | |
| Sensitivity | ±0.2V | |
| Valve connection size | Spring buckle, can also choose a bayonet splint | |
| Max Journey Time(mm) | 45 | |
| Running speed(Mm/s) | 0.23(50Hz) | |
| Height(mm) | 345 | |
| Working Temperature | 1oC~60oC,10%~95%RH Anti-Dewfall | |
| Storage Temperature | 20oC~85oC | |
| Applicable valve range | Cast steel flange valve | |
