Specifications

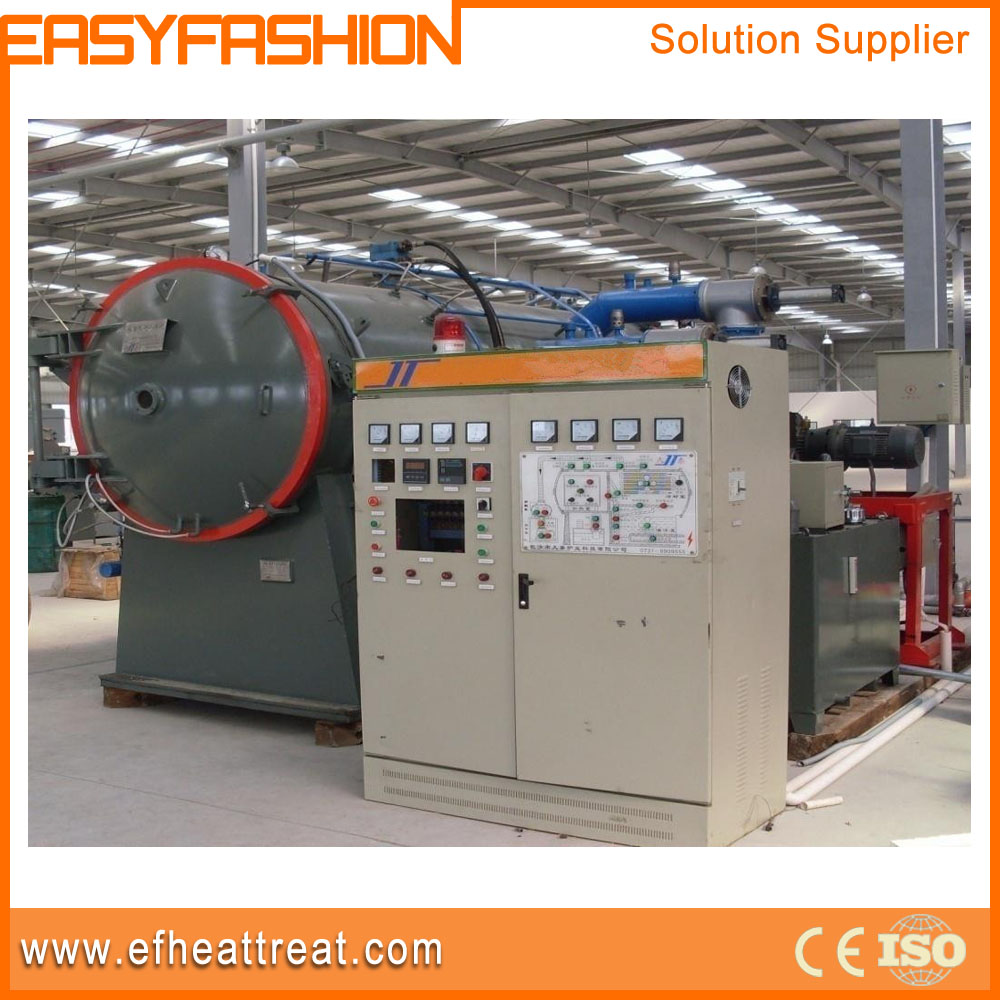

I. Overview
It is mainly applied to quenching heat treatment of high-speed steel, die steel, Martensitic stainless steel,
alloy steel, titanium alloy, etc.. Various technology
choices and processing application range are provided with full-automatic programmable controlling.
II. Technical Parameters
|
Specification/ Model |
EF-ZKQY-50 |
EF-ZKQY-100 |
EF-ZKQY-150 |
|
Effective heating zone (mm) |
550*380*250 |
1000*600*450 |
1500*750*600 |
|
Loading capacity (kg/batch) |
100 |
300 |
500 |
|
Heating power (kW) |
70 |
100 |
120 |
|
Furnace temperature homogeneity() |
±5 |
||
|
Ultimate vacuum degree |
2x10-1 |
||
|
6.7*10-3 |
|||
|
Pressure rising rate (Pa/h) |
≤0.67 |
||
|
Gas cooling pressure (bar) |
≤2 |
||
|
Max. Temperature (°C) |
1350 |
||
|
Heating elements |
Graphite and molybdenum |
||
|
Note: The above is standard configuration and can be adjusted based on customer requirements. |
|||
III. Features
1. With compacted double chambers structure, vacuum oil quenching furnace is integrated with
optimal layout for space efficiency.
2. Hearth of this vacuum quench furnace is heated as a whole unit. Internal charging trays are in
stacking structure. Feeding speed is frequency regulated in slow-fast-slow mode, thus ensuring
stable feeding and reduced time.
3. Unique gas cooling system comes with built-in air channel for maximized cooling efficiency.
4. This vacuum oil quenching furnace is fitted with high efficiency external oil cooling circulation
system for quench.
5. Oil tank has large capacity. Inside the tank, there are nozzles in various directions. As a result,
there will be intense convection and turbulence during oil spraying, whereby catering to quench
for large workpiece.
6. Vacuum degree and air cooling pressure are allowed to be adjusted to fit specific materials.
7. Simple operation and flexible input ensure stable performance. Manual and automatic operation
can be switched readily. Moreover, alarms will be triggered automatically on failures of the vacuum
oil quench furnace.
