Home >Products Catalog > Sealing force Tester > Ointment Tube or Medical Package Sealing Strength Property Tester

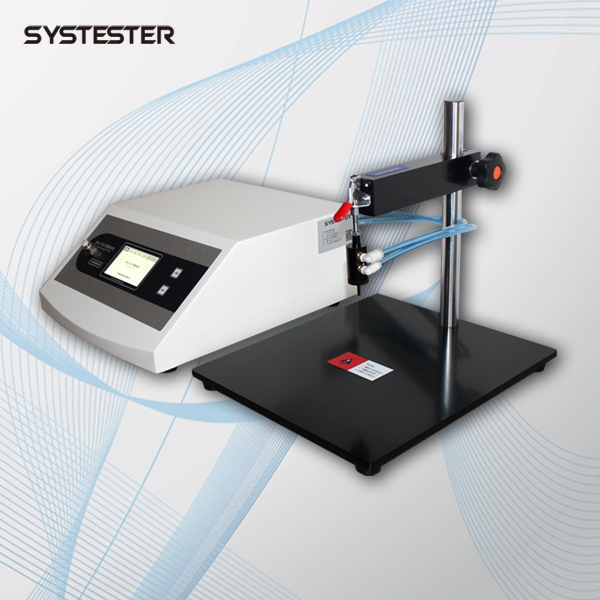

Ointment Tube or Medical Package Sealing Strength Property Tester

Supply Ability:	10,000 Piece(s) per Year
Shipping:	POL:Qingdao
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Wooden case

Quick Details

Usage: Strength Testing Machine
Power: Electronic
Brand Name: SYSTESTER
Warranty: 1
weight: 42
Model Number: PKG-1201
Testing range: 250kPa 800kPa 1600kPa
Gas source: 0.4MPa ~ 1.1MPa ( Provided for yourself )
Unit dimension: 345mm(L)*410 mm(B)* 170mm(H)
Package fixture dimension: 300mm(L)*350mm(B)*330mm(H)
Net wrt: 25kg
Using: For determining the ability of packages to withstand internal pressurization

Specifications

ASTM D3330 Micro-Peeling Force & Strength Tester of Release Paper Or Other Flexible Package
ApPlication:
for determining the ability of Packages to withstand internal pressurization. for determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and Enclosed within restraining plates.for the measurement of leaks in nonporous Film, foil, or laminate flexible pouches and foil sealed trays, which may be Empty or enclose solid product.

ASTM D3330 Micro-Peeling Force & Strength Tester of Release Paper Or Other Flexible Package
FeAtures:

1. Our Own technology.

2. Touch screen operation.

3. Real color TFT LCD display.

4. Result, curve display.

5. High speed sampling for test accuracy warranty.

6. with and without restraining plates test is available.

9. Burst, standard creep, creep-to-burst test.

10. over pressure protection.

11. Low power consumption.

12. RS232 communication port.

13. Professional computer software support.(optional)

ASTM D3330 Micro-Peeling Force & Strength Tester of Release Paper Or Other Flexible Package
TecHnical indexes:

Testing Range: 0 ~ 250kPa

0 ~800kPa

0~1600kPa

Gas source: 0.4MPa ~ 1.1MPa ( Provided for yourself )

Unit dimension: 345mm(L)410 mm(B)170mm(H)

Package fixture size: 300 Mm(L)350mm(B)330mm(H)

Power supply: AC 220V 50Hz

Net weight: 25kg

Ointment tube or medical package sealing strength property tester sTandards:

GB 18454,GB 19741,GB 10440,GB 17447,ASTM F2054,ASTM F1140,ISO 11607-1,ISO 11607-2,GB/T 17876,GB/T 10004,GB/T 10005,BB/T 0003,BB/T 0025,QB/T 1871,YBB 00162002,YBB 00252005
