Zibo Dragon Brand Cable Technology Co., Ltd.
China Manufacturer with main products: Power Cable, Electrical Wire |
various types of xlpe and pvc insulation power cable
| FOB Price: | 0.10 - 10.00 USD/Meter |
|---|---|
| Supply Ability: | 5,000 Meter per Day |
| Shipping: | by sea or as your requirement |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden drum or as your requirement |
Quick Details
- Jacket: PVC
- Conductor Material: Copper
- Application: Industrial
- Type: Medium Voltage
- Insulation Material: XLPE
- Model Number: YJV
- Brand Name: DRAGON CABLE
- Color: black
- Packing: wooden drum
- standard: IEC60502
- lead time: 2 weeks
Specifications
1.Feature

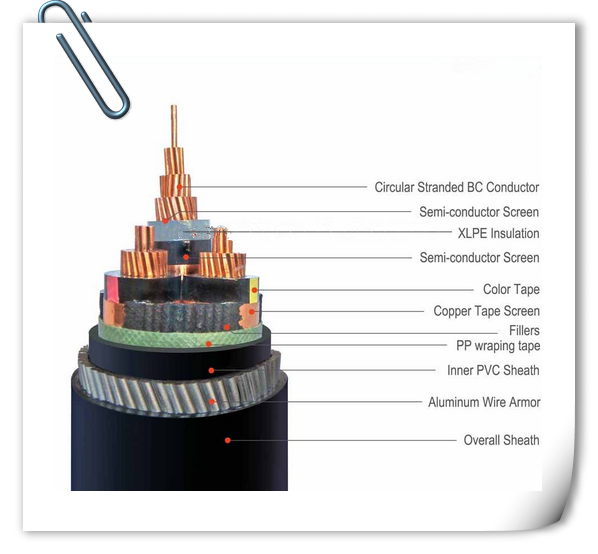

XLPE power cable: Cu/XLPE/PVC
XLPE Power Cable Features:
Excellent electric and mechanical properties;
Powerful resistance against chemical corrosion;
High performance of heat resistance and environmental stress resistance;
No restriction of different levels for laying
2.Parameter
600/1000 PVC inuslated and sheathed power cable:
Rated voltage: 600/1000V
Conductor: BS 6360 Class 2, standard copper or alminum(IEC 60228)
Insulation: BS 6746 TI I PVC comppound
Insulation Color: Standard
Sheath(jacket): BS6746 TM1 PVC Compound
Operating temperature:70 °c
Mini bending radius: 10*overall insulated diameter
Standard: BS 6346 and IEC 60502
600/1000 XLPE inuslated and PVC sheathed power cable:
Rated voltage: 600/1000V
Conductor: BS 60228 Class 2, standard copper or alminum(IEC 6360)
Insulation: Cross linked polyethylene(XLPE)
Insulation Color: Standard
Sheath(jacket): BS6746 TM1 PVC Compound
Operating temperature: 90 °c
Mini bending radius: 10*overall insulated diameter
Standard: BS5467 and IEC 60502
600/1000 PVC inuslated and sheathed, steel wire armoured power cable:
Rated voltage: 600/1000V
Conductor: BS 6360 Class 2, standard copper or alminum(IEC 60228)
Insulation: BS 6746 TI I PVC comppound (XLPE Optional)
Insulation Color: Standard
Armouring: Single layer of galvanized steel wire(BS 1442, 443)
Sheath(jacket): BS6746 TM1 PVC Compound
Operating temperature: 70°c
Mini bending radius: 15*overall insulated diameter
Standard: BS6346 and IEC 60502
600/1000 PVC inuslated and sheathed, steel tape armoured power cable:
Rated voltage: 600/1000V
Conductor: BS 6360 Class 2, standard copper or alminum(IEC 60228)
Insulation: BS 6746 TI I PVC comppound (XLPE Optional)
Insulation Color: Standard
Armouring: Double layer galvanized steel tape
Sheath(jacket): BS6746 TM1 PVC Compound
Operating temperature: 70°c
Mini bending radius: 15*overall insulated diameter
Standard: BS6346 and IEC 60502
600/1000 XLPE inuslated and sheathed, aluminum wire armoured power cable:
Rated voltage: 600/1000V
Conductor: BS 60885 Class 2, standard copper or alminum(IEC 60228)
Insulation: Cross linked polythylene(XLPE)
Insulation Color: Standard
Armouring: Round aluminum wire
Sheath(jacket): BS6746 TM1 PVC Compound
Operating temperature: 90°c
Mini bending radius: 15*overall insulated diameter
Standard: BS6346 and IEC 60502
