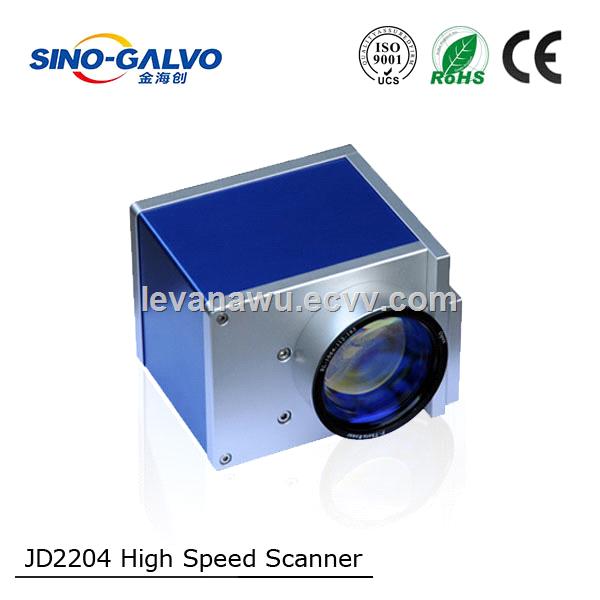

The Most Cost-Effective Laser Marking Scanhead

FOB Price:	0.10 - 1.00 USD/Set
Supply Ability:	1,200 Set/Sets per Month
Shipping:	Door to door express by dhl, fedex, ups, tnt
Payment Terms:	L/C, T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton

Quick Details

Model Number: JD2204
Brand Name: Sino-Galvo
Warranty: 18 months
Beam aperture: 10mm
Marking speed: 6000mm/s
Certificate: CE; ROHS;ISO
Laser Type: Fiber Laser, CO2, YAG and so on
Color: Blue & Silver
Frequency: ≤1000Hz
Long-Term Drift Over 8 Hours: <0.5mrad
Beam Displacement: 13.4mm
Linearity: 99.9%

Specifications

Feature:
1, A extremely economic Galvanometer Scanner.
2, The input aperture is 10mm.
3, It mainly used in high speed and marking on the fly.
4, It has a superior performance of zero drift, higher speed, lower temperature and stronger anti-interference.

Motor Specification:

Working Temperature	0-45°C
Linearity	99.9%
Setting Time	≤ 0.4ms
Scale Drift	40PPM/°C
Zero Drift	<15μRad./°C
Long-term Drift Over 8 Hours	<0.5mRad
RMS Current	3.0A
Peak Current	15A(Max)
Maximum Scan Angle	±15°
Storage Temperature	-10 to +60°C
Resolution	12μrad
Repeatability	8μrad
Input Aperture	10.0mm
Beam Displacement	13.4mm
Motor Weight	120g
Frequency	≤800Hz

Servo Driver Board Specification:

Input Voltage MAX.RMS		±15VDC
Interface Signals	Digital	XY2-100
	Analog	±5V, ±10V
Analog Signal Input Resistance		200K±1% Ω
Position Signal Input Resistance		1K±1% Ω
Position Signal Input Scale Factor		0.5V/°
Position Signal Output Scale Factor		0.5V/°
Working Temperature		0-45°C
Dimension(L×W×H)		80×54×33mm

Our Services
Sino-Galvo makes the following commitments for products that you purchase from us:
1. We would appreciate any of your suggestions for helping us to keep improving our service and products.
2. Scanning mirrors and housing of galvo scanners are beyond of warranty and replacement.
3. Before or after purchasing our galvo scanner, if you have any technical issues, please send e-mail to our service mailbox, we will give you professional reply in time.
4. If you are not satisfied with our products, we will provide free exchange service within 3 months.
5. We will provide free repair service for what you have purchased for 18 months.
6. After purchasing our products, if you have any questions, please call our service hot-line: 86-10-62979055/62979755.
7. We commit the maintenance service within 48 hours after receiving the products.
8. Damages caused by unauthorized tearing of the seal or replacing of the parts are beyond of warranty.
9. Sino-Galvo guarantees that every set of galvo scanner are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
