Superior quality and high performance vacuum induction graphite film carbonization furnace

FOB Price:	30,305.00 - 75,760.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	by sea full container loading
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	standard export packing by sea

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE & ISO
Weight: regular
Dimension(L*W*H): 600*600*1600mm
Power(W): 150kw
Voltage: 380v input 50/60Hz 3 phase
Model Number: NT-SMMTH-60/160
Brand Name: no brand
Usage: Heat Treatment Furnace
Type: Induction Furnace
Condition: New
Model no: NT-SMMTH-60/160
Power: 150kw
voltage: 380v 3 phase 50/60Hz input
Max. temperature: 1600 degree celsius
Working size: 600*600*1600mm

Specifications

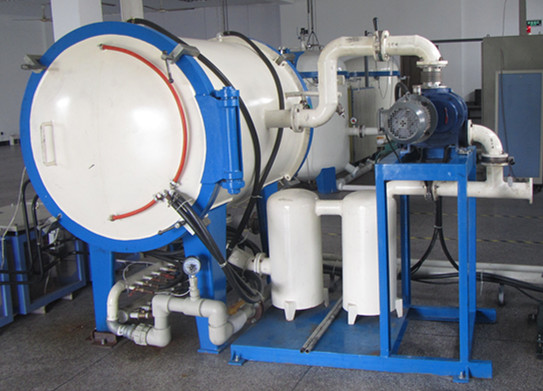

Graphite film carbonization furnace

●

For materials with high thermal conductivity (PI membrane) vacuum carbonization treatment.

●Feature:

1.High thermal conductivity vacuum carbonization treatment is the key equipment to produce high performance

heat conductive film, the front door or double door in the front or back, PI membrane carbonizing by this

equipment, With excellent resistance structure and density. It can realize continuous vacuum

carbonization-sintering craft; equipped with decoking system, strengthen the decoking effect, furnace

atmosphere is more stable, easily control product quality, extending the service life of the carbon felt and the

heating material.

2.Adopting impedance heating, long service life of graphite tube heating, excellent efficiency heating, maintain conveniently. It can insure the uniformity in the vacuum state equipping with excellent Heating uniform, stable insulation and temperature measurement system, advantage furnace hearth design, reasonable heating structure and excellent material. Adopting temperature-measurement element of domestic and international brand to insure the accuracy of temperature measurement. Advantage temperature-control system, importing digital intelligent temperature control table, Communicating with the real data PLC, high precision automatic temperature control system can complete the process, according to the given temperature curve heating, and can store four 40 different heating craft curve. Horizontal structure with single chamber, equipment layout is reasonable and compact, small occupying area

3.Advananced automatic control, completely automatic control and protection system of PLC water, electric and gas, PLC to achieve safety chain, with super temperature, the sensor is broken even, water pressure, the furnace body overpressure, water flow, water temperature is too high sound and light alarm. Environmental protection, energy saving, non purification of the essence of the vacuum exhaust gas, effective protection of the normal operation of the vacuum pump and a good effect of the decoking

4.The cooling of the furnace body is cooled by natural cooling, and the low temperature section can be cooled by filling the inert gas with positive pressure to speed up the cooling rate. Exclusive design of the furnace body explosion-proof valve, safe and reliable.

●Technology parameter:

Model	NT-SMMTH-40/160	NT-SMMTH-50/120
Rated temperature	1600℃
Ultimate temperature	1650℃
Temperature-control accuracy	≤±1℃
Rated power(KW)	100	120	150
Rated power supply voltage(V)	380
Rated heating voltage(V)	Confirming according to the setting, equipped with the front furnace transformer
Vacuum and limitation	40pa(vacuum state)
Working-area size(mm)	4004001600	5005001200	6006001600
Control type	Manual/automatic
Vacuum system	Rotary vane vacuum pump or valve of Roots vacuum pump
Working atmosphere
