D1 Pipelines Porosity Holiday Detector

FOB Price:	1.00 - 1,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	5-10 days after your payment
Payment Terms:	L/C, T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Human Body Elements Analysing Instrument

Price:

Min. Order:1 Set
Fat Analyzer Card

Price:

Min. Order:
HA Filler Dermal Filler 100%Pure Cross Linked H...

Price:25.00-90.00 USD/Piece

Min. Order:5 Pieces
Weight Control Tester, Fat Tester, Beauty Teste...

Price:1.20-1.80 USD/Piece

Min. Order:1,000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	carton box, plastic bags, wooden cases or as your requirement

Quick Details

Properties: House-Service Detector Tester
Type: pinelines detector
Model Number: ZM
Brand Name: China Coal
Product name: D1 Pipelines Porosity Holiday Detector

Specifications

chinacoal13

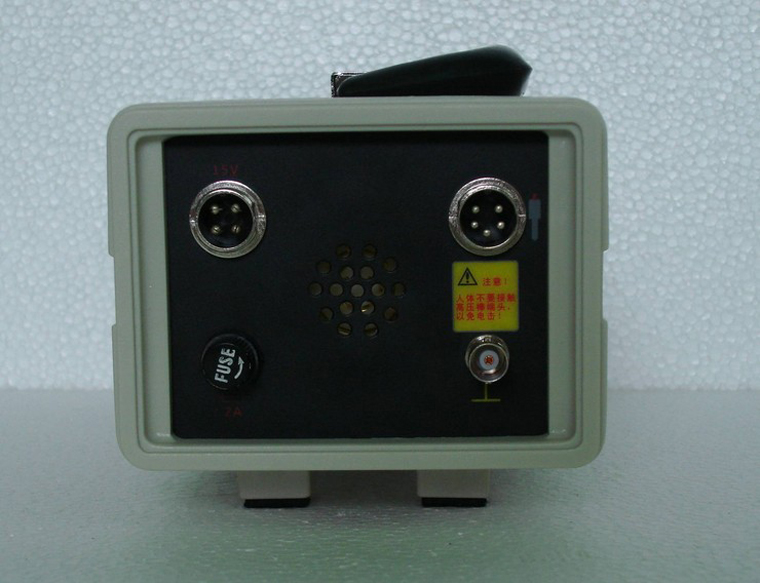

D1 Pipelines Porosity Holiday Detector

Details:

Function

D1 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment.

Characteristic
1. Low power consumption, small size, light weight;
2. Simple operation;
Main technical index
1. Measuring range:A:0.03-3.5mm(Epoxy coal tar pitch medium)
B:3.5-10.mm(Petroleum asphalt medium)
C:0.03-10.mm(Epoxy coal tar pitch, Petroleum asphalt medium)

3. Output high voltage:A:0.5-15KV
B:15-35KV
C:0.5-35KV

4. Display:pointer

5. High voltage control system:Ordinary potentiometer adjustment

6. DC supply:12v

7. Consumption:＜5w

8. Alarm delay:1-2s

9. High voltage probe:Electronic high voltage generator

10. Packing:metal chest

11. Main dimension: 165mm×155mm×68mm

12. Weight:1.5kg(Including battery)

Accessories

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual
Principle
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.

Measuring range	0.03-3.5mm(Epoxy coal tar pitch medium)
Output high voltage	0.5-15KV
Display	pointer
High voltage control system	Ordinary potentiometer adjustment
DC supply	12v
Consumption	＜5w
Alarm delay	1-2s
High voltage probe	Electronic high voltage generator
Packing	metal chest
Main dimension	165mm×155mm×68mm
Weight	1.5kg(Including battery)
