Glsun Science & Tech Group Co., Ltd.
China Manufacturer with main products: Optical Switch, Optical Isolator, CWDM/DWDM, Splitter, EDFA, MEMS VOA, Optical Circulator, OTDR |

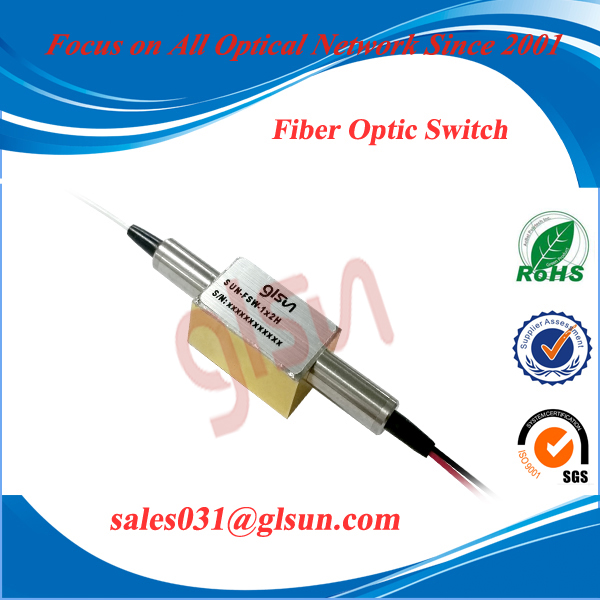

GLSUN 1x2H Fiber Optical Switch
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | Within 7~30 days upon getting payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangxi in China |
| Packaging Details: | by standard carton box, 1 piece in 1 box |
Quick Details
- Brand Name: GLSUN
- Wavelength: 1260~1650
- Data Rate: N/A
- warranty: 1 year
- Connector: as requested
- Model Number: SUN-FSW-1x2H
- Wavelength Range: 1260 ~ 1650
- Test Wavelength: 1310 / 1550
- Insertion Loss 1, 2: Typ: 0.8 Max: 1.0
- Voltage: 3V OR 5V
- Switch type: Latching or Non-latching
Specifications
GLSUN 1x2H Optical Switch Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
GLSUN 1x2H Optical Switch Applications
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)
Network Security and Monitoring
GLSUN 1x2H Optical Switch Specifications
Parameters |
Unit |
SUN-FSW-1x2H |
Wavelength Range |
nm |
1260 ~ 1650 |
Test Wavelength |
nm |
1310 / 1550 |
Insertion Loss 1, 2 |
dB |
Typ: 0.8 Max: 1.0 |
Return Loss 1, 2 |
dB |
SM 50 |
Crosstalk 1 |
dB |
SM 55 |
PDL |
dB |
0.05 |
WDL |
dB |
0.25 |
Repeatability |
dB |
0.02 |
Operating Voltage |
V |
3.0 or 5.0 |
Durability |
Cycles |
10 Million |
Switching Time |
ms |
8 |
Optical Power |
mW |
500 |
Operating Temperature |
-20 ~ +70 | |
Storage Temperature |
-40 ~ +85 | |
Relative Humidity |
% |
5 ~ 95 |
Weight |
g |
14 |
Dimension |
mm |
(L )22.5*(W)11.8*(H)10.2 0.2 |
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. | ||
GLSUN 12H Optical Switch Ordering Information: SUN-FSW-1*2H-A-B-C-D-E-F-G
A |
B |
C |
D |
E |
F |
G |
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
SM: SM, 9/125 X: Others |
3: 3V 5: 5V
|
L: Latching N: Non-latching |
1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others |
25:250um 90:900um X: Others |
05: 0.5m125px 10: 1.0m125px 15: 1.5m125px X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
