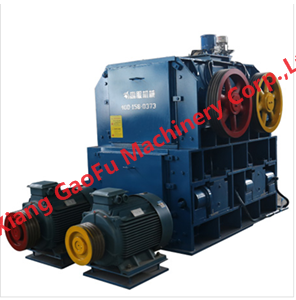

Large capacity of roller crusher for coal GF4PG-450

FOB Price:	20,000.00 - 100,000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	40days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Waterproof or wooden box

Quick Details

After-sales Service Provided: No overseas service provided
Warranty: 1 year
Certification: CE TUV ISO9001
Weight: 40700kg
Dimension(L*W*H): 2500*4360*2800mm
Model Number: GF4PG-450
Brand Name: GaoFu
Capacity(t/h): 450T/H
Power(W): 320KE
Motor Type: AC Motor
Application: Mainly used to crush shale,slag,coke, the limestones
Type: Roller Crusher
Condition: New

Specifications

GF series of toothed roll crusher is dedicated to circulating fluidized bed boiler in thermal power plant.
Four-roll crusher is a new type crusher which developed by Gao Fu engineers after a lot of market research and technical innovation, which solved the ring hammer crusher's mainly problems gluing, plugging, repeated crushing, big vibration, high noise, more dust, poor efficiency, high power consumption, high operating costs and so on, and also improved staff's working condition. Which especially suitable for coal gangue, lignite, peat's crushing.
Four-roll crusher adopts single or double motor to respectively drive toothed rollers at both sides through the power vee belt, to make the rollers rotate toward each other. Material directly falls into for the size in accordance with two teeth roll gap, exceed the gap's material are crushed by rollers of splitting, breaking, and striking then falls to meet the granularity's requirement

Four-roll crusher series(charging particle size<=250,discharging particle size<=10)
Model	Production capacity(T/H)	Motor model	Power(kw)	Outer sizeLWH(mm)	Weight(kg)
GF4PG-90	70-100	Y2-250M-6	37*2=74	210024502400	16100
GF4PG-120	100-130	Y2-280S-6	45*2=90	210027502400	18500
GF4PG-150	140-160	Y2-280M-6	55*2=110	210030002800	21000
GF4PG-180	160-190	Y2-315S-6	75*2=150	250030002800	25000
GF4PG-200	180-220	Y2-315S-6	75*2=150	250031002800	26500
GF4PG-250	220-260	Y2-315M-6	90*2=180	250033302800	28100
GF4PG-300	260-310	Y2-315L1-6	110*2=220	250037302800	31200
GF4PG-350	300-360	Y2-315L2-6	132*2=264	250038602800	32300
GF4PG-400	350-410	Y2-315L2-6	132*2=264	250041602800	36500
GF4PG-450	420-460	Y2-355S-6	160*2=320	250043602800	40700
