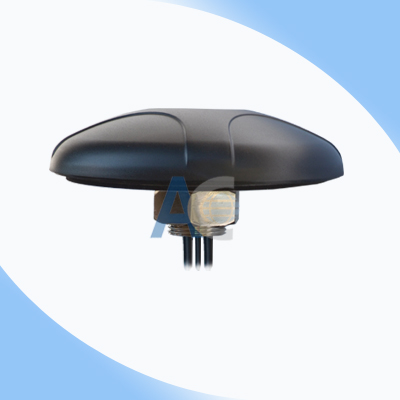

3 in 1 combo GPS WIFI GSM screw ABS antenna

Payment Terms:	T/T, Western Union, Other, paypal

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Electrical


GPS Part:
Frequency Range	1575.42MHZ±3 MHz
V.S.W.R	2.5
Polarization Type	RHCP
Impedance	50Ω
LNA Gain	28±2dB Typical
Noise Figure	1.5dB
V.S.W.R	＜2.0
DC Voltage	2.2-5.0V
DC current	5-15mA
GSM Part:
Frequency range	824-960/1710-2170MHz
V.S.W.R	2.0:1
Gain	3dBi
Polarization	Linear
Impendance	50Ω
WIFI Part:
Frequency range	2400-2483MHz
V.S.W.R	2.0:1
Gain	3dBi
Polarization	Linear
Impendance	50Ω
5.8G Part:
Frequency range	5150-5850MHz
V.S.W.R	2.0:1
Gain	3dBi
Polarization	Linear
Impendance	50Ω
Mechanical
Housing	Black
Cable	RG316/RG178/RG174/RG58U(can be customization)
Length	3/5M(can be customization)
Connector	SMA Male(can be customization)
Working Temp	-40℃~+85℃
Humidity	55%-75%RH
Waterproof	IP67
Antenna Radome Material	ABS
Mount way	Screw
Antenna Dimension	Ф143.6×65 mm
Weight	1.2KG
