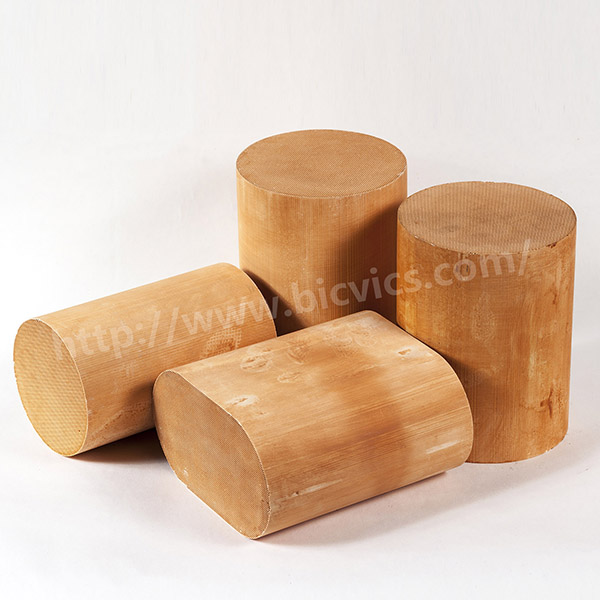

Honeycomb Ceramics Three-Way Catalytic Converter for Automobile Exhaust Purifier
| Supply Ability: | 500,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 7-15 days |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, Eastern Europe, Mid East, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton |
Quick Details
- Warranty: 80000Miles
- Brand Name: Zidi three way catalysts
- Type: Catalytic Converter
Specifications
Monolith catalysts are made of
*We can produce 100CPSI, 200CPSI,400CPSI,600CPSI can be in the shape of round
*Specification can be customized, as
*Can be coated with the catalyst and the precious metal as the
They
Monolith Catalysts Honeycomb has the unique construction, excellent surface function and thermal property, was widely used in the automobile tail gas purification, chemical effluent gas purification, chemical catalysis, connecting combustion, melt metals and thermal medium filtering etc.
Application: Automobile exhaust purification catalyst carrier, suitable for Automotive vehicle exhaust purifiers (European standard) supporting
Specifications:
*Pore density: 600 cells/square inch, 25 cells/square inch
*Materials include cordierite, mullite cordierite, mullite and high alumina
*Pore shapes: Circular, rectangular and
*Product section: Circular, square, rectangular, oval, lane-shape and special-shape
*Max. Outside dimensions: Diameter 300mm, height 355mm
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance
*The pressure drop is small
*Cold start performance is good, low light-off temperature, high conversion efficiency
Monolith catalysts Advantages:
*High specific surface area: ensure exhaust gas could contact weigh catalyst enough.
*Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it is no waste for too thick coating.
*Warm up characters: ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine .
*Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine .
*High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
*Perfect assembly: substrates are parts of exhaust ; perfect appearance and exact dimension could ensure assembly perfect.
| Items | Parameters | |
|
|
≥ 90% | |
|
Coefficient of Thermal Expansion |
≤ 1.2 × 10-6/ ° C | |
|
Thermal Stability |
3 times | |
| Soften Temperature | ≥ 1400 ° C | |
| Water Absorption | 23-25% | |
| Bulk Density | 0.40-0.50Kg/L | |
| Tolerance of outside dimensions | ± 1% | |
| Compression Strength | Lengthways | ≥ 15MPa |
| Horizontal | ≥ 3MPa | |
| Wall thickness | 100 CPSI | 0.43 mm |
| 200 CPSI | 0.32 mm | |
| 300 CPSI | 0.30 mm | |
| 400 CPSI | 0.18 mm | |
| 600 CPSI | 0.15 mm | |
