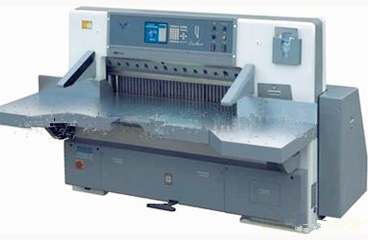

Hydraumatic Paper Cutting Machine

FOB Price:	8,000.00 - 50,000.00 USD/Set
Supply Ability:	30 Set/Sets per Year
Shipping:	shipped in 40 days after payment.
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	Plastic film on machine with/without wooden case.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Certification: ISO9001
Brand Name: QUNTUO
Computerized: Yes
Type: paper cutting machine
Condition: New
product name: Hydraumatic Paper Cutting Machine

Specifications

---Stored Program Control with Double hydraulic system and Dual system--

The cutting system adopts the high wearable worm wheel gear reducer. Friction clutch is controlled through hydraulic system so as to achieve a wide range of cutting pressure adjustment. The paper's pressing pressure can be adjusted from 200N to 55000N, which can ensure the cutting quality. The cutting working is operated by synchronous button by double hands, with infrared control. And the machine is installed with safe devices such as electronic knife lock and single recycle cutting. It has features of low noise, large cutting power, high precision, sturdy and durable, safe and reliable. Customers can choose the electric appliance from France,Germany,Japanand high speed ball screw fromTaiwan, all these machines are according to European Hydraulic system safety certificate.

Technical Parameters

Model	1620	1370	1300	1500
Max cutting width(cm)	162	137	130	115
Max cutting length(cm)	165	145	135	116
Max cutting height(cm)	16.5	16.5	16.5	16.5
Max paper pressure(N)	22000	45000	40000	40000
Cutting speed(cycles/min)	45	45	45	45
Cutting motor power(KW)	5.5	4	4	4
Sending paper motor power(KW)	0.75	0.75(K.KH)/0.55(X,KW)
Air pump motor power(KW)	1.1	0.75	0.75	0.75
Net weight Machine(KG)	5500	4500	4300	4000
Boundary dimension *(LWH)(cm)*	315296171	290289171	280282171	261267165
Packing dimension *(LWH)(cm)*	337157220	302157200	287157200	260157200
