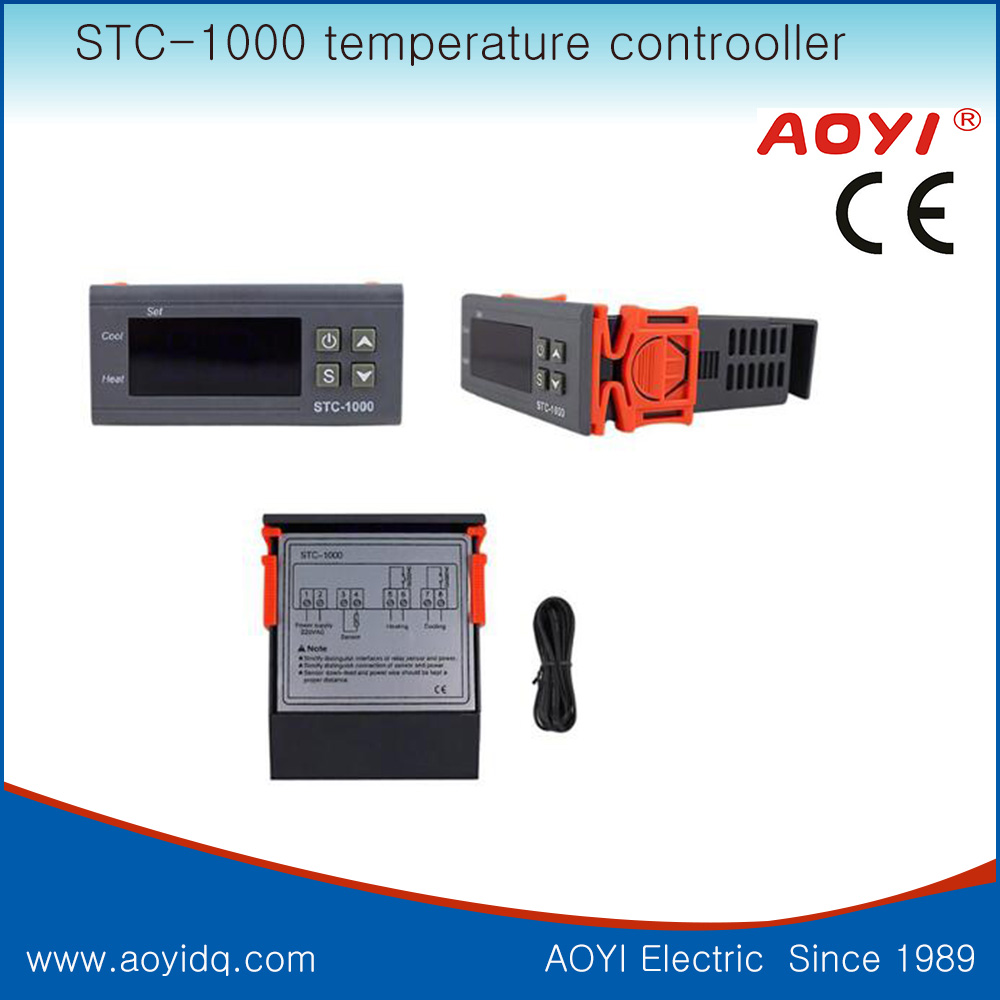

110V Mini STC-1000 All-purpose digital Temperature Controller With Sensor

FOB Price:	8.69 - 10.00 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	express, air or ship
Payment Terms:	L/C, T/T, Western Union, Other, paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	one pieces each box, 100 pieces each carton.

Quick Details

Temperature range: -50 to 50 degree
Accuracy: 0.1 degree
Theory: Temperature Controller
Usage: Industrial
Model Number: STC-1000 110V
Brand Name: YK
Features: Universal
Material: Plastic + aluminum alloy
Backlight: red
working voltage: AC 110V or AC 220V

Specifications

A mini digital temperature controller. With large and clear LCD display for better readability. Wide temperature measuring range.

Temperature calibration function. Delay protection function. All parameters can be set to default setting after short circuit. Used for domestic freezer,

water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.

Technical Paremeters
Parameters:

Temperature measuring and controlling range: -50~99°C
Relay contact capacity: Cool(10A or 16A/250VAC); Heat(10A or 16A/250VAC)
Power options: 220VAC, 110VAC, 12VAC/DC, 24VAC/DC
Input: 1 NTC sensor; sensor wire: 2m(standard)
Accuracy: ±1°C(-50~70°C); Resolution: 0.1°C
Power consumption: ≤3W
Sensor: NTC sensor (1PC)
Sensor error delay: 1 minute
Front panel size: 75×34.5(mm), Product size: 75×34.5×85(mm)
Ambient temperature: 0~60°C
Relative humidity: 20~85% (No condensate)
Storage temperature: -30~75°C

Applications:

Refrigeration industry(freezers, refrigerators, , Cold stores, cold chain, iceboxes, cooling towers, water coolers, oil coolers, cold water chillers, water chilling units etc.)
HVAC industry (Heating Ventilation Air Conditioning)
Pet industrial: Aquariums, fish tanks, terrariums, seafood machines, Vivariums, Paludariums, Incubators etc.
Medical thermostatic equipment (for blood, drugs, Pharmaceutical etc.)
Food processing (Brewing, Abattoirs etc.), Food Wholesale, Food Retail (Hypermarkets, Supermarkets, Convenience Stores, Food Shops, Charcuteries, Delicatessens etc.)
Solar water-heating system central controller
Sauna room, foot bath, foot sauna, foot massager etc.
Wine production, wine cabinet, display cabinet etc.
Catering (Hotels, Restaurants, etc.)
Agriculture
Automobile
Photography
Process control
Laboratory, Chemical
Greenhouses, cultivating-houses
Ice-skating rinks
Energy management
Other industries need temperature measuring and controlling
