Anchor % mooring Winch Windlass

FOB Price:	15,000.00 - 15,000,000.00 USD/Set
Supply Ability:	200 Set/Sets per Year
Shipping:	40-60 Days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

High Speed Electric Winch

Price:1.00-10,000.00 USD/Set

Min. Order:1 Set
Wire rope winch applications and instruction

Price:

Min. Order:
skidding winch/forestry winch

Price:

Min. Order:
Air Winch

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	According to customer's request.

Specifications

Technical parameter

Model	Rated	Rated	Drum	Braking	Motor	Drum capacity(mm x m)			Weight
	pull	speed	capacity	force	power	Drum capacity(mm x m)			(T)
	(KN)	(m/min)	(mm x m)	(KN)	(KW)	Length	Width	Height
EL-20	20	12	15x200	60	11	1800	1150	1825	2.5
EL-30	30	12	16x200	90	15	1950	1200	1900	3
EL-50	50	12	22x220	150	22	2050	1200	2000	3.5
EL-80	80	12	28x220	240	37	2175	1250	2100	4
EL-100	100	12	30x220	300	45	2320	1285	2175	5
EL-125	125	12	32x220	375	55	2385	1325	2250	5.5
EL-150	150	12	36x220	450	75	2500	1465	2400	6
EL-200	200	10	39.5x350	600	75	2600	1670	2625	9
EL-250	250	10	43x450	750	90	2850	1800	2900	12.5
EL-320	320	8	47x550	960	90	3050	1975	3100	18
EL-400	400	8	52x600	1000	110	3375	2050	3400	22
EL-500	500	9	56x600	750	180	4750	2800	3850	25

Brief introduction

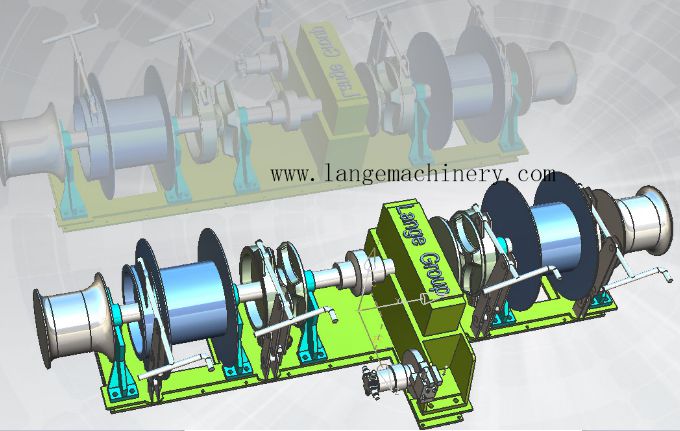

Anchor and mooring winch is a combined multi-function winch, which can be used as anchor winch, also can
be used as mooring winch. So the winch has gypsy wheel for anchor chain, it also has drum for wire rope.
The anchor and mooring winch is widely used on different kinds of boat for anchoring and mooring.

Our factory can be customized design electric anchor mooring winch,hydraulic anchor mooring winch,diesel
anchor mooring winch according to different clients' specific requirements and all marine winch have passed
BV,CE,ABS,DNV,CCS,RINA,CUTR,etc.certificates.
