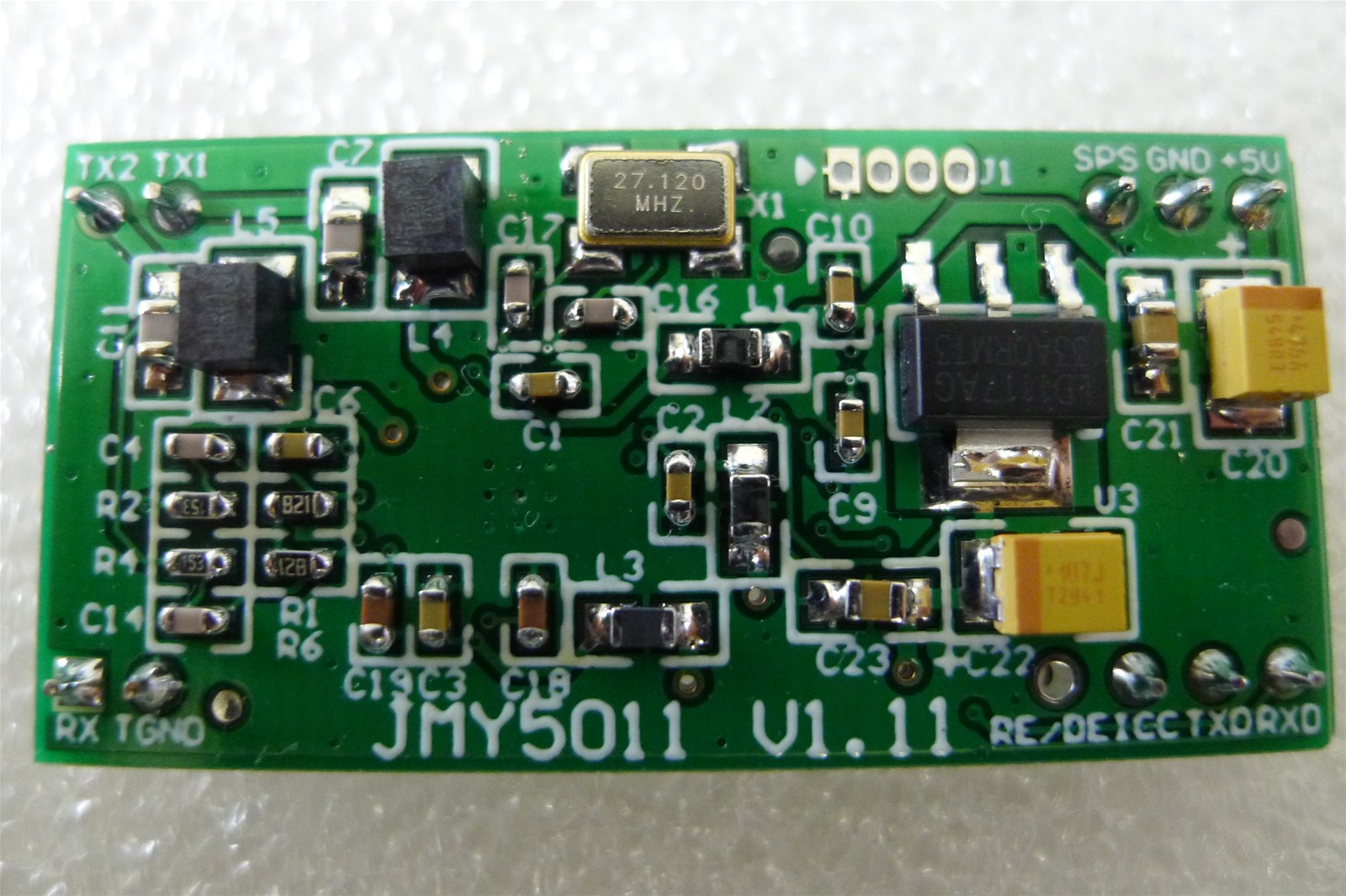

JMY5011 HF 13.56MHz RFID Reader and Writer Modules

FOB Price:	28.33 USD/Piece
Supply Ability:	10,000 Piece/Pieces per Month
Shipping:	DHL or TNT
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	BOX/CTN

Quick Details

Model Number: JMY5011H

Specifications

? PCD model: NXP CL RC663
? Working frequency: 13.56MHz
? Card supported: see: module function configuration table
? Anti collision ability: Full function anti collision; be able to process multi-cards; be able to set operate single card only.
? Auto detecting card: Supported, default OFF. The default state can be set.
? Power supply: DC 5V (±0.5V)
? Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
? Communication rate:
IIC: Max.200Kbps
UART: 19200bps / 9600bps / 38400bps / 57600bps / 115200bps
? Max. command length:
JCP02 252 Bytes;
JCP03 510 Bytes;
JCP04 253 Bytes;
JCP05 510 Bytes;
? Interface level: 3.3V (TTL level; 5V tolerance)
? Power consumption: 70mA
? Operating distance: 100mm (depending on card and antenna design)
? Dimension: 21 mm*42mm
? Weight: About 15g
? Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
? Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
? ISP: Supported
? RoHS: Compliant
