SU4300 Series Noise Source
| Supply Ability: | 10,000 Set/Sets per Month |
|---|---|
| Shipping: | Beijing Airport, Xingang Port |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Carton package |
Quick Details
- Brand Name: Suin
Specifications

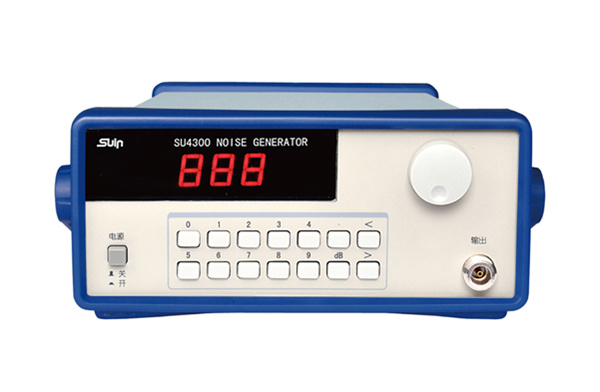

SU4300 Series Noise Source
In system of telecommunication, to ensure the stable working of device, the MF (Medium-Frequency) Noise Source is needed, which is used to simulate the satellite noise, so as to confirm a suitable SNR (Signal to Noise Ratio) for measuring the error rate to demodulator
FEATURES
Simulate the signal noise in the satellite communication
Simulate the signal noise in microwave communication and scattering communication
Gauss white noise generated by thermal noise of amplifier
|
|
|
|
SPECIFICATIONS
|
SU4300 |
SU4301 |
SU4302 |
SU4304 |
|
|
Output |
||||
|
Max. Output Noise |
≥ 0 dBm (400MHz Bandwidth) |
≥ -2.0 dBm (700MHz Bandwidth) |
≥-1.0 dBm (1500MHz Bandwidth) |
≥10.0 dBm (2390MHz Bandwidth) |
|
Noise Bandwidt |
15MHz ~ 415MHz |
800MHz ~ 1500MHz |
300MHz ~ 1800MHz |
10.0MHz ~ 2.4GHz |
|
Output Step |
0.1 dB |
1.0 dB |
0.5 dB |
0.5 dB |
|
Flatness |
≤2.0 dB (20MHz ~ 400MHz per 40MHz bandwidth) |
≤2.0 dB (800MHz ~ 1500MHz per 40MHz bandwidth) |
<3.0 dB (300MHz ~ 1000MHz) <4.5 dB (1000MHz ~ 1800MHz) |
±2.0 dB (20MHz ~ 200MHz per 40MHz bandwidth) ±2.5 dB (200MHz ~ 2.4GHz per 40MHz bandwidth) |
|
Output Impedance |
50Ω |
50Ω |
50Ω |
50Ω |
|
General Characteristics |
||||
|
Power |
AC 220V |
|||
|
Dimension & Weight |
254×103×340 mm, Approx.2.5 kg |
|||
