Shijiazhuang Suin Instruments Co., Ltd.
China Manufacturer with main products: Function Generators, Arbitrary Waveform Generators, Pulse/Pattern Generators, Spectrum Analyzers, Digital Multimeters, Universal Frequency... |
Millivolt Meter Power Meter Hot Sale
| Supply Ability: | 10,000 Set(s) per Month |
|---|---|
| Shipping: | Beijing Airport, Xingang Port |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Carton package |
Quick Details
- Output Current: 1
- Output Power: 1
- Output Voltage: 1
- Input Voltage: 1
- Brand Name: suin
Specifications

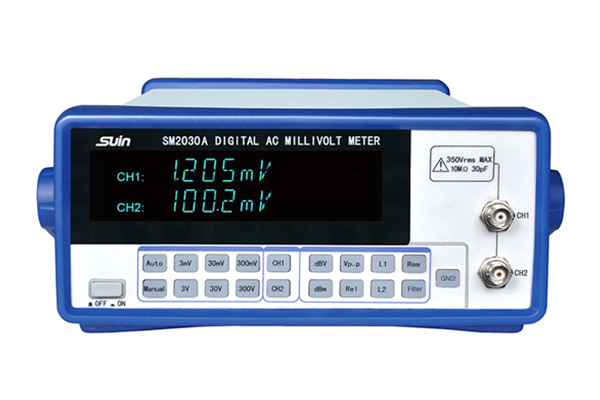

SM2000A Serial AC Millivolt Meter
SM2030A is suitable for measuring of RMS value
Voltage of Sine waveform that the frequency
Range is 5Hz~3MHz (5Hz~5MHz for SM2050A)
. They all have the switch function between automatic
and manual and automatic decimal positioning,
as well as three-digit or four-digit display.
Spectrum Analyzer Supplier |
Spectrum Analyzers China |
FEATURES
VFD Two Display, Dual Independent Channels
Auto/Manual Ranging can be selected
Multiple display result with different units
High Frequency Range from 5Hz to 5MHz
Standard Interface RS-232
SPECIFICATIONS |
||
SM2030A |
SM2050A | |
Frequency Range |
5Hz ~ 3MHz |
5Hz ~ 5MHz |
Measurement Range | ||
AC Voltage |
50V ~ 300V | |
Scale |
3mV, 30mV, 300mV, 3V, 30V, 300V | |
dBV |
-86dBV ~ 50dBV(0dBV=1V) | |
dBm |
-83dBm ~ 52dBm(0dBm=1mW 600) | |
Vpp |
140V ~ 850V | |
Voltage Measurement Error | ||
5Hz ~ 100Hz |
2.5% reading 0.8% range | |
>100Hz ~ 500kHz |
1.5% reading 0.5% range | |
>500kHz ~ 2MHz |
2.0% reading 1.0% range | |
>2MHz ~ 3MHz |
3.0% reading 1.0% range | |
>3MHz ~ 5MHz |
4.0% reading 2.0% range | |
Resolution | ||
Range |
3 1/2 digits Display |
4 1/2 digits Display |
3mV |
0.001mV |
0.0001mV |
30mV |
0.01mV |
0.001mV |
300mV |
0.1mV |
0.01mV |
3V |
0.001V |
0.0001V |
30V |
0.01V |
0.001V |
300V |
0.1V |
0.01V |
Damage Voltage | ||
3V ~ 300V |
350Vrms (5Hz ~ 5MHz) | |
3mV ~ 300mV |
350Vrms (5Hz ~ 1kHz) | |
35Vrms (1kHz ~ 10kHz) | ||
10Vrms (10kHz ~ 5MHz) | ||
General Characteristics | ||
Power |
AC220(10%)V, 50 (15%)Hz, < 20VA | |
Interface |
RS-232 | |
Display |
VFD display | |
Dimension & Weight |
260106375 mm, Approx.3.0 kg | |
