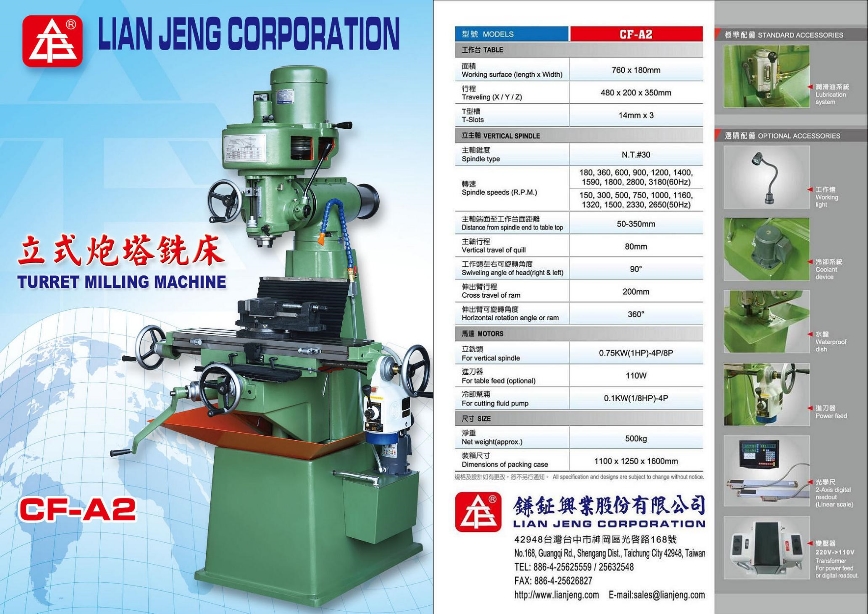

Small Vertical Milling Machine CF-A2

FOB Price:	1.00 - 2.00 USD/Set

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Taiwan

Quick Details

Models (CF-A2)
Table
Working surface(length*Width)	760x180mm
Traveling (X / Y / Z)	480x200x350mm
T-Slots	16mmx3
VERTICAL SPINDLE
Spindle nose	N.T.#30
Spindle speeds (R.P.M.)	180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz)
Spindle speeds (R.P.M.)	150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz)
Distance from spindle end to table top	50-350mm
Vertical travel of quill	80mm
Swiveling angle of head(right & left)	90°
Cross travel of RAM	180mm
Horizontal rotation angle or RAM	360°
Motors
for vertical spindle	0.75KW(1HP)-4P/8P
for table feed(optional)	0.1KW(1HP)-4P
for cutting fluid pump	0.1KW(1/8HP)-4P
Size
Net weight(approx.)	500kg
Dimensions of packing case	1300x1300x1600mm
