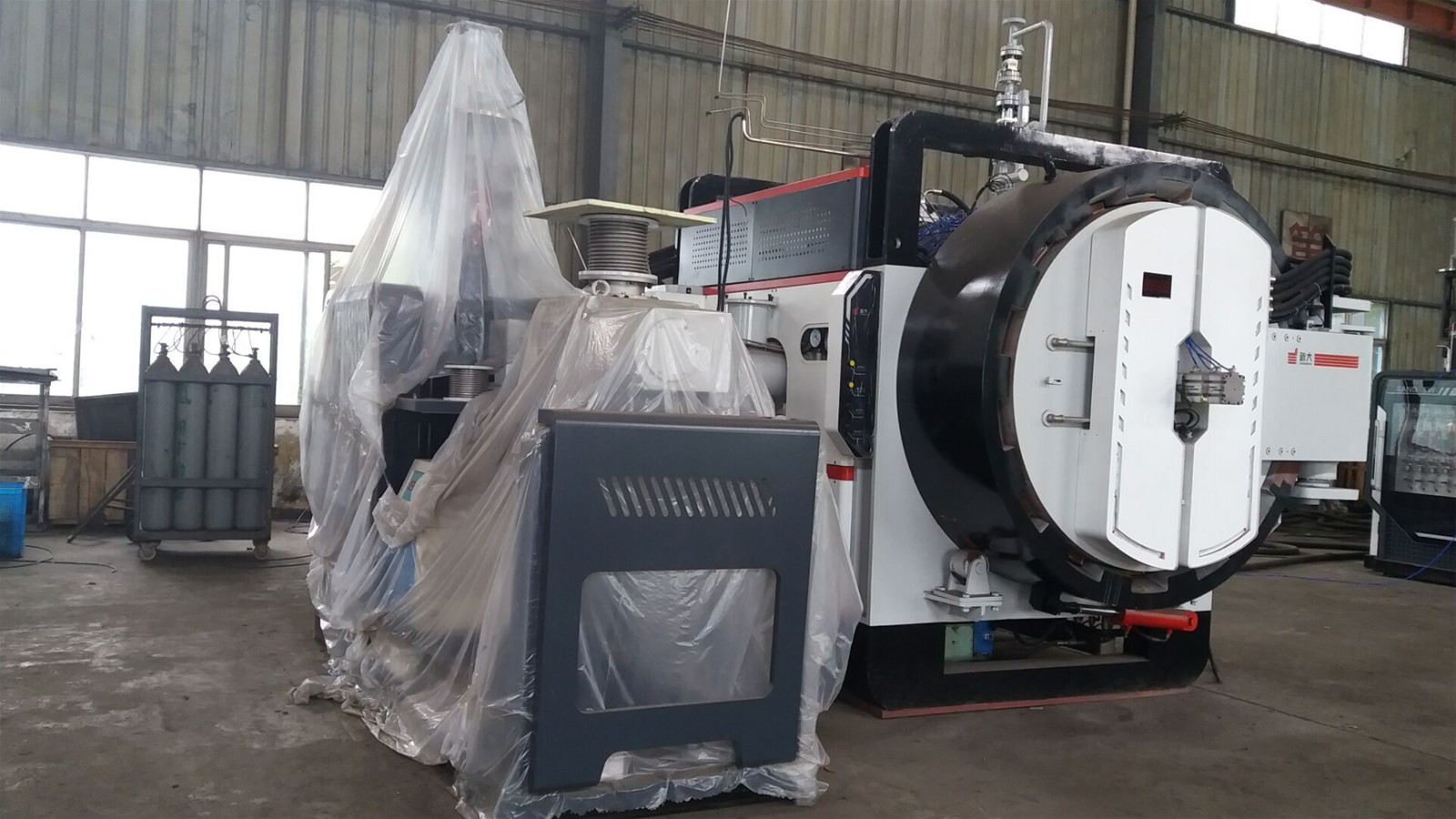

Good price and high performance induction type vacuum pressure sintering furnace

FOB Price:	30,305.00 - 75,760.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	by sea full container loading
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	standard export packing by sea

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE & ISO
Weight: regular
Dimension(L*W*H): 300*400*1200mm
Power(W): 330kw
Voltage: 380v input 50Hz 3 phase 5 wires
Model Number: NT-ZKSJ-330-1
Brand Name: no brand
Usage: Sintering Furnace
Type: Induction Furnace
Condition: New
Model no: NT-ZKSJ-330-1
Power: 330KW
voltage: 380v 3 phase 50Hz input
Max. temperature: 3000 degree celsius
Working size: 300*400*1200mm
Ultimate vacuum: less than 2pa

Specifications

The purpose of the vacuum pressure sintering furnace is manufacturing of cemented carbide tools by the removal of adhesive from pressed forms, solid-phase sintering in vacuum and protective atmosphere (argon, hydrogen) and sintering in the presence of liquid phase with application of pressure.

●:

: automatic lock tight

2.Furnace shell: carbon steel

3.Furnace boiler: hard composite felt

4.Heater material: Static pressure graphite

5.Furnace body: horizontal type

6.Gas circuit control: automatic value

7.Vacuum pumps and vacuum gauges: import Leybold Germany

8.Skip: rolling forklift

9.Operation panel: Siemens IPC

10.PLC: Siemens

11.Temperature measuring type: thermocouple measuring in the range of the indoor temperature to 1650℃

12.Recorder: paperless recorder

13.Electrical element: ABB

14. Heating type: resistance heating

●:

3.Vacuum sintering furnace has flexible vacuum pumping, vacuum sintering, micro positive pressure sintering, partial pressure sintering, micro positive degreasing, and other functions;

4.Adopting the most advanced heat insulation structure and materials, good heat insulation performance of furnace liner, less heat, more than traditional design energy saving 25%.

5.Adopting touch screen operation, PLC centralized control, simple operation, high reliability.

6.Vacuum sintering furnace has the alarm function of ultra-temperature and ultra-voltage, mechanical and automatic for pressure protection action, interlocking functions, high safety equipment.

7.Vacuum sintering furnace has remote operation, remote fault diagnosis and remote software upgrades and other function.

●Technology parameters

Parameter/model		NT-ZKSJ-330-2
Working size W×H×L(mm)	300×400×1200	3003001200
Max.loading weight(kg)	500	500
(℃)	1600	1600
Max. working temperature(℃)	1550	1550
Temperature control type	3 zones control	3 zones control
Temperature uniformity(℃)	≤±5℃	≤±5℃
Hc deviation	≤ ± 0.3 kA/m.	≤ ± 0.3 kA/m.
Com deviation	≤ ± 0.2%	≤ ± 0.2%
Heating power(kW)	330	330
Ultimate vacuum(Pa)	≤2pa	≤2pa
Max. design pressure	6.0Mpa	6.0Mpa
Max. working pressure	5.80Mpa	5.80Mpa
Leak rate(Pa/h)	1pa/h(24h average)	1pa/h(24h average)
