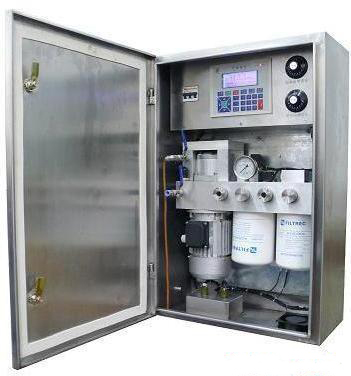

ONLINE LOAD TAP CHANGER OIL PURIFIER

FOB Price:	2,000.00 - 5,000.00 USD/Set
Supply Ability:	100 Set/Sets per Year
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 100KG
Dimension(L*W*H): OPTION
Power(W): 10kw
Voltage: option
Usage: Transformer Oil
Model Number: TCF
Brand Name: Acore
Working Pressure: 0.4Mpa
Flow: 600L/hr
Condition: New

Specifications

TCF-Series on-line load tap changer oil purifier is designed and developed to meet the electric utility industry's need of reducing the overall operational and maintenance costs of load tap changers and increasing system reliability. TCF is installed on load tap changer for the continuous online removal of carbon, water and metallic particles, these contaminants are present in tap Changers due to arcing contacts during the transfer of loads from tap-to-tap in the tap changer compartments.

Features

◆ Flow rates ranging from 0 to 15 liters per min with operating pressures up to 50 PSI

◆ Positive displacement pump, two stages high precision filters and pressure monitoring

◆ Automatic PLC controlling system combines with fault detection and diagnosis systems, temperature and humidity control and part of the remote monitoring system components.

◆ Pressure switch turns the system off when the filters is plugged and automatic alarm.

◆ Stainless steel 304 body and piping system, all ball valves are constructed of brass.

◆ Automatic Safety Shut-Down & Isolation if a leak is detected

◆ Two oil sample valves for quick and convenient oil analysis
