Shenzhen Alercctv Technology Co., Ltd.
China Manufacturer with main products: Vehicle Camera, Car Camera, Mobile DVR, Car DVR, GPS Tracker, ADAS |

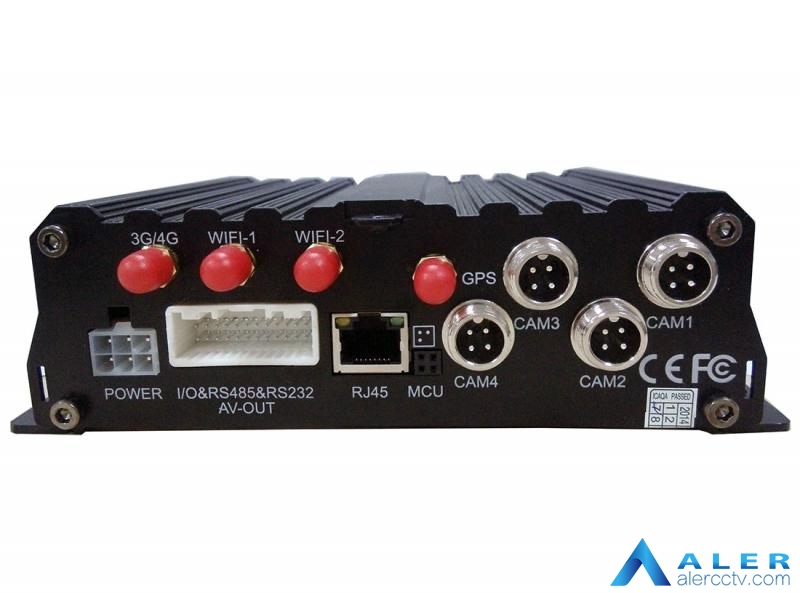

HD SD Mobile DVR in South America
| Supply Ability: | 1,000 Piece/Pieces per Month |
|---|---|
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Model Number: AH100
- Brand Name: Alercctv
Specifications
Product Introduction
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker
truck, escort car etc. Operated with CMS (Central Monitoring Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio
monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, car alarms, driving route record, Text to Speech, PTZ control, anti fuel theft, anti hijack, even as car black box for car
crash recorder, real time car monitoring via mobile phones of iPhone, Android, iPad system.
| Function | AH100-HD | |
| System | Language | English / Chinese |
| Operation Interface | Graphical User Interface (OSD menu) | |
| Password Security | 2 Levels: Administrator or User | |
| Video | Video Input |
Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher) |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) | |
| Video Display | Single picture, 1~5 pictures | |
| Signal System | PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) | |
| Image Compression | H.264 Main profile | |
| Audio | Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) | |
| Recording Format | Synchronized A/V recording | |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P optional |
| Video Coding | ISO14496-10 Industry Standard | |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, | |
| HD1/D1: 2048Kbps ~ 400Kbps, | ||
| 960H: 2048Kbps ~ 400Kbps, | ||
| 720P:4096Kbps ~ 400Kbps | ||
| Select from 8 Levels of Video Image Quality ranging from 1 (Lowest) to 8 (Highest) | ||
| Audio Bit Rate | 40Kbps | |
| Storage | 2 SD Card Slots, Up to 128GB each, Class 10 or higher | |
| Alarm | Alarm Input | 8 Channels, Select trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 1 Channel, 12V output | |
| Communication Ports | RS485 | 1 Port for communication or data usage |
| RS232 | 2 Port for communication or data usage | |
| RJ45 Network | 1 Port of RJ45. For connection to an IP camera with maximun of 1080P | |
| Wireless Communication* | 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional internal module |
| 4G* | (TDD-LTE / FDD-LTE) optional internal module to match local cellular carrier | |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n (2.4 / 5.8 Ghz) option | |
| GPS* | Int'l Standard GPS* | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges for X, Y and Z coordinates |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| CMS /IVMS | Wireless (requires Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. | |
| Software Upgrade | Local or Remotely | Upgrade through SD card or remotely via CMS/IVMS platform |
| Voltage Input | +8～+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage. |
| Voltage Output | 12V | 12V(+/-0.2V), Max 3A |
| ACC Detection | ≤4V | Power-off |
| ≥5V | Power-on | |
| Video Input Resistance | 75Ω | 75Ω |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | <1V | Low voltage trigger |
| >5V | High voltage trigger | |
| Operational Temperature | ='[Specification Sheets All Products.xls]All products'!$D$18-25℃ ~ 75℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | 170x142x50mm | Including Security Cover 170x187x50mm |
Order model
The product can Built-in GPS module,3G/4G module,WiFi module,you can choose a model according to your request.
