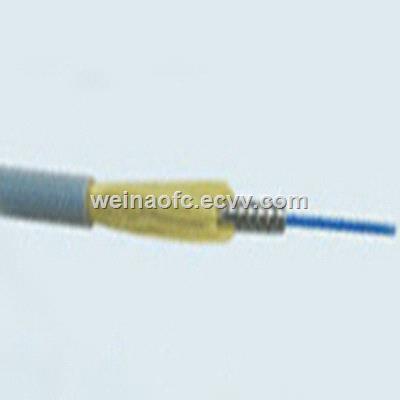

Optical Fiber Armored Indoor Cable 4,6,8,12 Cores Multimode with Braiding Strength
| Supply Ability: | 300,000 Meter(s) per Month |
|---|---|
| Shipping: | As request |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard export package box. |
Quick Details
- Brand Name: GoodFtth
- Wavelength: 850,1300nm
- Data Rate: less than 0.3dB
- warranty: 5 years
- Connector: SC,FC,LC,ST,MU
- Model Number: WN-CA-00041
- cable jacket: aqua
- cable outer diameter: 0.9mm
Specifications
Optical Fiber Armored Indoor Cable 4,6,8,12 Cores Multimode with Braiding Strength
Feature:
Good mechanical and environmental characteristics;
Stamp& Rodent resistant;
Flame retardant characteristics;
Big capacity of data transmission;
Meet various requirements& standards.
Application:
for pigtails or patch cords;
for indoor optical communication equipment.
Specification:
| No. | Item | Singlemode | Multimode | ||
| 1 | Outer Diameter | 3.0mm | |||
| 2 | Standard Color | Blue | Gray | ||
| 3 | Cable Weight | 17.5kg/km | |||
| 4 | Operating Temperature | -20+70 | |||
| 5 | Storage Temperature | -20+75 | |||
| 6 | Tensile Strength | Short Term | 150N | ||
| Long Term | 80N | ||||
| 7 | Crush Resistent Strength | Short Term | 5000N/100MM | ||
| Long Term | 3000N/100MM | ||||
| 8 | Attenuation | 1310nm | 0.35dB/km | 850nm | 3.0dB/km |
| 1550nm | 0.25dB/km | 1300nm | 1.0dB/km | ||
| 9 | Bending Radius | Dynamic | 20*D | ||
| Static | 10*D | ||||
