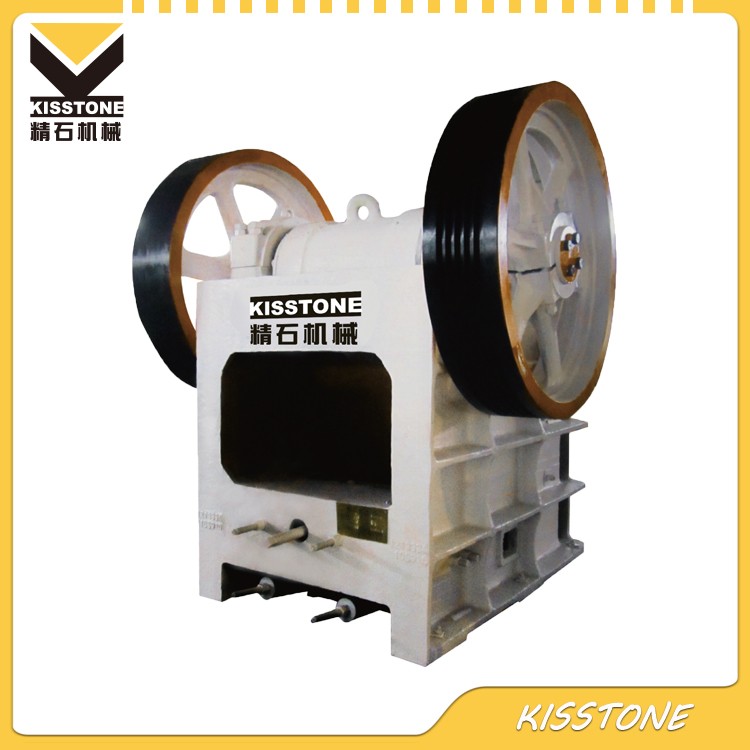

Wholesale price high crushing rate stone jaw crusher

FOB Price:	10,000.00 - 200,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	25 days after received the deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export containers, bare main machine, motors and small parts are packed in wooden cases.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 Months
Certification: CE ISO BV
Weight: 25t
Dimension(L*W*H): 2531*2420*2783mm
Model Number: PE750*1060
Brand Name: KISSTONE
Capacity(t/h): 72-140tph
Power(W): 110kw
Motor Type: AC Motor
Application: Mining Quarry Road Building Construction
Type: Jaw Crusher
Condition: New
Product name: Jaw crusher
Jaw crusher factory: Zming
Max Feed Size: 630mm
Discharge size: 80-180mm
Eccentric shaft size: 250r/min
Material: Cast Steel
Spare parts supply: 12 Months Guarantee
OEM: YES
Test&Installation: Under Engineer's Guide
After sale Service: Life-long Service

Specifications

Wholesale price high crushing rate stone jaw crusher

Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece.

Wholesale price high crushing rate stone jaw crusher

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Wholesale price high crushing rate stone jaw crusher

As the most technology mature crusher of Kisstone Mechanics, PE series jaw crusher has a high crushing ratio up to 4-6, and its products are well-distributed, so it can be widely used in the following areas:

1.It is used for coarse crushing of limestone, rocks, river pebble, basalt, granite, quartz stone, tailings, slag and other minerals, as well as primary crushing of stone production line and sand making line.

2.It is applicable for coarse crushing in front grinding process in mineral industry, and other fields like building material, metallurgy, chemical, mining, refractory materials, cement, abrasive, etc.

Wholesale price high crushing rate stone jaw crusher

3.It is applied to stone crushing in field of infrastructure project, water conservancy and hydropower, highway, high-speed railway, passenger transport line, bridge, airport runway, municipal engineering and high-rise building.
